Turn tables

TURN 100, TURN 250

Versatile use for orbital welding assemblies

With the turn tables TURN 100 and TURN 250 two high-quality tools are available, which round up the palette of the most-known orbital welding tools (open weld heads, closed weld heads, tube-to-tubesheet weld heads). With these tools you are able to weld components, which can not be clamped in one of the above mentioned tools. Each turn table has hollow shafts, which enable the forming of the components, which have to be welded. The turn tables are offered with encoder-engine-gear-unit or with tacho-engine-unit. This enables the operation on welding systems of our competitors.

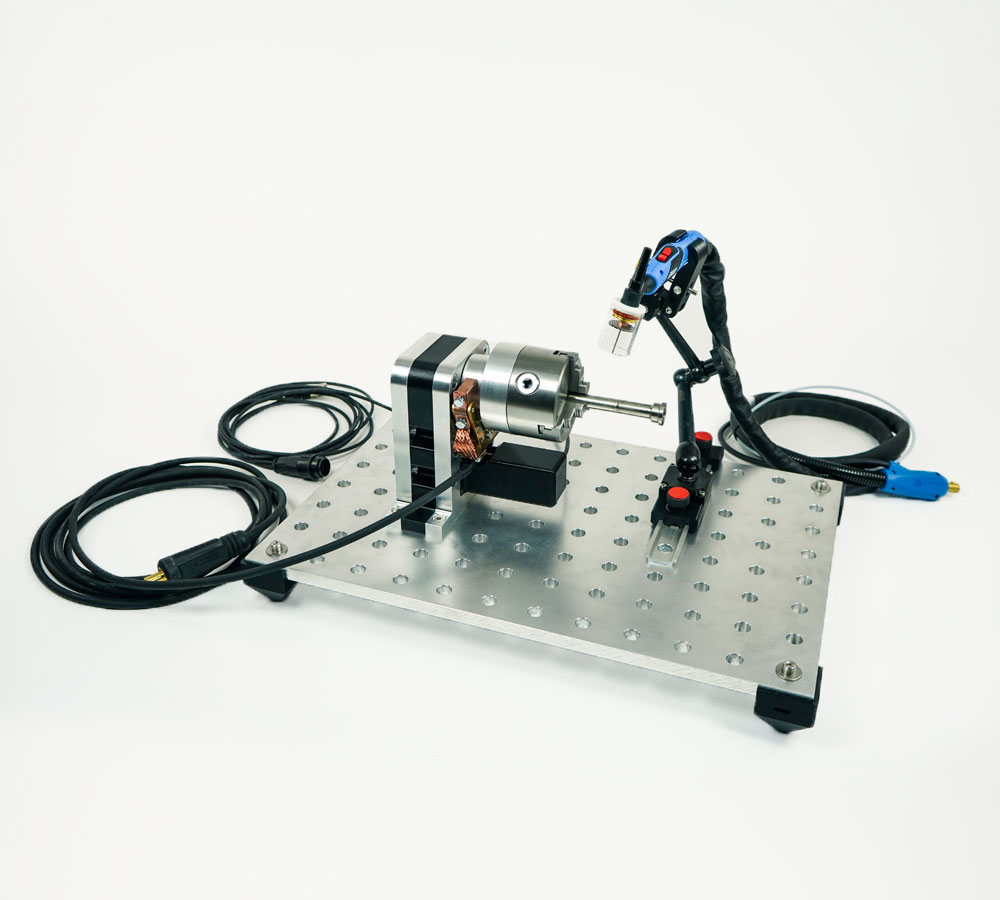

TURN 100

Our TURN 100 turntable may be less well known than our standard orbital welding tools (open welding tongs, closed welding tongs, tube-to-tubesheet weld heads) but they are the perfect addition to our range. They enable you to weld components and assemblies even when the workpieces cannot be clamped in any of the tools referred to above. They feature a hollow shaft for forming the assemblies that you are welding.

  • 100 mm (3.94″) three-jaw chuck with a 16 mm (0.63″) hollow shaft for forming
  • Turntable can be mounted on a model 16 perforated table
  • An infinite number of connection options (pneumatic clamping cylinder, tailstock, linear guide units, etc.)
  • Variable work plate size
  • If necessary, can be mounted on a mobile welding trolley

Delivered with:

  • Turntable
  • Perforated plate
  • Torch holder on 3D articulated arm
  • Linear support with 2 limit stops
  • Article number: TiO-1026
YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

TURN 250

The turn table TURN 250 can be used with pipe OD from 20 mm to 250 mm (0.79″ to 9.84″)
For pipe OD from 20 mm to 250 mm (0.79″ to 9.84″). For the forming a hollow shaft of 70 mm (2.76″) is available.
  • Input voltage: 24 V DC
  • Dimensions L x W x H: 800 x 500 x 480 mm / 31.50 x 19.69 x 18.90 in
  • Weight: 69 kg / 152.12 lbs
