Optimal communication between orbital welding machine and welding head

The rolling system is a tool which enables to operate dimensions from OD 50 mm up to OD 600 mm. Like on each other of our weld heads, this one communicates with our orbital welding machines in real-time.

With the unique construction, gain-conversions and the use of smooth drive belts, it has succeeded to realize the tool in connection to a “normal” orbital welding machine. The parameters “extend” respectively “speed “have been implemented in the software.

Like on our turn tables, the same supports for the adjustment, pivoting disks, wire holders, linear thrust units and hose packages in gas- or water cooled version, can be used.

Rolling system TR 500

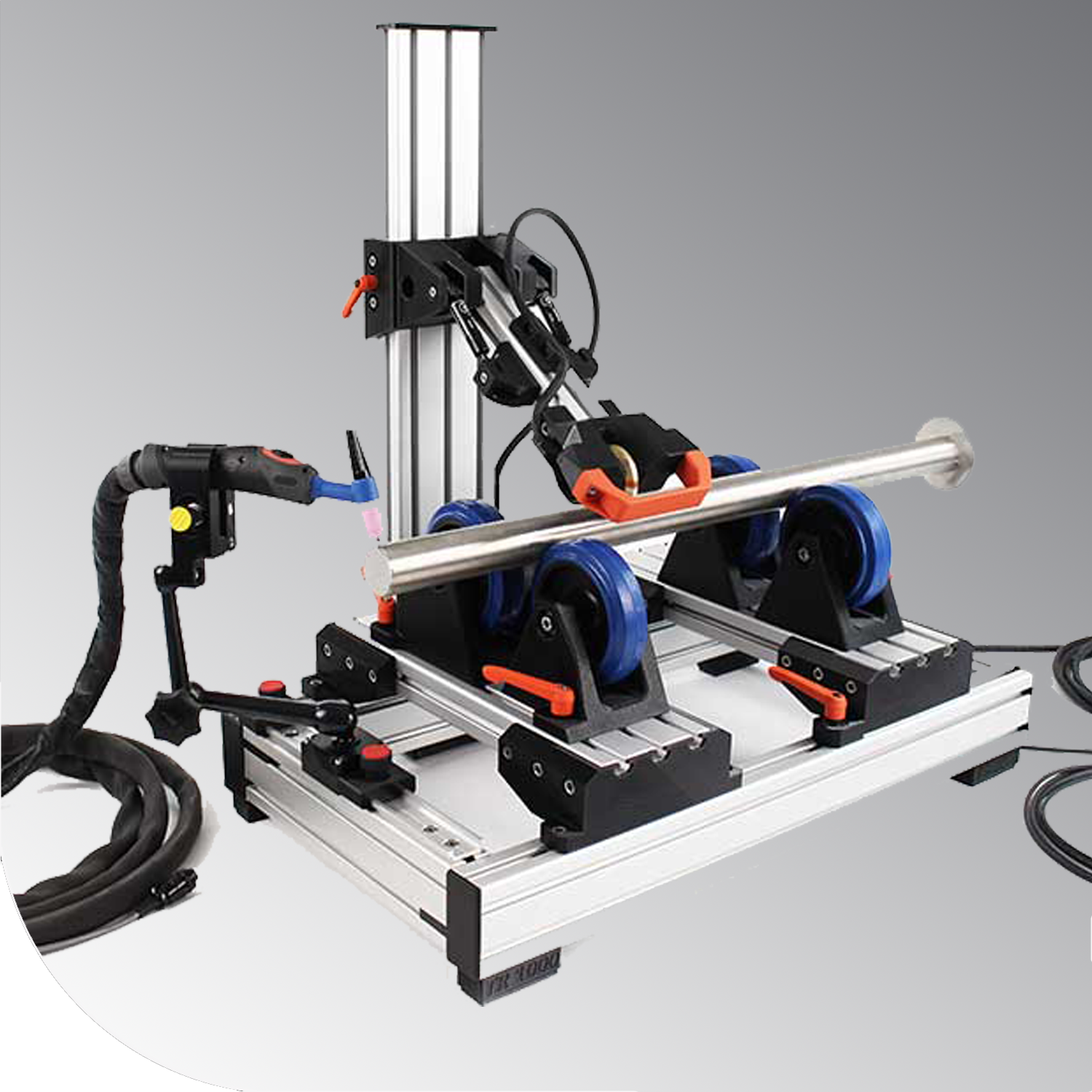

With the rolling system TR 500 connections between tubes with bows, t-pieces, flanges etc. can be executed. Tubes with OD 50 mm up to OD 500 (and more) mm can be gathered without problems.

Due to the unique construction, gain-conversions and the use of smooth drive belts, it has succeeded too realize the tool in connection to a „normal“ welding machine. The parameters “extend” respectively “speed” have been implemented in the software.

Thanks to the use of strong profiles (80 mm x 40 mm), very heavy components can be welded. The standard length is 1500 mm, but it is possible to extend this several times by plugging. Like on our turn tables ,the same supports for the adjustment, pivoting disks, wire holders, linear thrust units and hose packages in gas- or water cooled version, can be used.

DATA //

Connection voltage: 24 V DC
Dimensions L x W x H (mm): 1500 x 700 x 1500
Weight (kg): 130

  • Linear thrust unit with hydraulic arm and 2-way-support
  • Pivoting disk with hydraulic arm and 2-way-support
