Broad product portfolio for every application

The operator has the choice between different, easy operable, open weld heads. With our products we cover an area of application of OD 12 mm up to OD 273 mm. Our weld heads work with a first-class regulated engine and gear, enable many fixing-possibilities of cold wire-holders and can be operated with water- or gas cooled TIG-torches. The weld heads are delivered in a stabile suitcase with high-quality foam-insert.

Our open weld head OWH 76 has an area of application (OD) of 12 – 76 mm

Area of application with clamping jaws (OD) (mm): 10 – 40
Weight (without hose package) (kg): 3,0
Article number: OWH76100
  • Gas cooled hose package, 8000 mm, incl. TIG-torch
  • Water cooled hose package, 8000 mm, incl. TIG-torch
  • Interconnection cable 8 m without cold wire feeder plug
  • Interconnection cable 8 m with cold wire feeder plug
  • Ground cable with terminal, 5000 mm, 16 m2
  • Wide torch holder aluminium
  • Standard torch holder aluminium
  • Matching transport case additionally available
  • Several torch wearing parts (also Pyrex-Jumbo nozzles Made in USA)
  • Special lengths for hose packages, ground- and interconnection cables on demand

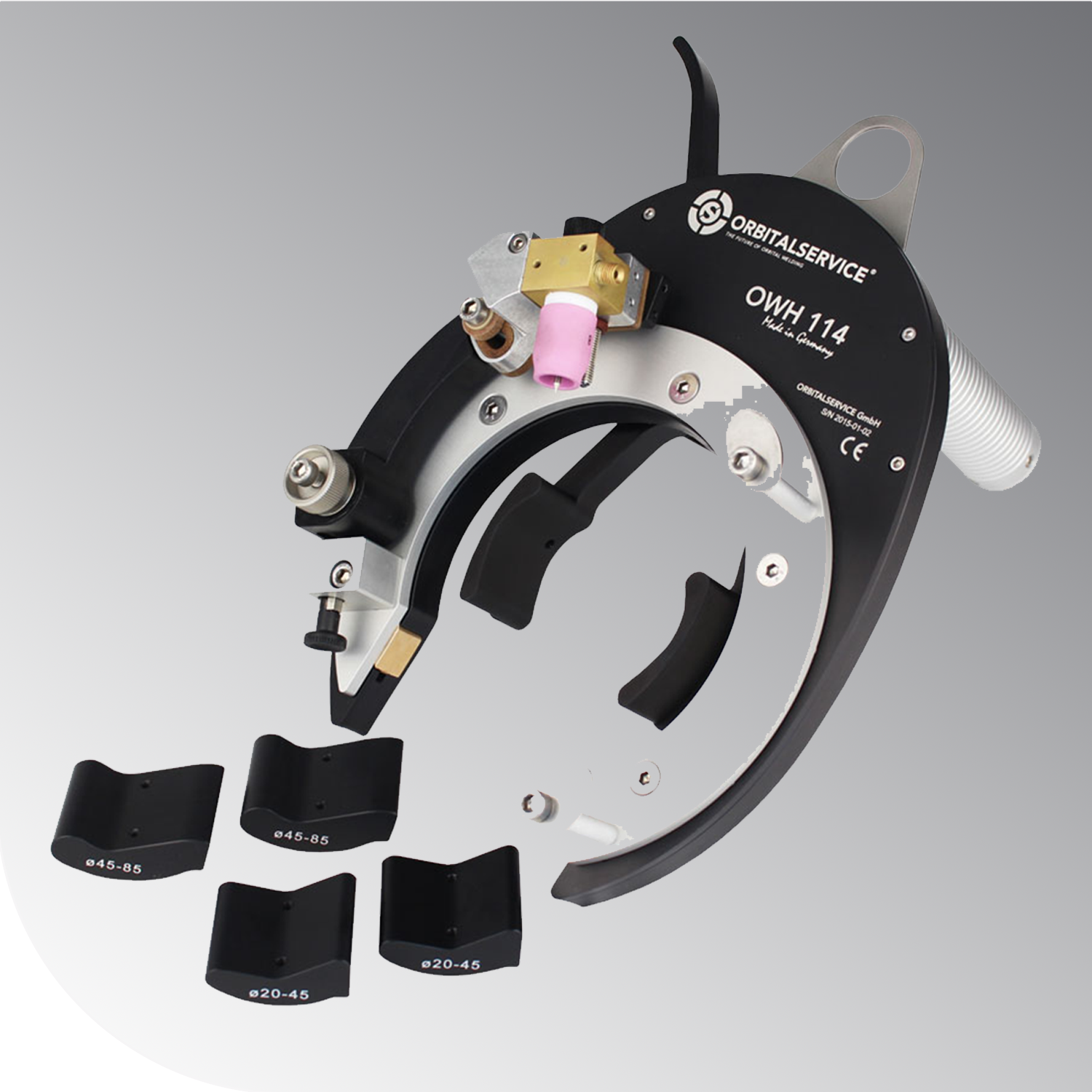

Our open weld head OWH 114 has an area of application (OD) of 15 – 115 mm

Area of application with clamping jaws (OD) (mm): 20 – 50
Weight (without hose package) (kg): 4,5
Article number: OWH114100

  • Gas cooled hose package, 8000 mm, incl. TIG-torch
  • Water cooled hose package, 8000 mm, incl. TIG-torch
  • Interconnection cable 8 m without cold wire feeder plug
  • Interconnection cable 8 m with cold wire feeder plug
  • Ground cable with terminal, 5000 mm, 16 m2
  • Wide torch holder aluminium
  • Standard torch holder aluminium
  • Matching transport case additionally available
  • Several torch wearing parts (also Pyrex-Jumbo nozzles Made in USA)
  • Special lengths for hose packages, ground- and interconnection cables on demand

Our open weld head OWH 168 has an area of application (OD) of 35 – 168,3 mm

Area of application with clamping jaws (OD) (mm): 40 – 80
Weight (without hose package) (kg): 6,5
Article number: OWH168100

  • Gas cooled hose package, 8000 mm, incl. TIG-torch
  • Water cooled hose package, 8000 mm, incl. TIG-torch
  • Interconnection cable 8 m without cold wire feeder plug
  • Interconnection cable 8 m with cold wire feeder plug
  • Ground cable with terminal, 5000 mm, 16 m2
  • Wide torch holder aluminium
  • Standard torch holder aluminium
  • Matching transport case additionally available
  • Several torch wearing parts (also Pyrex-Jumbo nozzles Made in USA)
  • Special lengths for hose packages, ground- and interconnection cables on demand

Our open weld head OWH273 has an area of application (OD) of 88,9 – 273,3 mm

Area of application with clamping jaws (OD) (mm): 88,9 – 273,3
Weight (without hose package) (kg): 15,0
Article number: OWH273100

  • Gas cooled hose package, 8000 mm, incl. TIG-torch
  • Water cooled hose package, 8000 mm, incl. TIG-torch
  • Interconnection cable 8 m without cold wire feeder plug
  • Interconnection cable 8 m with cold wire feeder plug
  • Ground cable with terminal, 5000 mm, 16 m2
  • Wide torch holder aluminium
  • Standard torch holder aluminium
  • Matching transport case additionally available
  • Several torch wearing parts (also Pyrex-Jumbo nozzles Made in USA)
  • Special lengths for hose packages, ground- and interconnection cables on demand

Do you have questions about our products or would you like an individual offer? Please do not hesitate to contact us.
