ORBITALSERVICE®

Tube facers

TF 1.6, TF 4.5

Products

Optimal preparation for perfect results

Tube facers, also called tube machines, are necessary for an edge-free and rectangular weld preparation. In manual welding technology, quality pipe end processing is very imported because of economic reasons. In orbital welding a high quality pipe-end machining is absolutely required from a technical viewpoint as well. We offer you our high quality tube machines TF 1.6 and TF 4.5. The best solution for your pipe ends preparation in orbital welding!

TF1.5-Plangeraet-Tube_Facer

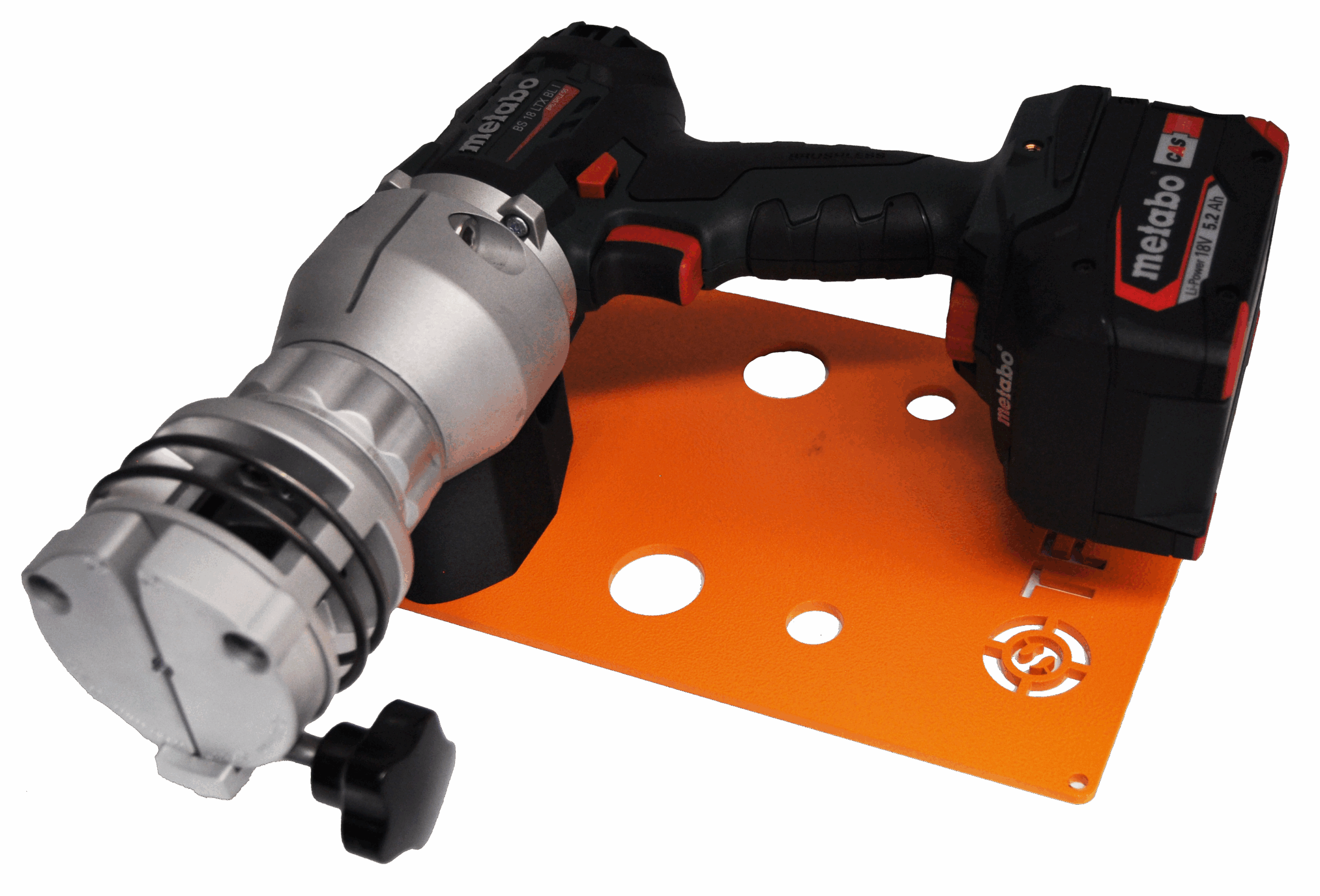

TF 1.6

Range: 3,17 mm to 38,1 mm (0.31’’ to 1.50″)

Additionally a stand for the tube facer 1.6 is available . It can be equipped with a power drill or a battery-operated drill.

  • 2 versions: Electric or Battery-powered
  • Speed-controlled electric motor
  • Range: 3,17 to 38,1 mm (0.31’’ to 1.50’’)
  • Aluminium clamping collars
  • Optional stand
    • Article number: TFStahlhalter
  • Transport box included
  • Dimensions (L x W x H): 290 x 10 x 270 mm / 11.42 x 0.39 x 10.63 in
  • Weight: 3.0 kg / 6.61 lbs (battery version, incl. battery)
  • Article number: TF1.6100

Download

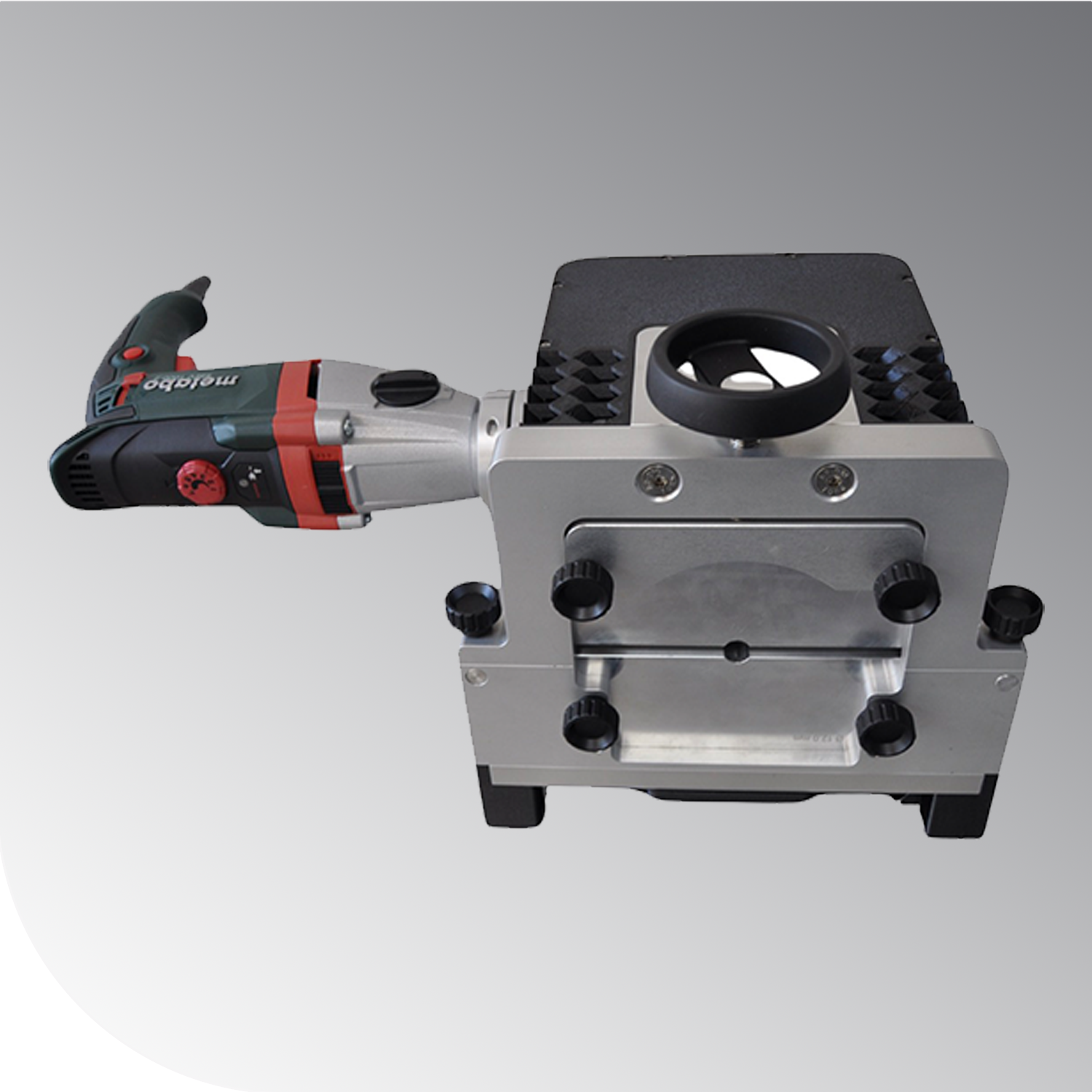

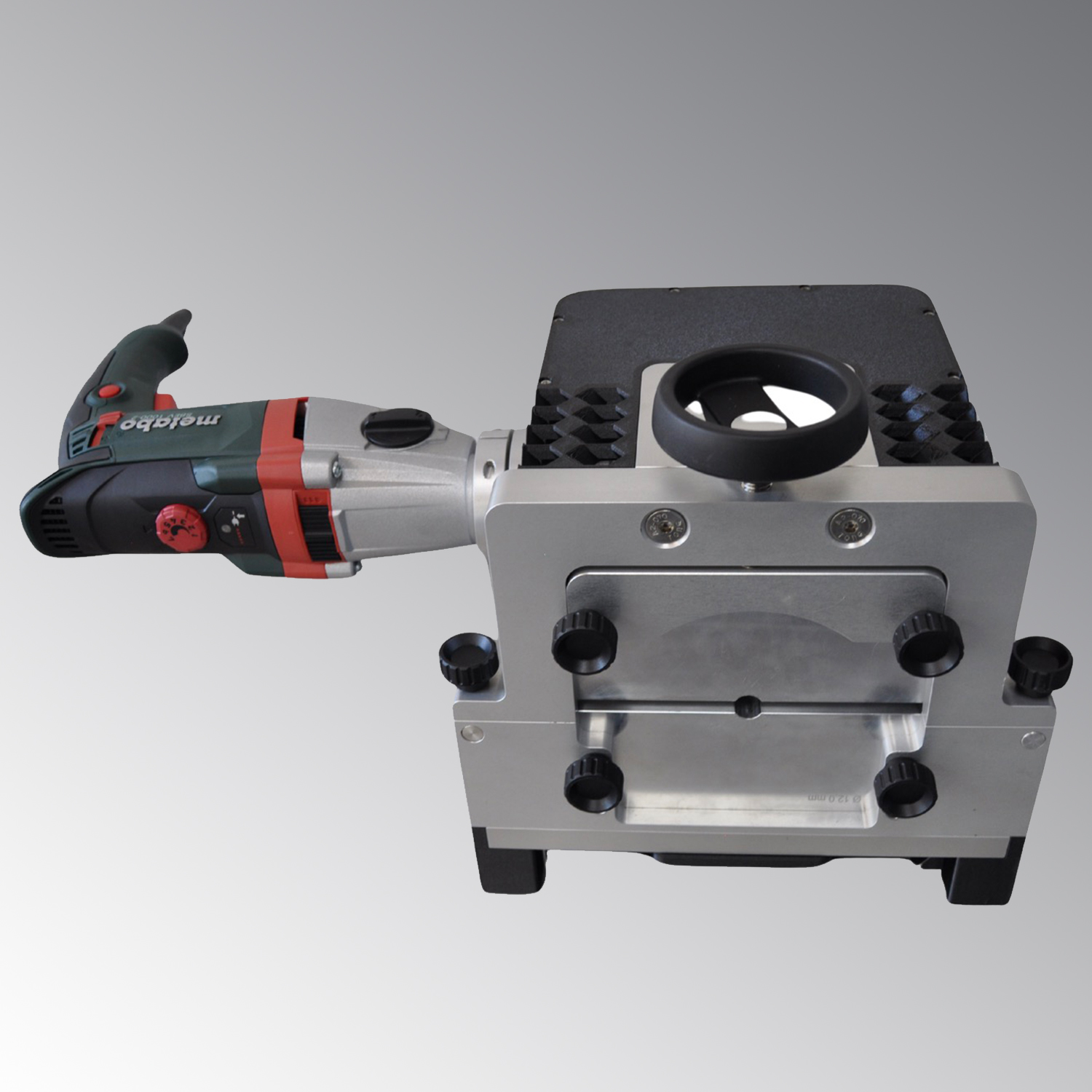

TF 4.5

TF 4.5

Range: 6,0 mm to 114,3 mm / 0.25″ to 4.52″
A stand for the tube facer 4.5 is already included with delivery. Equipped with a power cord-operated drill.

  • Speed-controlled electric motor
  • Range: 6,0 to 114,3 mm (0.25’’ to 4.52’’)
  • Clamping collars: durable aluminium
  • Stand and Transport box included
  • Dimensions (L x W x H): 300 x 295 x 295 mm / 11.81 x 11.61 x 11.61 in
  • Weight: 12,0 kg / 26.46 lbs
  • Article number: TF4.5200

Download

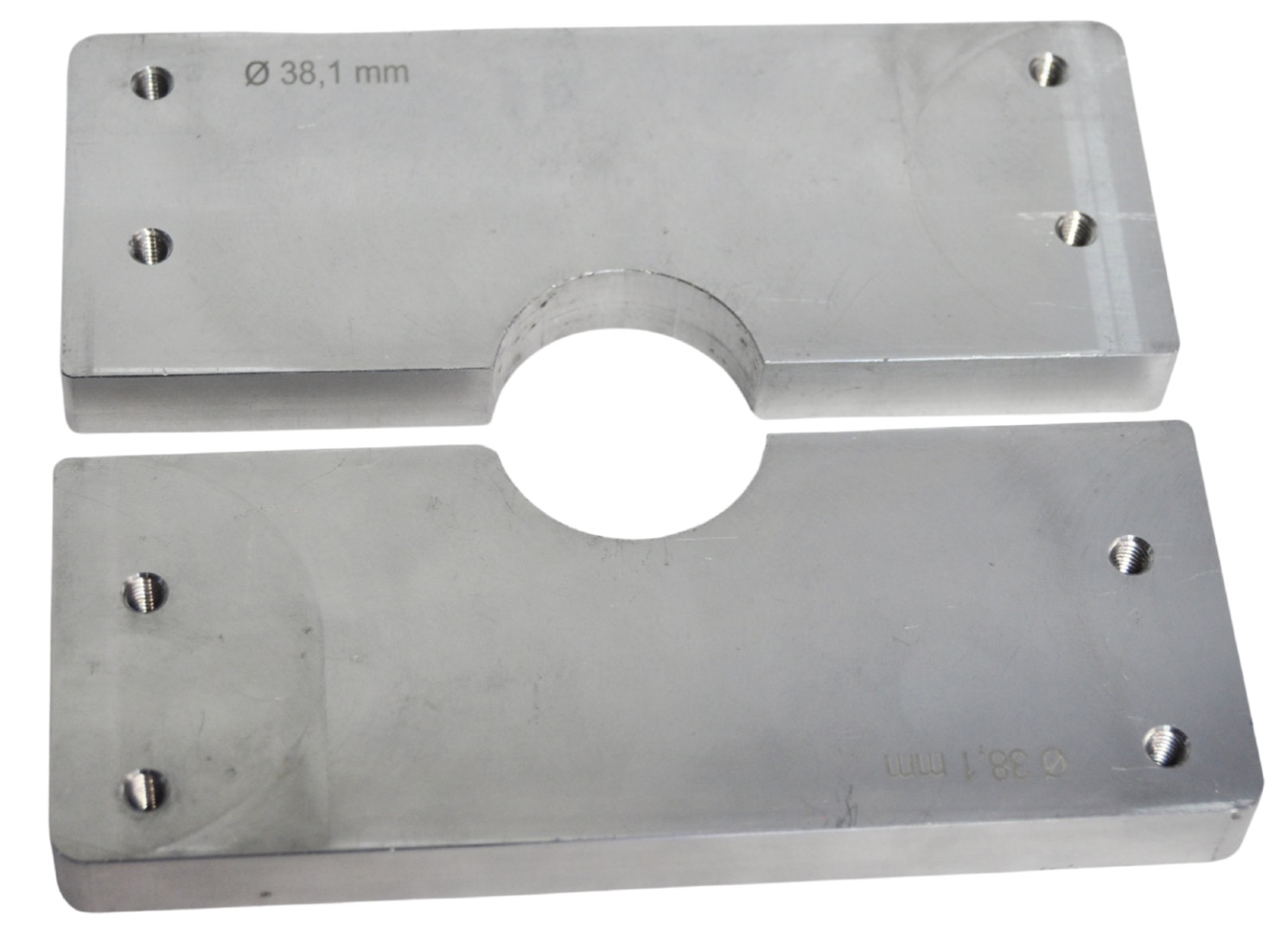

Accessories TF - Clamping jaws TF4.5 Aluminium

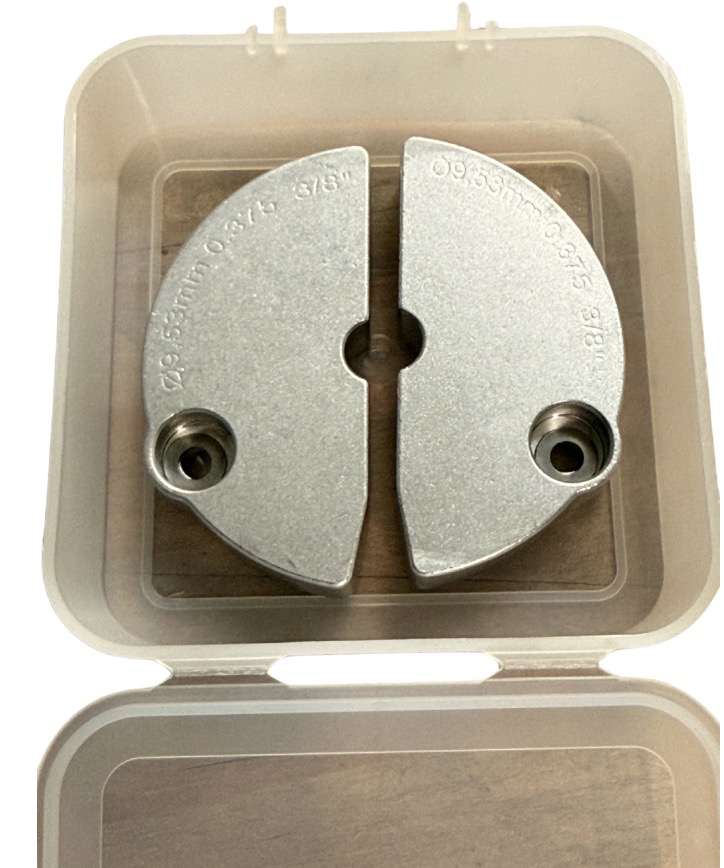

Accessories TF - Clamping jaws Aluminium for TF 1.6

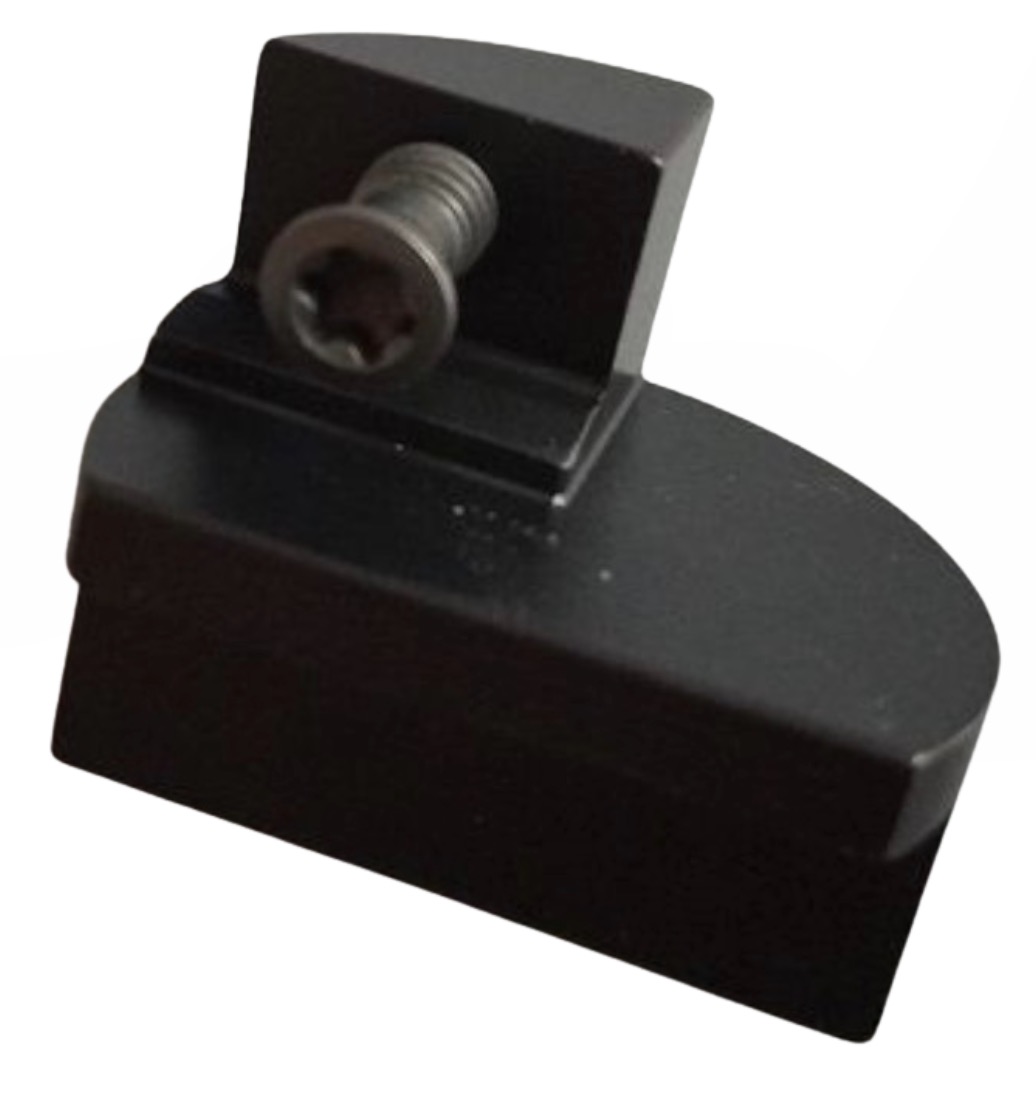

Accessories TF - Holder for facing steel TF 1.5-1.6
Accessories TF - Holder for facing steel TF 1.5-1.6
Accessories TF - Holder for squaring steel

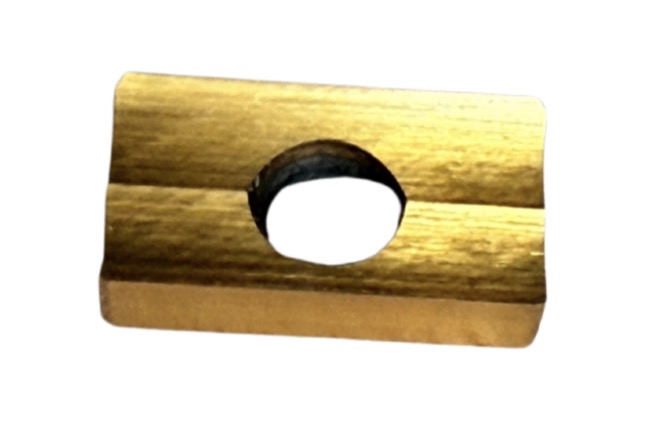

Accessories TF - Facing steel TF 1.5/1.6/4.5

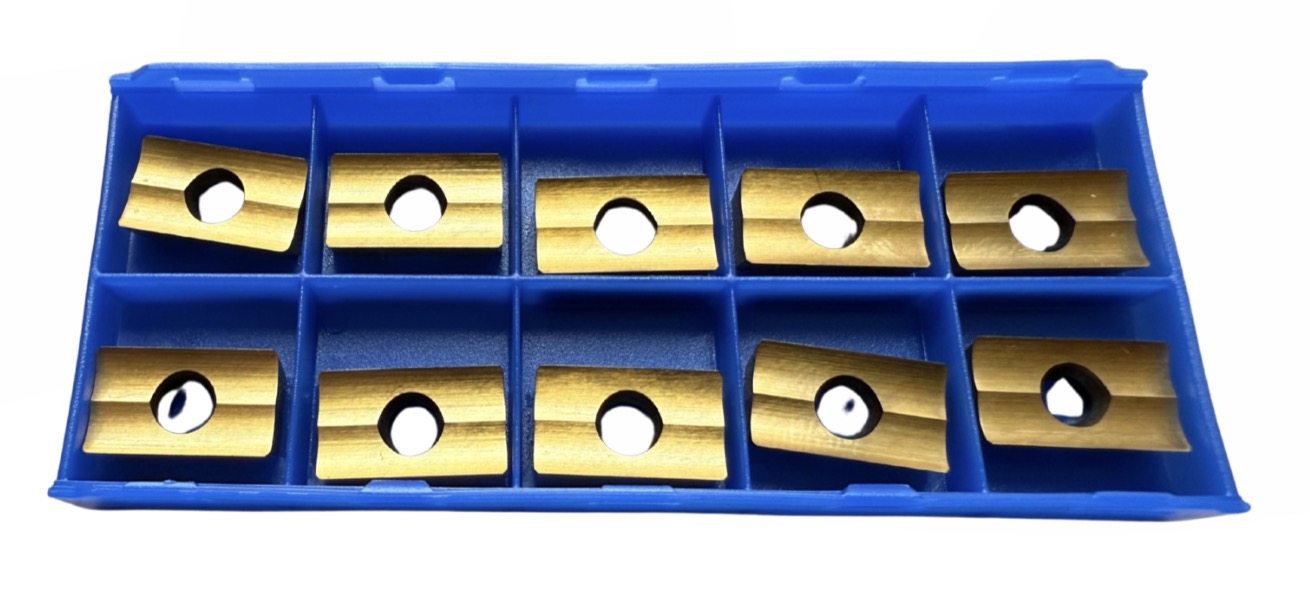

Accessories TF - 1 box with 10 pieces Squaring steel

Options & Accessories for TF 1.6 and TF 4.5

To enhance performance, flexibility, and user convenience, the TF 1.6 and TF 4.5 tube facers are available with a range of options and accessories tailored to different applications and operator needs.

  • Interchangeable Clamping Sets:
    Designed for different tube diameters within the tool’s working range. Quickly adjustable for fast changeover between sizes:

    • Clamping jaw Aluminium for TF 1.6, diameter XX:
      • Article number: TF1.56Clamp_XX
    • Clamping jaws TF4.5 Aluminium – 1 set with 2 half shells, diameter XX:
      • Article number: TF4.5200_XX

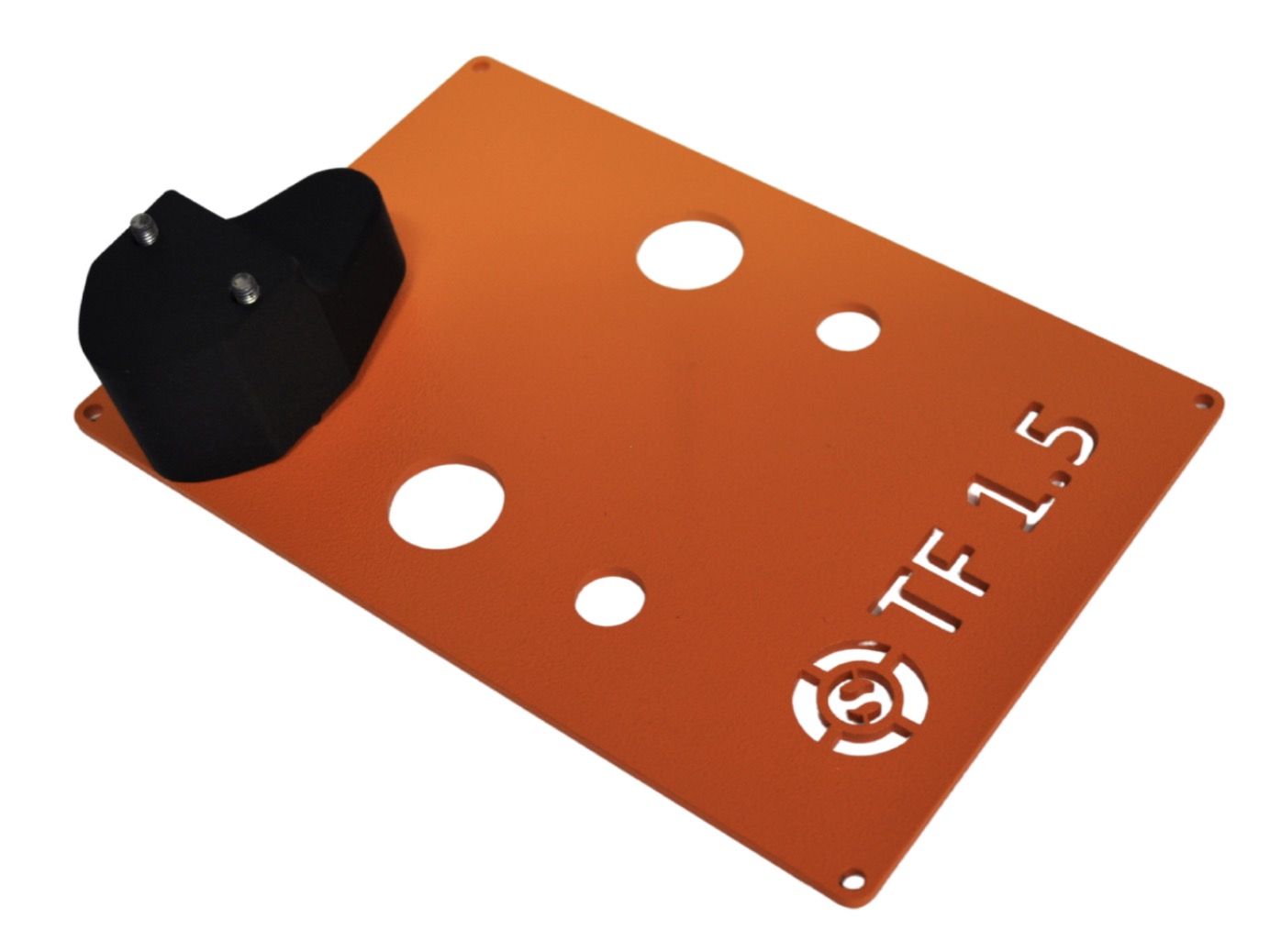

  • Stand for TF 1.6
    • Article number: TFStahlhalter
  • Holder for squaring steel TF 1.5/1.6- 4.5 incl. screw and torx wrench:
      • Article number: TF1.5-4.5Sta
  • Tool bits:
    • Facing steel 1 piece TF 1.5/TF1.6/TF4.5:
      • Article number: TFStahl
    • 1 box with 10 pieces facing steel TF 1.5/TF1.6/TF4.5:
      • Article number: TF1.5-4.5StahlBox

Do you have questions about our products or would you like an individual offer? Please do not hesitate to contact us.
