ORBITALSERVICE®

Tack clamp

Tack clamps

Optimal, patented solutions

With our innovative, patented stainless steel pipe clamps, pipes and fittings can be fixed and stapled manually using the TIG process.
The pipe clamp is extremely light, handy and does not require any explanation.
The pipe clamp is delivered in a stable transport case.

Tack clamp

With this innovative, patented stainless steel pipe clamp, pipes and fittings can be fixed and stapled manually using the TIG process.
The standard clamping range is for pipe OD from 60 mm to 600 mm / 2.36’’ to 23.62’’ (can be extended as required).
The pipe clamp is extremely light, handy and does not require any explanation.

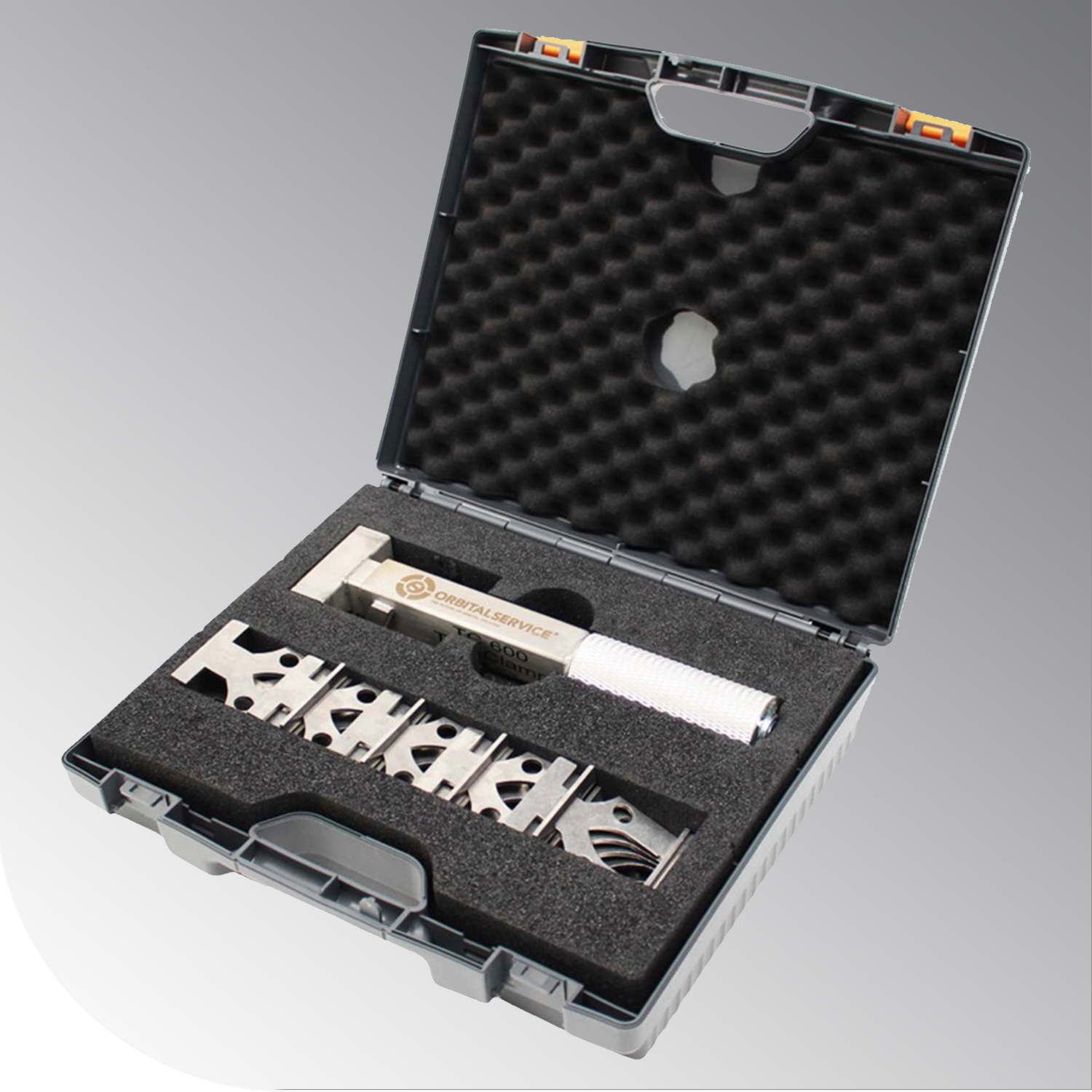

The pipe clamp is delivered in a stable transport case.

  • Weight including the case: 5 kg / 11 lbs
  • Dimensions of the case: 390 x 315 x 100 mm / 15.35’’ x 12.40’’ x 3.94’’
  • Number of needed links: external diameter x π / 65
  • Included links: 30 pcs (TC-610)
  • Article number: Rohrspanner60_600

• 30 chain segments included as standard
• Delivery in high quality transport case
