More possibilities thanks to mobility

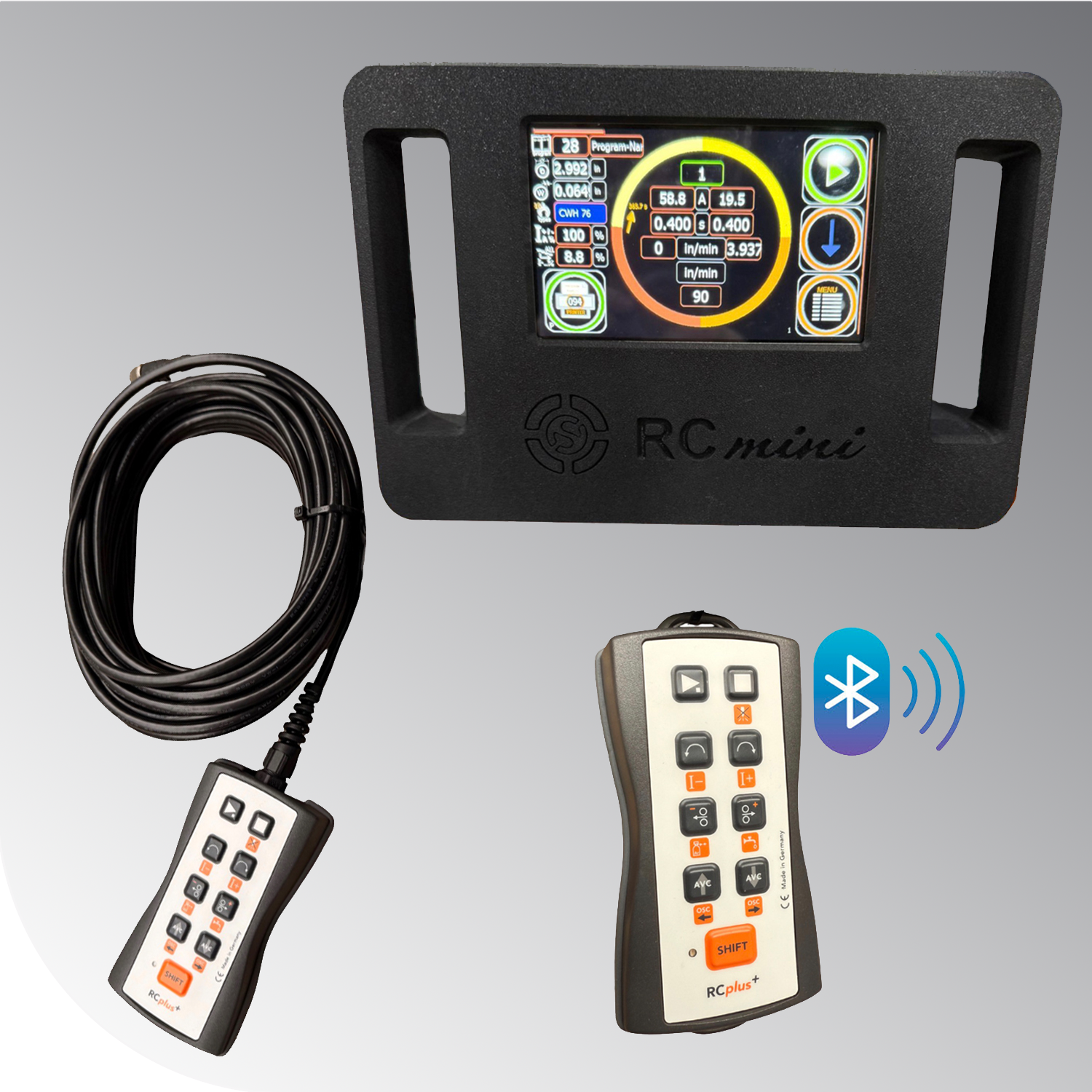

You have the choice if you want to operate your orbital welding system with a wire-remote control, a wireless remote control or with our Bluetooth (class 1) 7“ Windows-remote control in tablet-style, with which you can control and document the whole welding process in connection with our Basic-welding system. Bluetooth Class 1 ensures a long and save transmission. The cases of the remote controls are handy, self-explanatory and communications are transmitted by the built-in SMD-LED.

RCMini

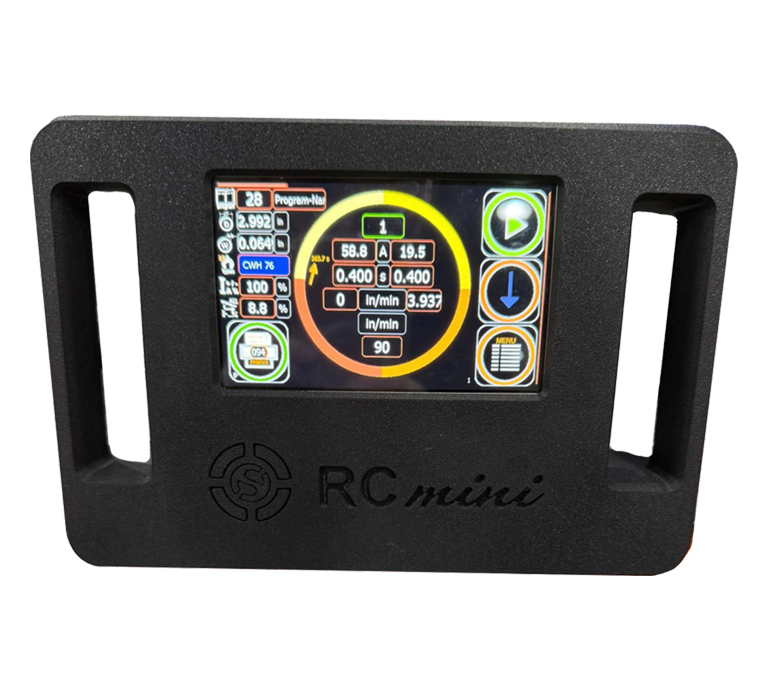

RC Mini

The RC Mini is a 7”-Windows remote control (Bluetooth class 1), with which the whole welding process can be controlled and documented in connection with our Basic-welding system.

The RC Mini is a mobile wireless remote control, which works with the CompactDual and BasicPlus orbital welding systems. The components are composed as a modular system.

The easy operation guide and program-creation in smartphone-style (device calculates welding programs by itself) and the many possibilities of the easy usable software are outstanding. The operator can create welding programs and send them to the orbital welding machine. The same is for the documentation of the welding parameters. The operator has the possibility to customize the device to his needs. Easy and discreet notifications make the communication with the machine easier. A rash of helping functions are available for the operator. The most important functions and information can be seen and selected on the main screen.

The data between the RC Mini and the orbital welding machine are transmitted via Bluetooth class 1. This ensures a long and save tramission. The battery-block makes it possible to operate the device over a complete working day.

  • Power supply: 100-240 VAC, 50/60 Hz
  • Charging voltage: 27-33 VDC / 0,9 A
  • Internal battery: 18 V DC
  • Range: 100m (open field); reduced in complex environments
  • Dimensions L x W x H: 85 x 355 x 205 mm / 3.35 × 13.98 × 8.07 in
  • Weight: 1,9 kg / 4.19 lbs
  • Communication (documentation, update, printer, analyzer): 1 x USB port
  • Article number: RCMini

RC_MINI_EN

RCplus+-Fernbedienung-Remote_Control

RC Plus+

The RCplus+ has 2 operation levels: Test & Welding Modes

Thanks to a built in, internal LED-light, the operating condition “welding” is indicated by flashing of the LED. If you are in the modification-mode while welding, the flashing phase ON is longer than OFF (optical identification if modifications are locked or free).
In case of a fault indication, it flashes in the same binary like the signal of the welding machine.

Functions:

  • Start & Stop
  • Weld without electric arc – test run
  • Turn left and right
  • Wire back and forward
  • Adjustment of OSC & AVC – axes
  • Modification of oscillation width also while welding
  • Modifications of the currents and wire speeds also while welding

Data:

  • Dimensions (L x W x H): 120 x 70 x 30 mm / 4.72″ x 2.76″ x 1.18″
  • Weight: 1,8 kg / 3.97 lbs (wired, incl. cable)
  • Article number: RCpl100+

RCplus_EN

RCplus+Connect

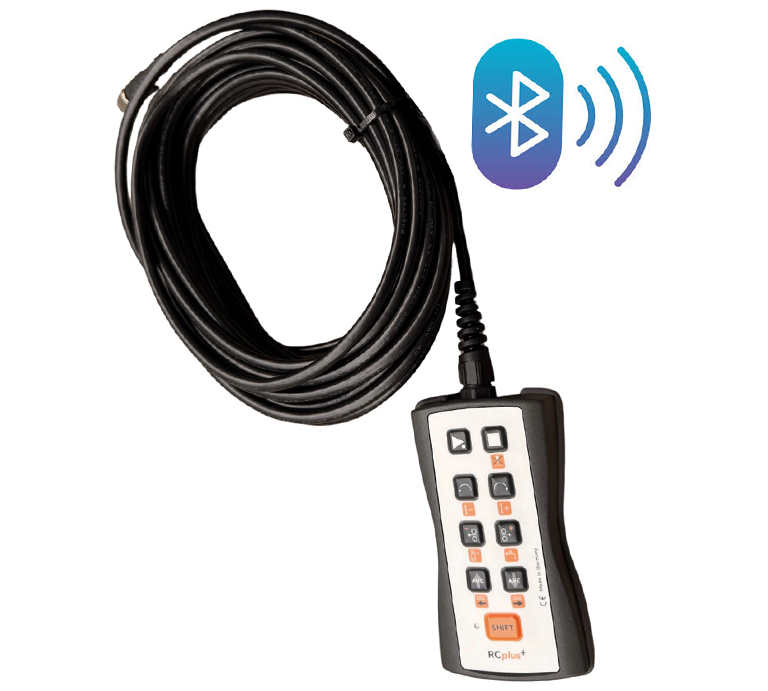

RC Plus+ Connect

The RCplus+ Connect is like the RCplus+ remote control but it includes a wireless connection to be used with the RCplus+ Wireless. They both have  2 operation levels: Test & Welding Modes

Thanks to a built in, internal LED-light, the operating condition “welding” is indicated by flashing of the LED. If you are in the modification-mode while welding, the flashing phase ON is longer than OFF (optical identification if modifications are locked or free).
In case of a fault indication, it flashes in the same binary like the signal of the welding machine.

Functions:

  • Start & Stop
  • Weld without electric arc – test run
  • Turn left and right
  • Wire back and forward
  • Adjustment of OSC & AVC – axes
  • Modification of oscillation width also while welding
  • Modifications of the currents and wire speeds also while welding

Data:

  • Dimensions (L x W x H): 120 x 70 x 30 mm / 4.72″ x 2.76″ x 1.18″
  • Weight: 1,8 kg / 3.97 lbs (wired, incl. cable)
  • Guaranteed transmission: 30 m / 98.43 feet
  • Article number: RCplConnect100_1

To control the power source wirelessly, the wired RCplus+Connect will be paired to the RCplus+Wireless.

Advantage: Can be used on any welding system, since no communication is requested internally, but rather between the remote controls.

RCPlus+Wireless

RCplus_EN

RCPlus+Wireless
RCplus+wireless-Fernbedienung-Remote_Control for orbital welding

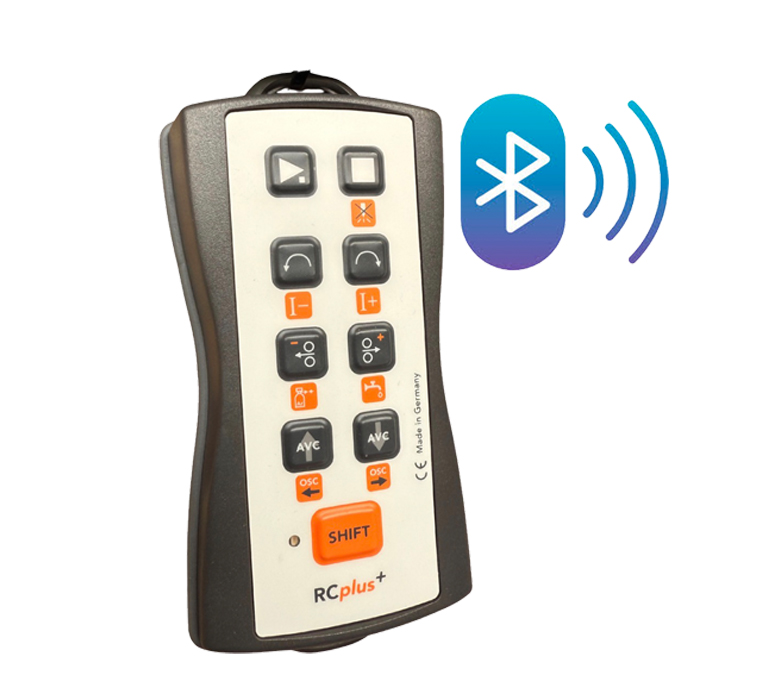

RC Plus+ Wireless

The RCplus+ Wireless is like the RCplus+ remote control but is paired and wirelessly connected to the RCplus+ Connect. They both have  2 operation levels: Test & Welding Modes

Thanks to a built in, internal LED-light, the operating condition “welding” is indicated by flashing of the LED. If you are in the modification-mode while welding, the flashing phase ON is longer than OFF (optical identification if modifications are locked or free).
In case of a fault indication, it flashes in the same binary like the signal of the welding machine.

Functions:

  • Start & Stop
  • Weld without electric arc – test run
  • Turn left and right
  • Wire back and forward
  • Adjustment of OSC & AVC – axes
  • Modification of oscillation width also while welding
  • Modifications of the currents and wire speeds also while welding

Data:

  • Dimensions (L x W x H): 120 x 70 x 30 mm / 4.72″ x 2.76″ x 1.18″
  • Weight: 50 g / 1.76 oz (wireless, without batteries)
  • Guaranteed transmission: 30 m / 98.43 feet
  • Power supply: 3 AAA batteries (not supplied)
  • Article number: RCplConnect100_2

To control the power source wirelessly, the wireless RCplus+Wireless will be paired to the RCplus+Connect.

Advantage: Can be used on any welding system, since no communication is requested internally, but rather between the remote controls.
