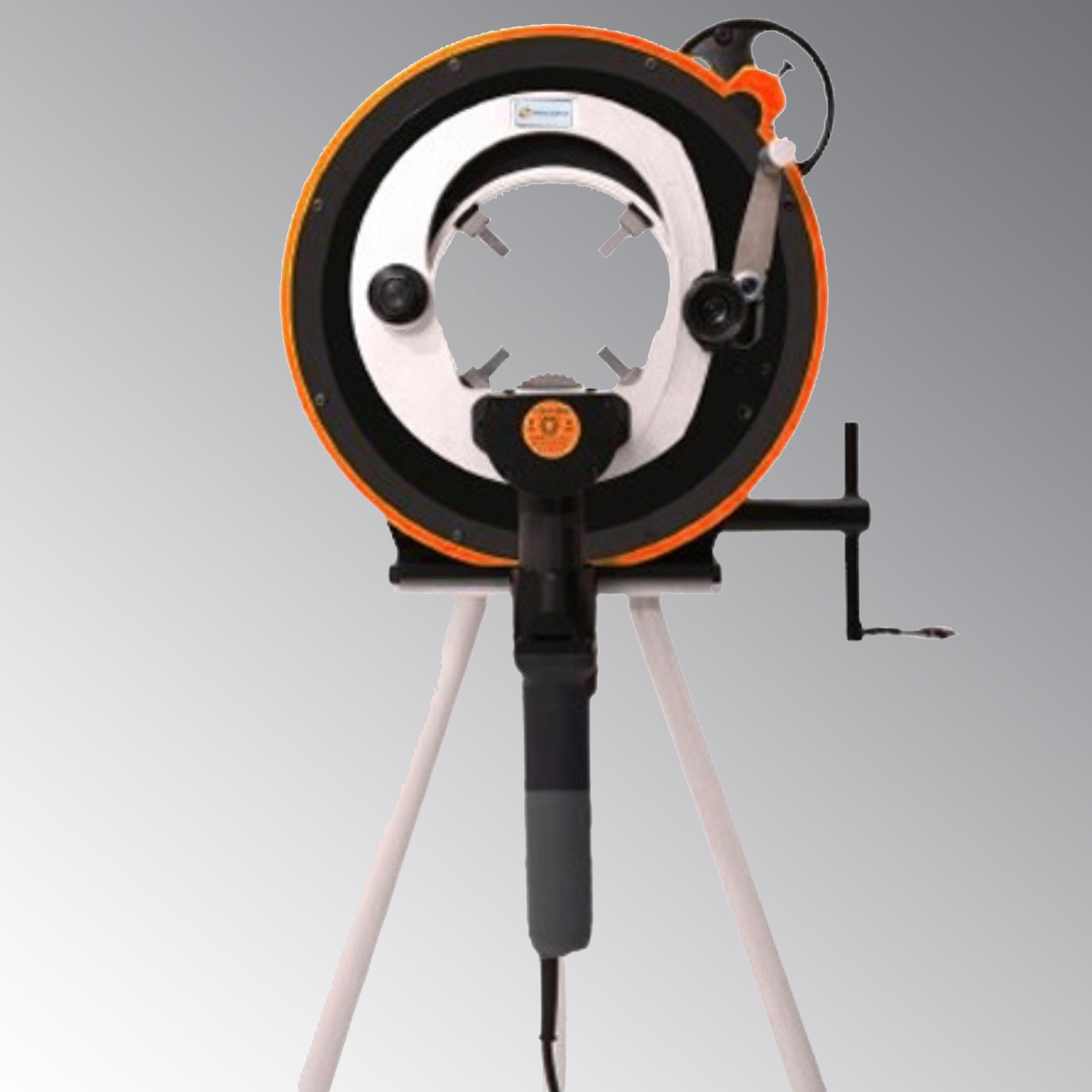

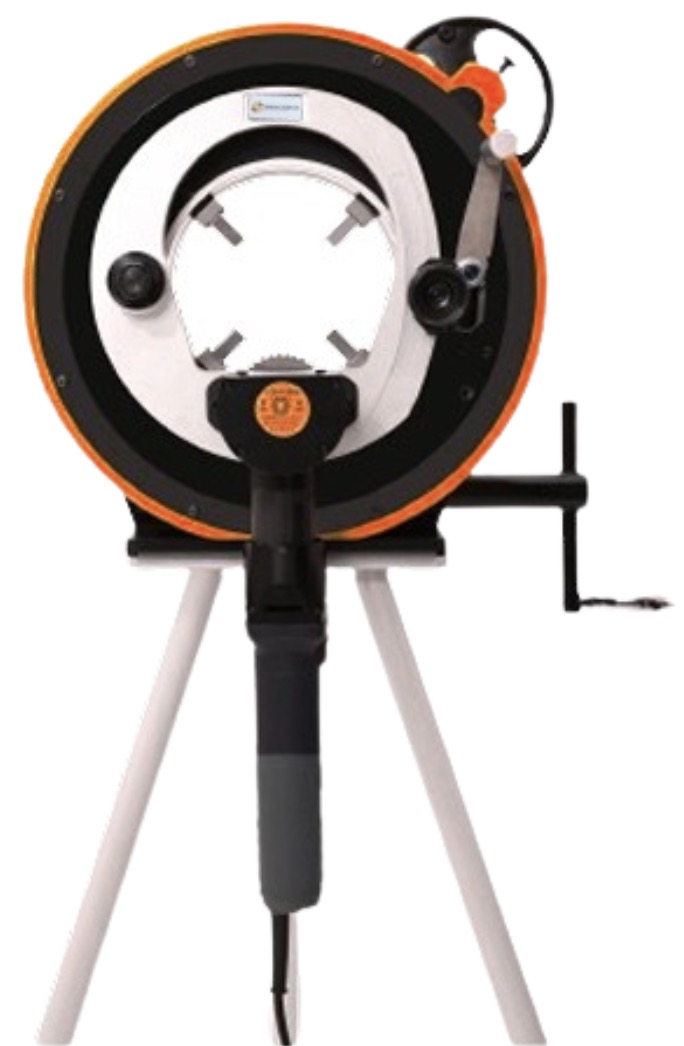

OTS-3-4-6-8-12 Pipe Cutting Machines
Compact and lightweight machines for pipes ranging from Ø 6 to 330 mm (0.236” to 12”).
Fast, burr-free, and precise cutting within 0.25 mm (0.009’’) tolerance. Ergonomic handwheel extends the lifespan of saw blades. Powerful, detachable motor with adjustable speed control.

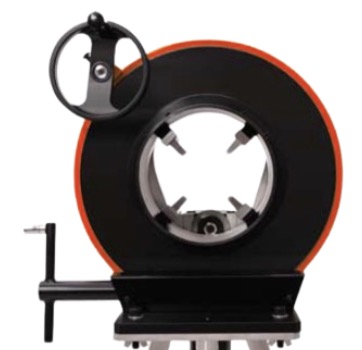

OTS-3

For pipe OD from 6 to 80 mm (0.236″ to 3.149″)

  • Cutting range: 6 to 80 mm / 0.236 to 3.149″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 4
  • Saw motor (included): 1300W
  • Input voltage: 230V / 50Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 31 kg / 68 lbs
  • Article number: OTS3220

Download

OTS-4

For pipe OD from 12 to 120 mm (0.472″ to 4.724″)

  • Cutting range: 12 to 120 mm / 0.472 to 4.724″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 4
  • Saw motor (included): 1300W
  • Input voltage: 230V / 50Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 40 kg / 88 lbs
  • Article number: OTS4220

Download

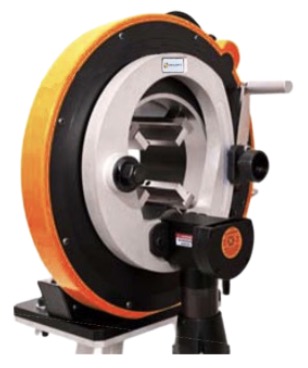

OTS-6

For pipe OD from 16 to 171 mm (0.63″ to 6.73″)

  • Cutting range: 16 to 171 mm / 0.63 to 6.73″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 4
  • Saw motor (included): 1300W
  • Input voltage: 230V / 50Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 55 kg / 121 lbs
  • Article number: OTS6220

Download

OTS-8

For pipe OD from 55 to 228 mm (2.165″ to 8.976″)

  • Cutting range: 55 to 228 mm / 2.165 to 8.976″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 6
  • Saw motor (included): 1300W
  • Input voltage: 230V / 50Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 60 kg / 132 lbs
  • Article number: OTS8220

Download

OTS-12

For pipe OD from 140 to 330 mm (5.512″ to 12.992″)

  • Cutting range: 140 to 330 mm / 5.512 to 12.992″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 6
  • Saw motor (included): 1300W
  • Input voltage: 230V / 50Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 81 kg / 178 lbs
  • Article number: OTS12220

Download
