ORBITALSERVICE®

Oxygen analyzers

PRO2stick, PRO2Expert, PRO2plus, PRO2mobil
Orbitalservice-Restsauerstoffmessgeraete-oxygen_analyzers-min
Orbitalservice-Restsauerstoffmessgeraete-oxygen_analyzers-min

ORBITALSERVICE®

Oxygen analyzers

PRO2stick, PRO2Expert, PRO2plus, PRO2mobil

Modern solutions in unique design

Know our new product line of residual oxygen analyzers. Whether it is our innovative, modern solution, the PRO2 stick, which can be started easily with the „shake-to-measure“-method and which can be controlled with our CompactOne welding machine via Bluetooth. Or the innovative, handy and inexpensive analyzer, the PRO2Expert, which works with a long-lasting and wear-proof zirconium-sensor and its the unique colored LED strip showing the ppm value in the forming chamber. Only long-lasting and wear-proof sensors are used. The devices have many interfaces. They can be operated wireless. Power supplies of 100 VAC – 240 VAC-autorange are used for the battery-charge.

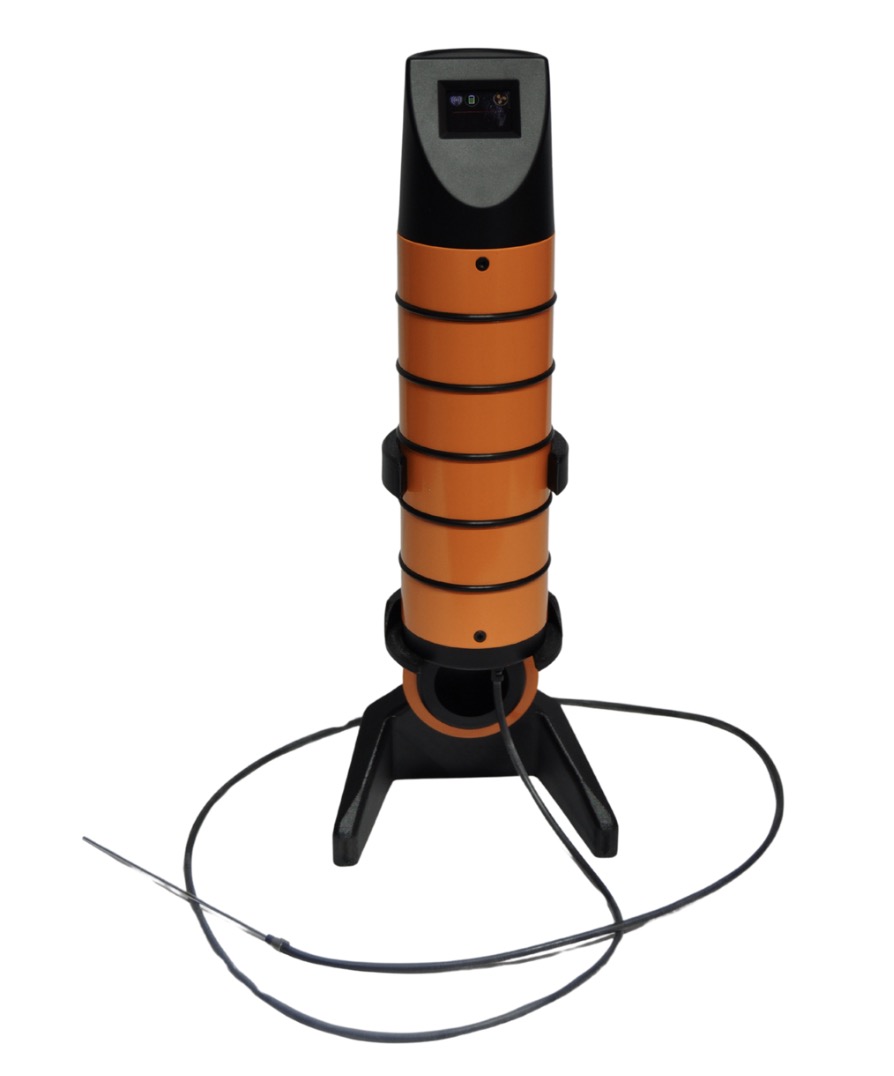

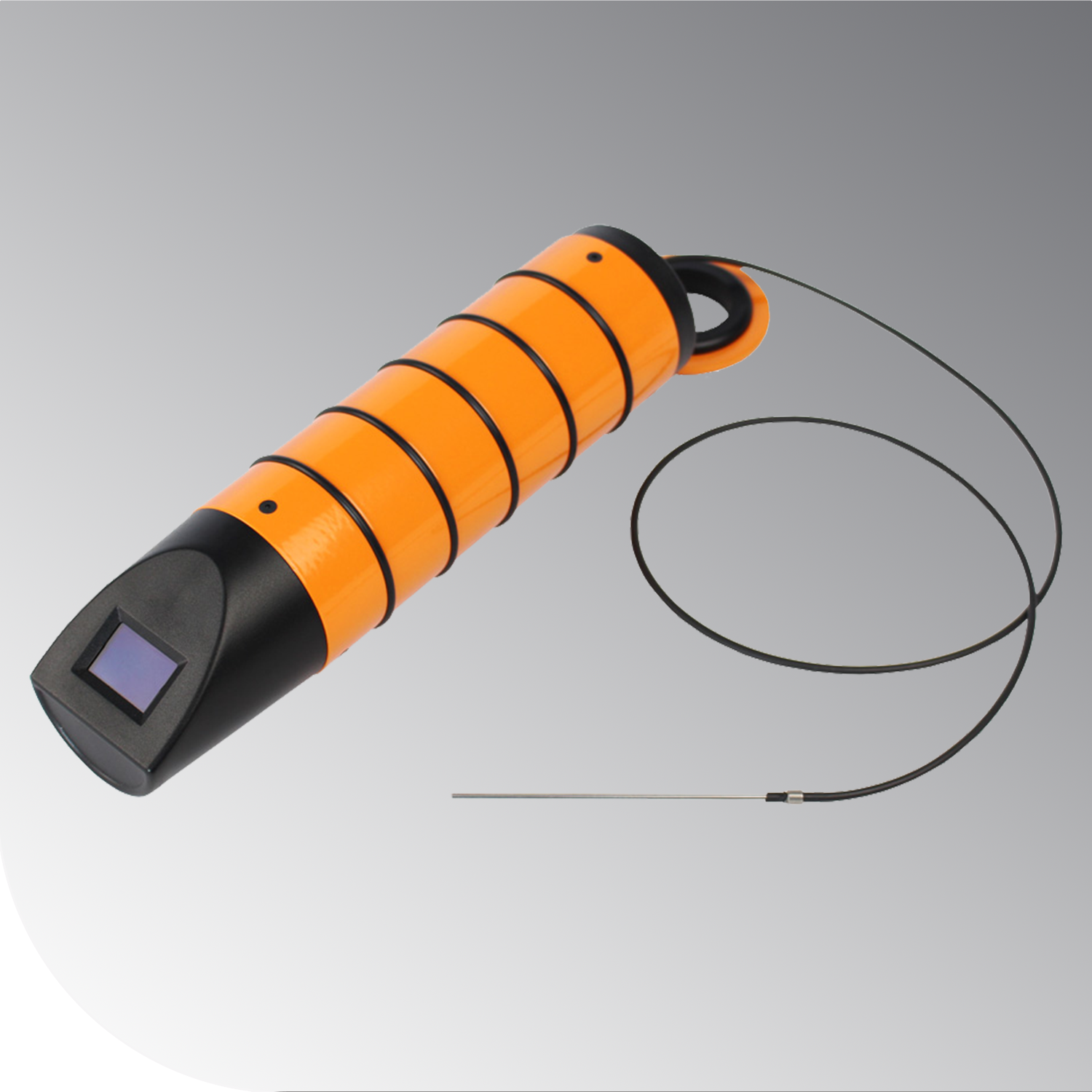

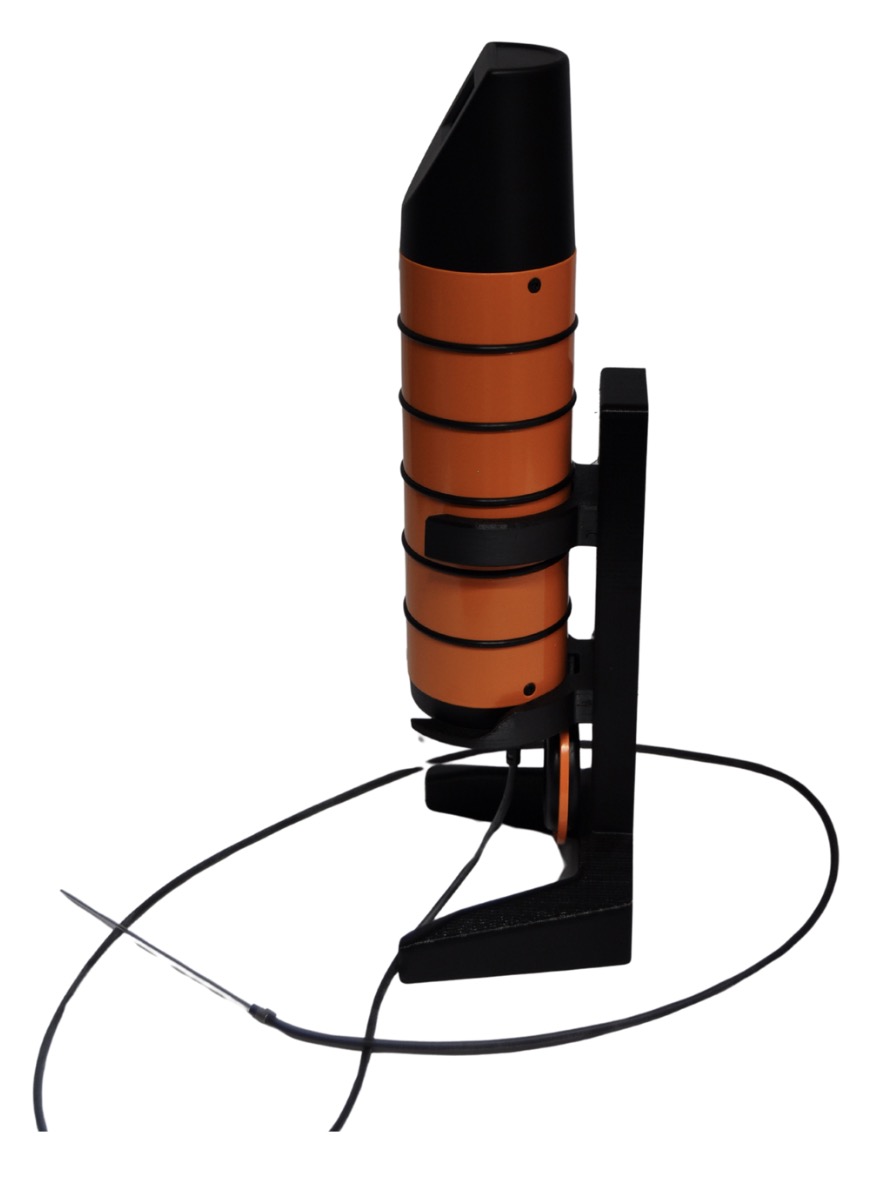

PRO2 stick

One of the few measuring instruments worldwide for O2 measurements in H2-containing gases.
Our innovative, modern solution amongst the oxygen analyzers. By shaking, the PRO2 stick is started and it is operable via Bluetooth together with our CompactOne welding machine. Ready-to-work in 5 seconds!

  • Measuring area: 1000 ppm – 1 ppm
  • No sensitivities on H2, humidity and ozon
  • Quickly ready to measure [less than 5 seconds]
  • 11 h battery run-time
  • Integrated signal horn
  • Integrated Bluetooth-module (Bluetooth-class 1, 100 m range) -> data transmission on welding machine, Android-mobile phone (10 m) or PC
  • One Bluetooth receiving-module is available
  • Robust, innovative and handy aluminium case
  • High-resolution 1“ OLED-colour display
  • Display with 180° turn-function
  • Automatical OFF-mode after 10 min. without measuring-value under 1000 ppm
  • 2 integrated LEDs, one usable as a flashlight and one as indication of the charge state
  • Article number: PRO2stick100
YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

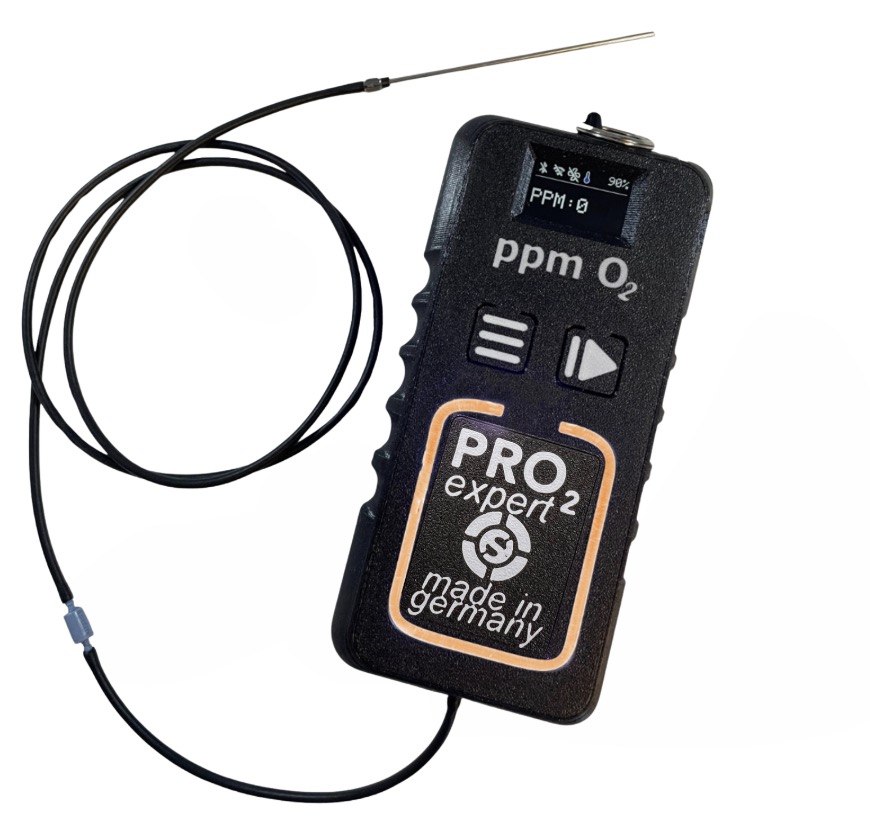

PRO2Expert

Precise oxygen measurement, offering a wide range from 1000 to 5 ppm (0.005%).
Powered by a long-life zirconium sensor, it ensures reliable and accurate performance. The unique color LED indication simplifies the readings, while the sleek, 3D-printed housing combines durability with modern design. Perfect for industries demanding precision and efficiency!

  • Measuring area: 1000 ppm – 5 ppm
  • No sensitivities on H2, humidity and ozone
  • Ready to measure in 60 seconds
  • 11 h battery run-time
  • Integrated signal horn
  • Robust, innovative and handy 3D-printed case
  • High-resolution 1“ OLED-colour display
  • Automatical OFF-mode after 10 min. without measuring value under 1000 ppm
  • Colour LED strip to indicate the range of the programmed value (Red, Orange, Green)
  • Article number: Pro2Expert

PRO2 plus

The residual oxygen analyzer PRO2 plus has a long-lasting, temperature controlled and very accurate zirconium-sensor. The device measures the oxygen-content in inert gases from 15 % up to 0,5 ppm and can be calibrated by the operator in ambient air.

  • Temperature controlled, wear-proof zirconium-sensor „handmade in Germany“
  • Measurement accuracy up to 0,5 ppm
  • Graphic-capable display
  • Internal battery for wireless measuring up to 90 min.
  • Integrated, free programmable signal horn
  • Date and time for documentation
  • Easy usable software
  • Diffusion-proof special-FPM-measuring hose
  • Digital flow sensor
  • Several interfaces: RS 232, 0-5 VDC (Orbitec), CAN-Bus, AUX (AMI)
  • Calibration on ambient air for authorized
  • Internal storage from up to 250 parameters or on external memory (PC-docu)
  • Article number: PRO2pl100

PRO2 mobil

The handy and portable pocket-oxygen analyzer has an area of application of 1000 ppm up to 5 ppm. The coloured displays, with which the operational states of the device can be displayed, are particularly comfortable.

  • Temperature-controlled zirconium sensor
  • Diffusion-tight special FPM sample gas hose
  • Graphic display (4 background colors)
  • Charging cable for car cigarette lighter available (optional)
  • 110 VAC-240 VAC power supply
  • Internal battery with 7 VDC, 2750 mAh
  • Integrated, freely programmable horn
  • Measurement data can be saved (Premium)
  • Easy-to-use software
  • Operator guidance in several languages
  • Documentation or connection of third-party orbital welding systems (Orbitec, AMI, etc.)
  • Article number: PRO2mob100
