Innovation as a benchmark

We operate our orbital welding machines not only via touch screen and revolutionary software, but with the CompactOne we have the smallest compact-orbital machine worldwide. We pay attention to purchase the most important components in Germany. Thanks to this they are available over a long period. Updates not only keep our software on the latest state of technology, but also enable the user to use new functions. New technologies for the industry, like Bluetooth and WLAN, are used for the automatic data transfers (e.g. the wireless transfer of residual oxygen-values to the welding machine), which make it easier for the operator and document the welding process.

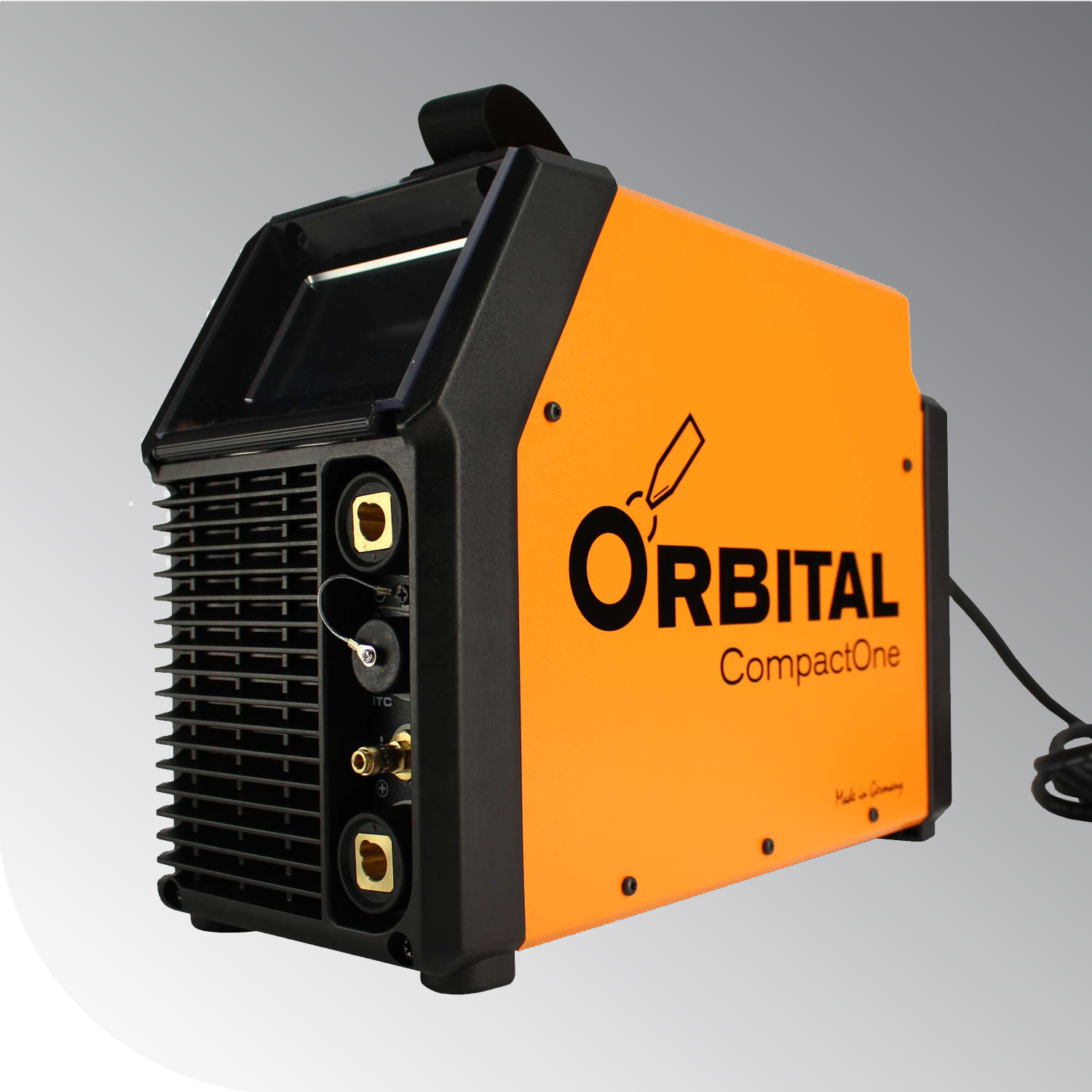

CompactOne

The CompactOne is the smallest and lightest orbital welding-compact machine worldwide. Easy usability in smartphone-style, touch panel and several help functions make it to the innovation leader of the industry.

Overview

CompactOne – Ultra-Compact, Smart Orbital Welding
The CompactOne is the smallest and lightest orbital welding machine in the world, combining portability with powerful performance. Its intuitive, smartphone-style interface allows automatic program creation and easy customization. Built with high-quality German components, it features an innovative Mass Flow Controller (MFC) for gas monitoring and documentation. Regular updates keep the system current, while two USB ports enable simple data transfer. A custom case with trolley option ensures easy transport.

Technical Data

Welding process: TIG DC, constant or pulsed, with or without Oscillation, AVC and wire feeder
Input power: Single phase, 230 V ± 15% – 50/60 Hz
Open circuit voltage VRD: 76 – 87 V
Main fuse: 16 A
Insulation class: F
Protection class: IP 23 S
Welding current: 2 to 180 A (@ 230 V ac)
Duty cycle (230V – 40°C): 100% – 130 A / 60% – 150 A / 35% – 180 A
Fast pulsing up to 2 kHz
Motor controls:
- Torch rotation: constant or pulsed
- Wire feeder: constant or pulsed with automatic retract
Power source cooling: Temperature-controlled ventilation
Display / Recording: Welding current, Arc Voltage, electrode angular position, welding and wire speed
Connectivity (Documentation, Updates): 2 x USB
Dimensions (L x W x H): 483 x 185 x 326 mm
Weight: 14,5 kg (without cooling unit)
Standard: EN 60974-01
Designation / Certification: CE, S
Article number: CompactOne180-100

Accessories

Wired and wireless remote controls RCplus+ and RC Mini

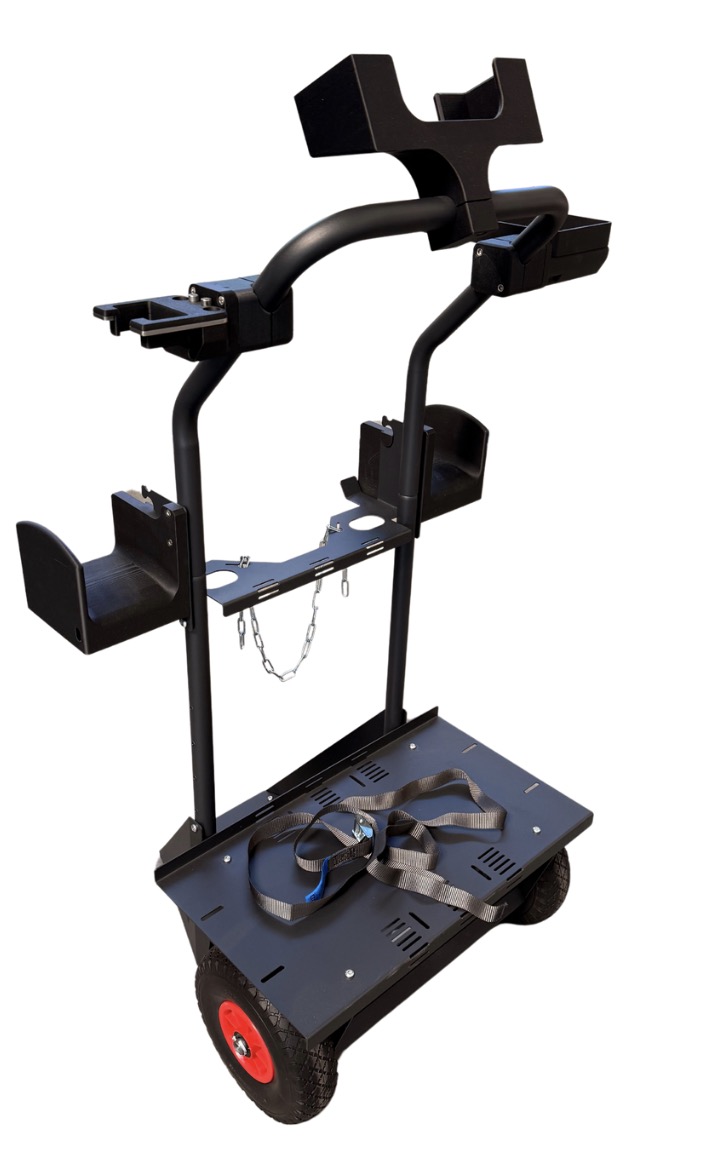

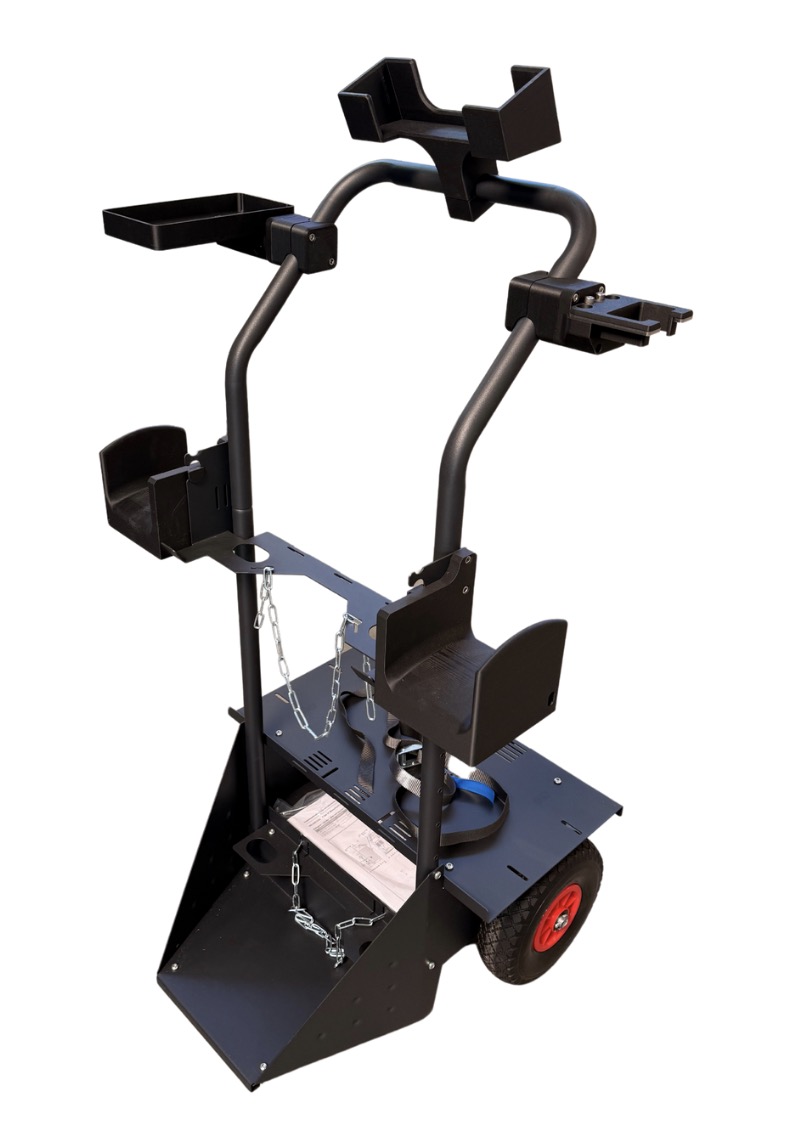

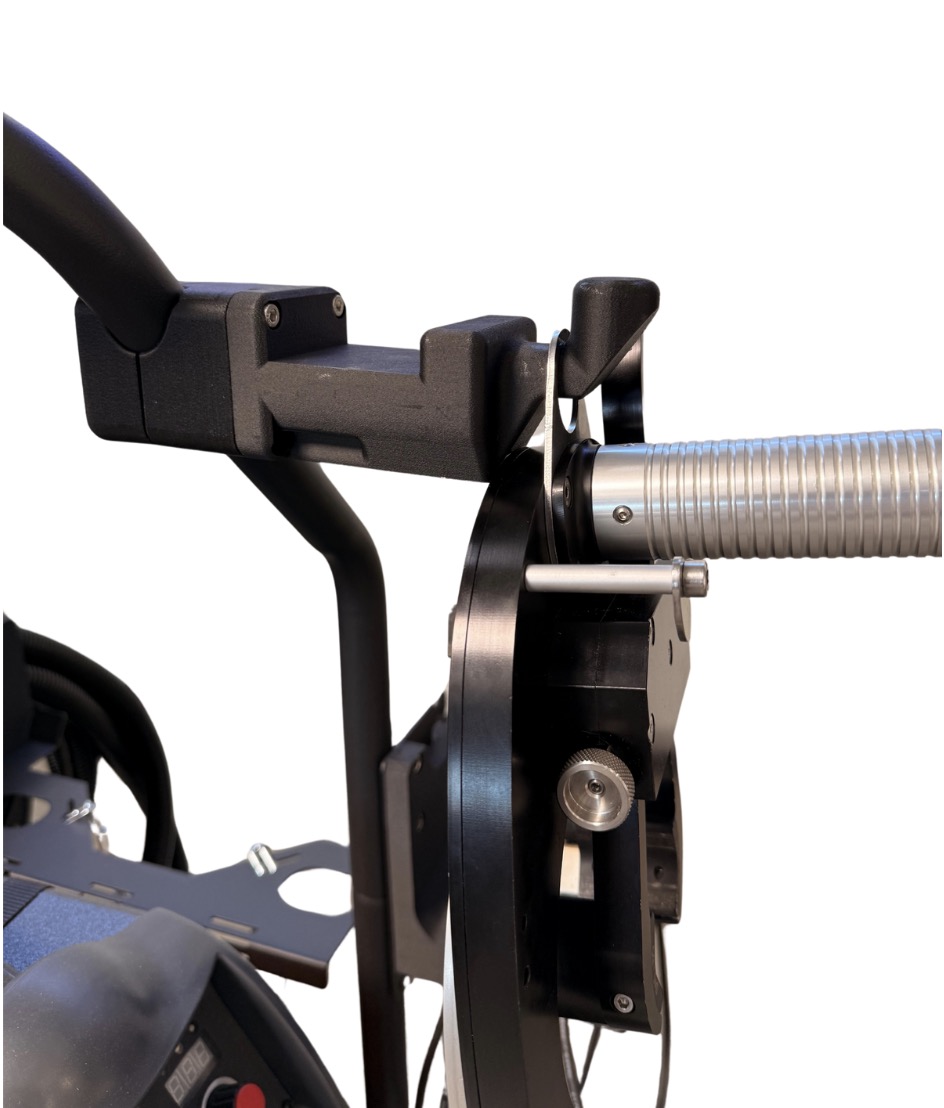

2-wheel trolley
Our full range of welding heads (and from competitors)

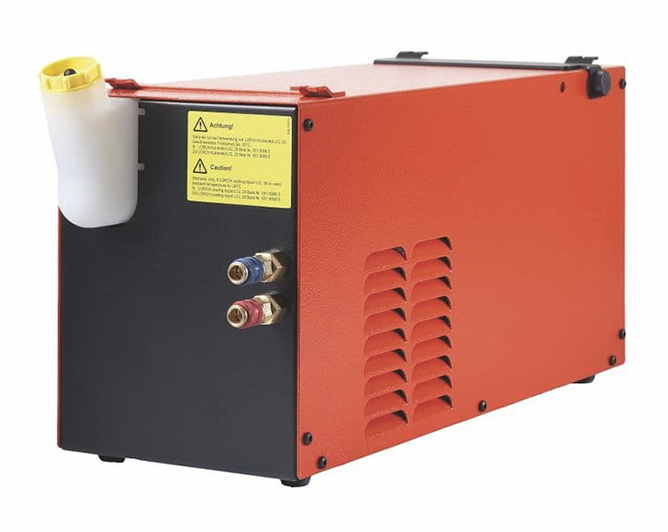

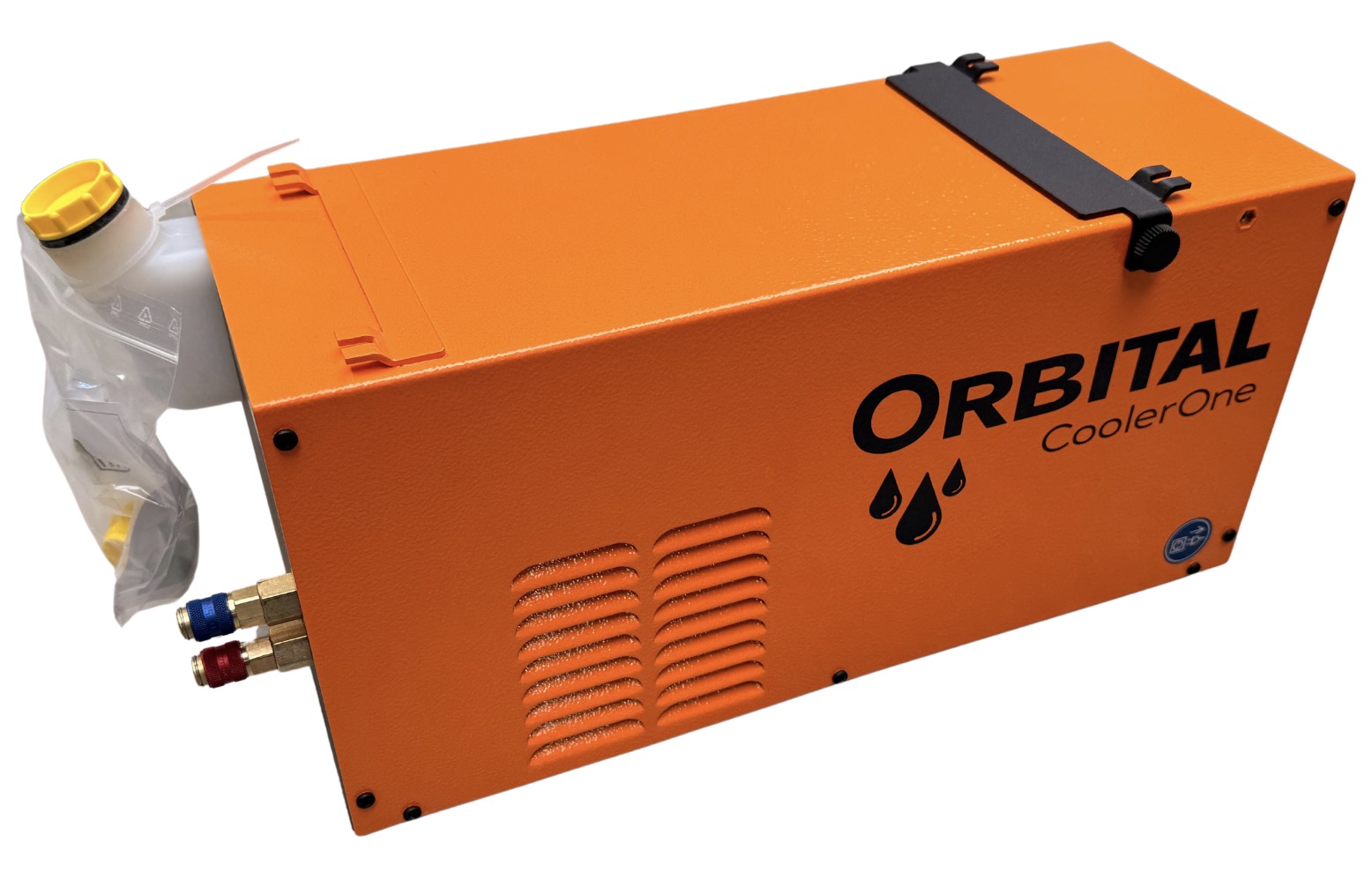

Water cooling unit WUK 7(CoolerOne)
Cold wire feeder
TIG hand torch
Oxygen analyzer

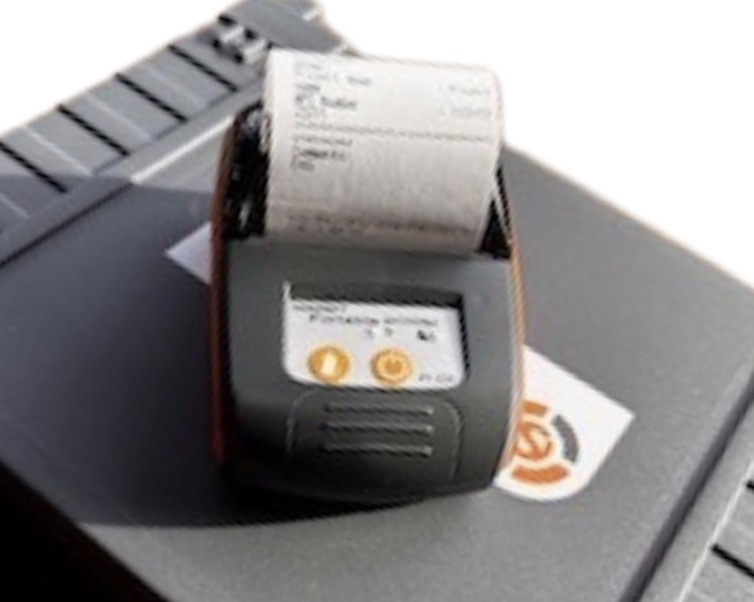

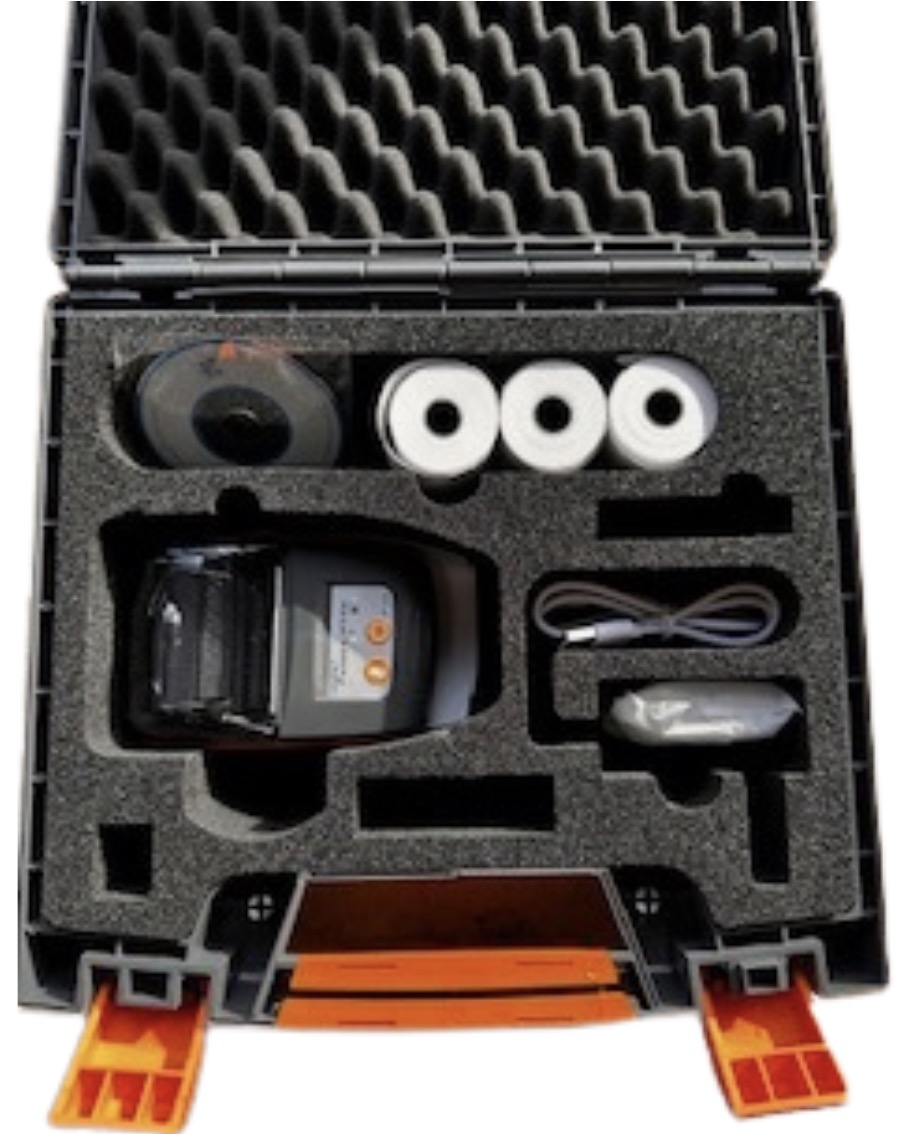

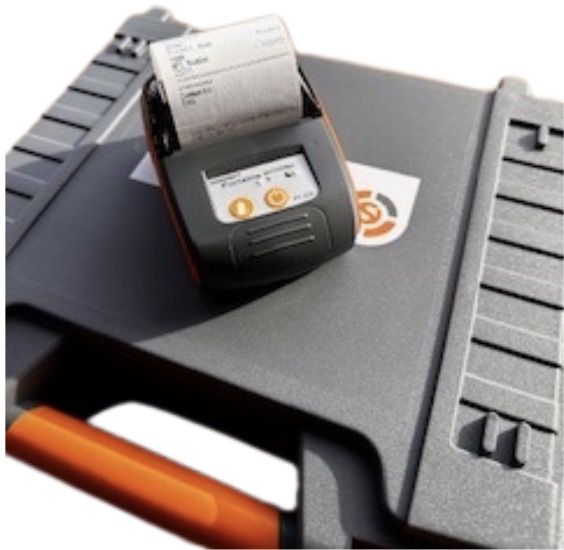

Bluetooth printer
USB port for Bluetooth connection printer or oxygen analyzer

Brochure

CompactOne_EN

CompactDual

Our new CompactDual is the most reasonably priced and most innovative all-in-one orbital and TIG hand welding machine of the world.
The multivoltage power supply enables a worldwide operation. It is the ideal companion for metalworking, breweries, dairies or pipe fitters.

Overview

CompactOne: The World’s Smallest Orbital Welding Machine
The CompactOne combines ultra-portability with high performance, offering intuitive operation and automatic program creation via a smartphone-style interface. Designed with durable German components, it includes a mass flow controller, regular software updates, and weld documentation export via USB. Its custom case and optional trolley make it the perfect on-the-go solution for precision orbital welding.

Technical Data

Welding process: TIG DC, constant or pulsed, with or without Oscillation, AVC and wire feeder
Input power: Single phase, 115/230 V ± 15% – 50/60 Hz
Main fuse: 16 A
Insulation class: H
Protection class: IP 23 S
Welding current: 3 to 220 A
Duty cycle (230V – 40°C): 100% – 160 A / 60% – 180 A / 40% – 220 A
Motor controls: Encoder and Tachospeed motors
Display / Recording: Welding current, Arc Voltage, electrode angular position, welding and wire speed
Connectivity (Documentation, Updates): 1 x RS232
Dimensions (L x W x H): 490 x 195 x 400 mm
Weight: 15,4 kg (without cooling unit)
Standard: EN 60974-1 / EN 60974-10
Article number: TiO-1006

Accessories

Wired and wireless remote controls RCplus+ and RC Mini

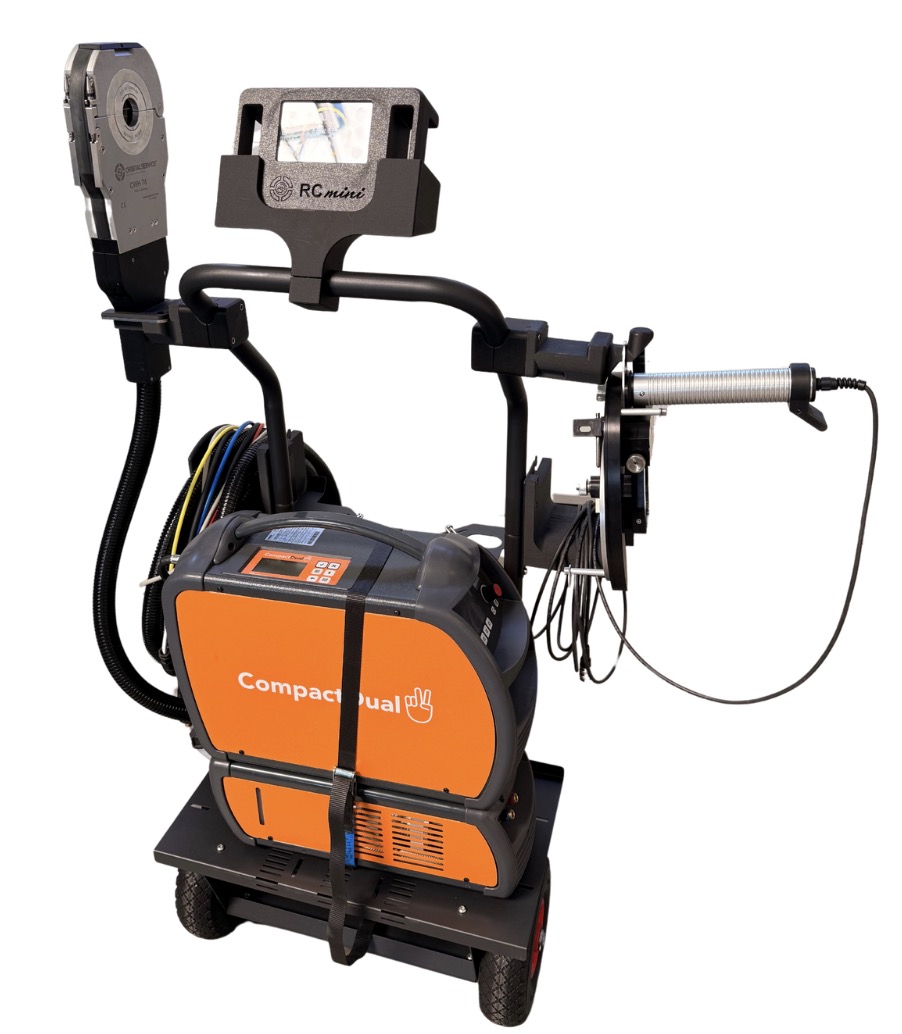

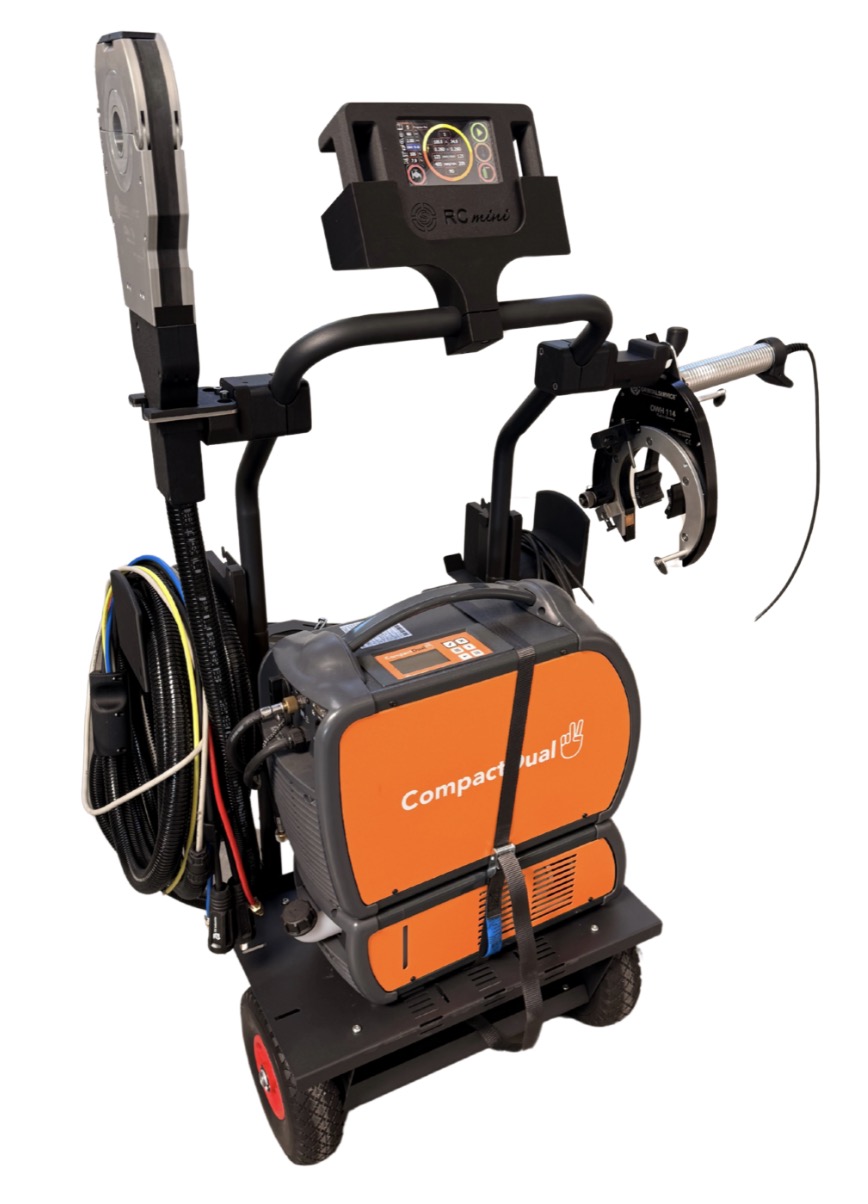

2-wheel trolley
Our full range of welding heads (and from competitors)

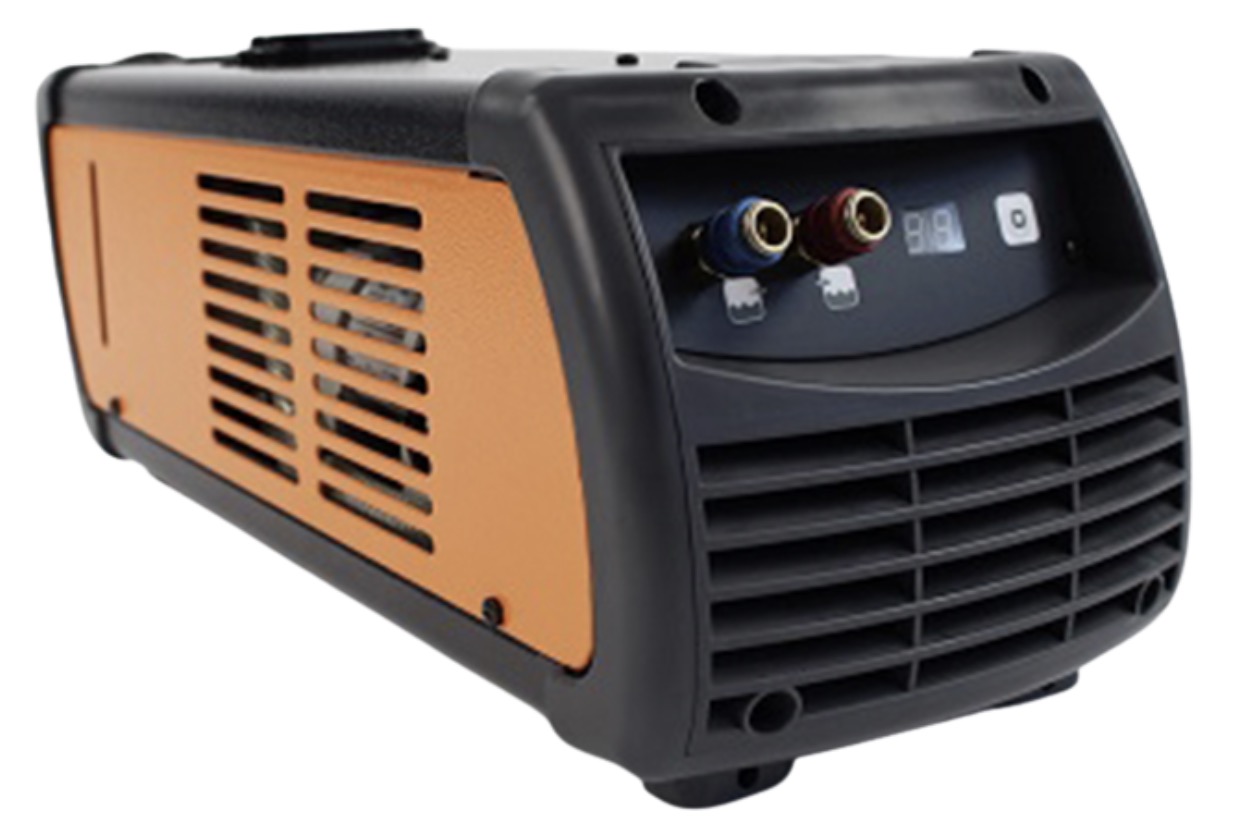

Water cooling unit DUALCOOLER
Cold wire feeder
TIG hand torch
Oxygen analyzer
Bluetooth printer
Bluetooth connection for the printer or the oxygen analyzer

Brochure

CompactDual_EN

Orbital System BasicPlus

The orbital welding system BasicPlus consists of an orbital control unit and a standard Lorch TIG power source, model T. All machine types of this series (18 different models) have an “Orbital software on board”.

Overview

Smart. Intuitive. Versatile.
With just three inputs; pipe diameter, wall thickness, and weld head type, the system automatically generates a welding program, guided by intuitive, welding-specific icons.
Compatible with both Orbitalservice and third-party weld heads, the BasicPlus supports multiple engine control cards and allows real-time parameter adjustment.

Technical data

See brochure!
Article numbers:
- Inverter T 180 DC “BasicPlus”: T180BPDC100
- Inverter T 180 AC/DC “BasicPlus”: T180BPAC100
- Inverter T 220 DC “BasicPlus”: T220BPDC100
- Inverter T 220 AC/DC “BasicPlus”: T220BPAC100
- Inverter T 250 DC “BasicPlus”: T250BPDC100
- Inverter T 250 AC/DC “BasicPlus”: T250BPAC100
- Inverter T 300 DC “BasicPlus”: T300BPDC100
- Inverter T 300 AC/DC “BasicPlus”: T300BPAC100
