ORBITALSERVICE®

Cold wire feeders

CWF 1, CWF 5, CWF 15

Products

The focus is on compactness and robustness

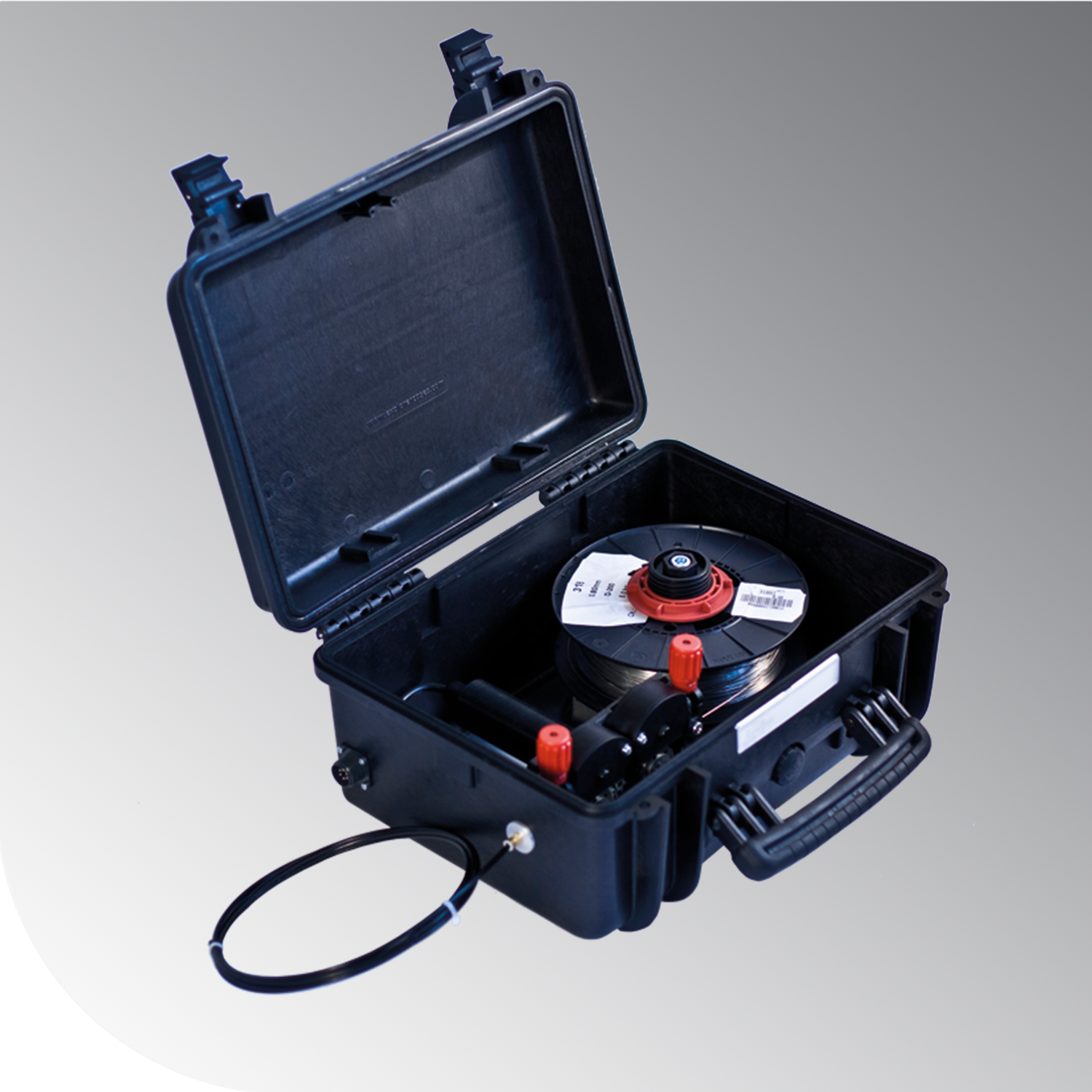

The robust cold wire feeders are characterized by their compactness. There are three different types to choose (CWF-1 – 1 kg wire spool, CWF-5 – 5 kg wire spool and CWF-15 – 15 kg wire spool). The suitcase can be closed and keeps the mechanism safe from dust, oil etc. The devices can be operated with the open weld heads OWH and the turn tables. Our machines can be operated lying or standing and are disposed with a 2- / 4-roll-gear for the cold wire feeding (Swiss Made).

CWF1-Kaltdrahtgeraet-Cold_wire_feeder

CWF 1

The cold wire feeder CWF-1 can absorb sigmet-spools up to 1 kg maximum weight. A dust-proof and stabile suitcase keeps the mechanism and the wire safe from damage and corrosion.

  • Dust-proof and robust suitcase, made for the industrial application
  • 2-wheel-gear for the cold wire feeding
  • Suitable for wire diameters 0,6 mm and 0,8 mm
  • Inexpensive wire feeding hose mountable with a fast-click-system (without tools)
  • Devices can be operated lying or standing
  • Wire centering inside the case up to the wire feeding-bracket

DATA//

Electrical power supply: 24 V DC
Dimensions L x W x H (mm): 115 x 250 x 210
Weight without reel (kg): 1,5

CWF5-Kaltdrahtgeraet-Cold_wire_feeder

CWF 5

The cold wire feeder CWF-5 can absorb sigmet-spools up to 5 kg maximum weight. A dust-proof and stabile suitcase keeps the mechanism and the wire safe from damage and corrosion.

  • Dust-proof and robust suitcase, made for the industrial application
  • 4-wheel-gear for the cold wire feeding, „Swiss Made“
  • Suitable for wire diameters 0,8 mm and 1,0 mm
  • Inexpensive wire feeding hose mountable with a fast-click-system (without tools)
  • Engine versions with tachometer- and encoder-regulation possible (AMI, Polysoude)
  • Devices can be operated lying or standing
  • Wire centering inside the case up to the wire feeding-bracket

DATA//

Electrical power supply: 24 V DC
Dimensions L x W x H (mm): 320 x 410 x 205
Weight without reel (kg): 7,2

CWF15-Kaltdrahtgeraet-Cold_wire_feeder

CWF 15

The cold wire feeder CWF-15 can absorb sigmet-spools up to 15 kg maximum weight. A dust-proof and stabile suitcase keeps the mechanism and the wire safe from damage and corrosion.

  • Dust-proof and robust suitcase, made for the industrial application
  • 4-wheel-gear for the cold wire feeding, „Swiss Made“
  • Suitable for wire diameters 0,8 mm and 1,0 mm
  • Inexpensive wire feeding hose mountable with a fast-click-system (without tools)
  • Engine versions with tachometer- and encoder-regulation possible (AMI, Polysoude)
  • Devices can be operated lying or standing
  • Wire centering inside the case up to the wire feeding-bracket

DATA//

Electrical power supply: 24 V DC
Dimensions L x W x H (mm): 450 x 510 x 230
Weight (kg): 9.1

Do you have questions about our products or would you like an individual offer? Please do not hesitate to contact us.
