ORBITALSERVICE®

Cleaning systems

SolidClean 80, 100, 150 Auto
SolidClean X 80, 100, 150 Auto

Innovative cleaning for clean surfaces

With our assortment of electropolishing devices, you can clean and passivate your welding seams at once without input of toxic bating chemicals.

With the innovative high current cleaning devices, the welding seams can be cleaned very fast from oxidations, tempering colours and even scalings without the use of conventional toxic mordant.

Millions of small arcs on the ends of our carbon fibre brushes, remove all contaminations on high-alloyed stainless steels and even NE-metals like copper.

The cleaning efficiency is achieved through a high current in relation with the power of the arc, which makes it possible to resign to the use of hydrogen fluoride or sulphuric acid.

Only non-toxic electrolytes are used, which are also used as the food additive E338, for example in Coke-beverages.

The new SolidClean X takes weld cleaning to the next level with more power, smarter controls, and a tougher design, all built for professionals:

  • A more powerful unit delivers faster, deeper, and more intensive cleaning and passivation.
  • Upgraded software allows precise parameter settings and better process regulation for maximum efficiency.
  • A completely redesigned housing offers greater durability and a professional look for both workshop and on-site use.

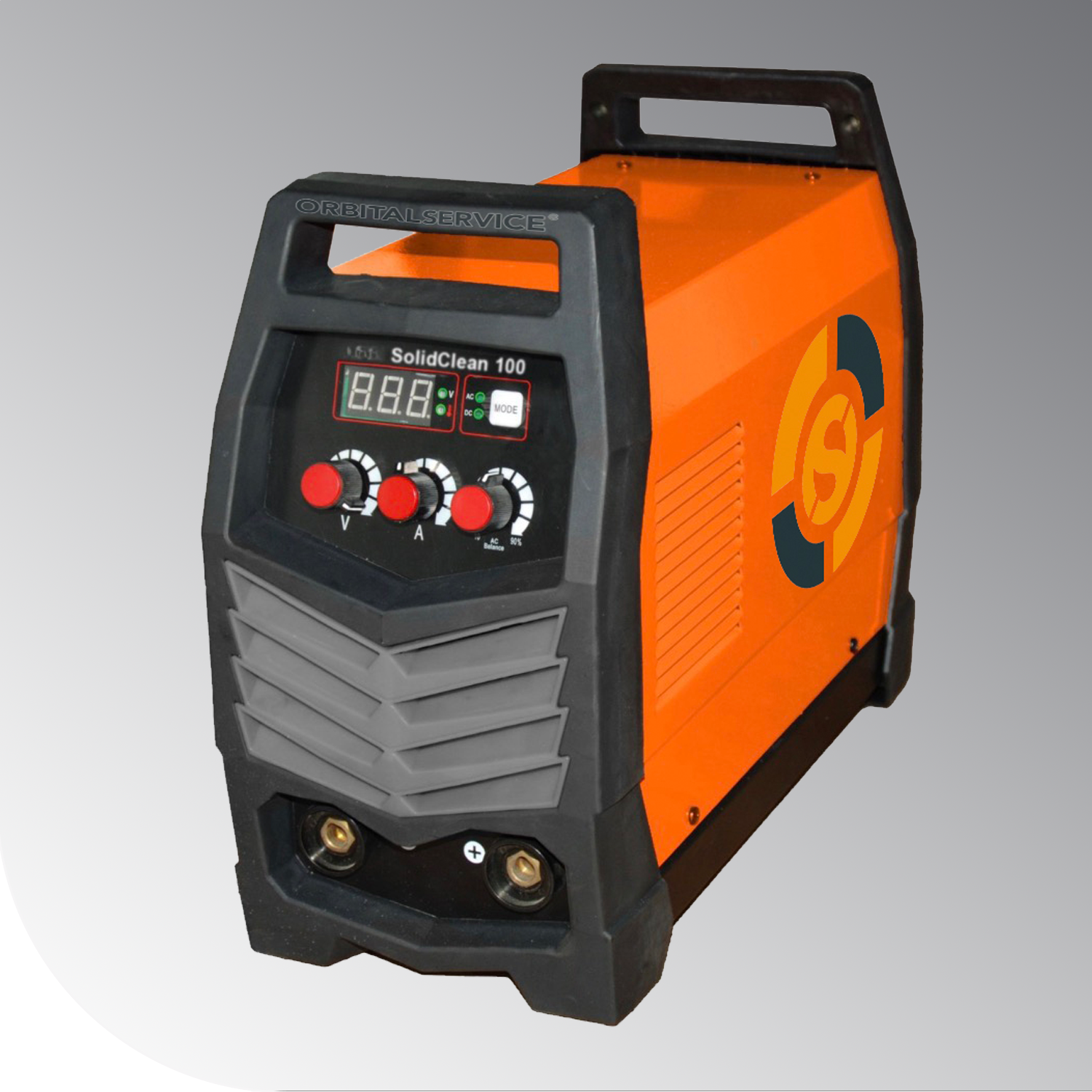

SolidClean 80, 100, 150 Auto

The cleaning devices SolidClean 80, 100 and 150 Auto remove tempering colours and oxide-films from TIG-welding seams and polishes discolourings in the WEZ. Thereby the surface is passivated and surely protected from corrosion. Due to the very high duty-cycle, the device is suitable for the professional use.
Available in 3 different power, with automatic liquid feeding brush for the model 150 Auto.

  • Quick and environmentally safe electro-chemical cleaning of stainless steel-TIG-welding seams
  • Without use of toxic bating products
  • Compact case
  • High duty-cycle
  • Momentary passivating of the cleaned stainless steel surfaces
  • Outstanding corrosion resistance of the cleaned surfaces
  • No mordant-borders
  • No colour- and structure-changes of the metal surfaces
  • Free from hydrogen fluoride- and nitric-acid
  • DC – AC/DC selection

SolidClean 80

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 6.5 A
  • Output Power: 1200 W
  • Output Voltage range: 1 to 12 V
  • Output Current range: 0 to 100 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Weight: 7,5 kg (16.5 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8”
  • Article number: SolidClean80

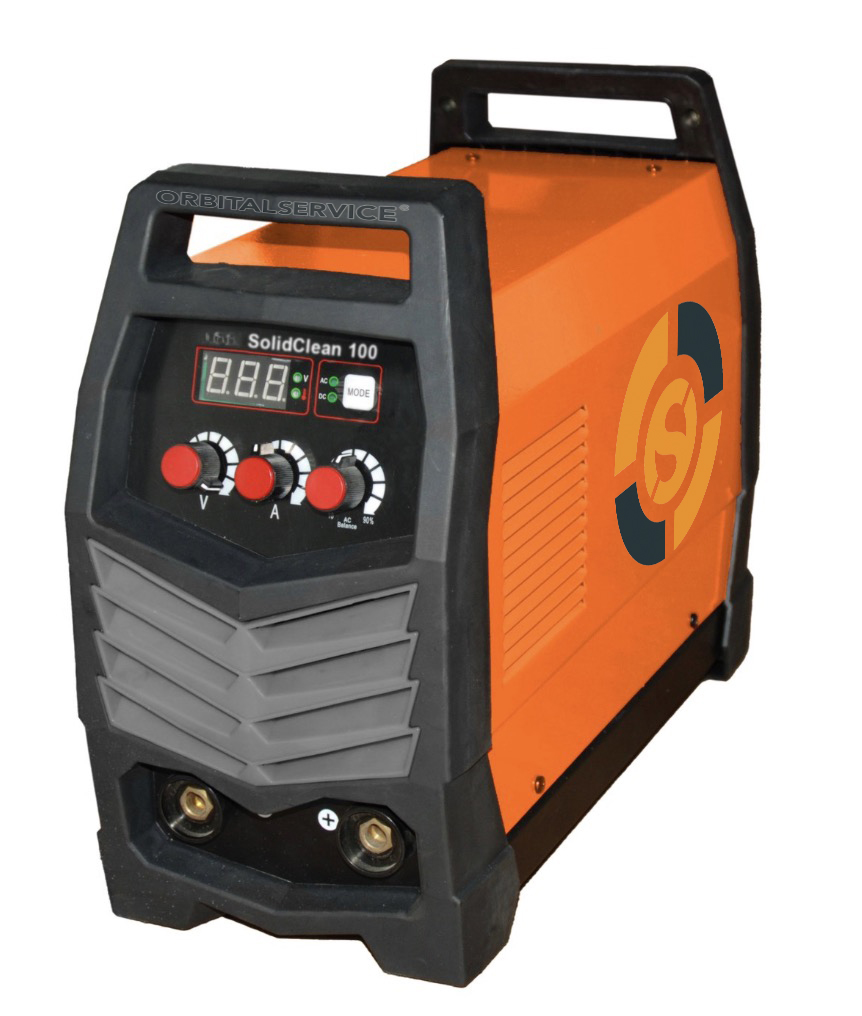

SolidClean 100

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 11 A
  • Output Power: 2000 W
  • Output Voltage range: 1 to 24 V
  • Output Current range: 0 to 83.3 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Weight: 7,5 kg (16.5 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8”
  • Article number: SolidClean100

SolidClean 150 Auto

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 15 A
  • Output Power: 2500 W
  • Output Voltage range: 1 to 30 V
  • Output Current range: 0 to 83.3 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Pump volume: 25 to 75 ml/min (0.85 to 2.54 US fl oz per minute)
  • Adjustment of Pump output volume: front panel potentiometer
  • Liquid Tank: extern
  • Weight: 8,5 kg (18.7 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8”
  • Article number: SolidClean150
  • Carbon Brush
  • Adjustable Teflon Sleeve
  • 4 m (13.1 ft) ground cable with 250A clamp (10 mm² / 0.0155 in²)
  • Brush handle with 3 m (9.84 ft) highly flexible cable (10 mm² / 0.0155 in²)
  • Wide-mouth container (500 ml / 16.91 fl oz) for cleaning electrolytes
  • Spray bottle (500 ml / 16.91 fl oz)
  • 1 L Cleaner
  • 1 L Polisher
  • Plastic transport case (60 x 40 x 32 cm / 23.6 x 15.7 x 12.6″)

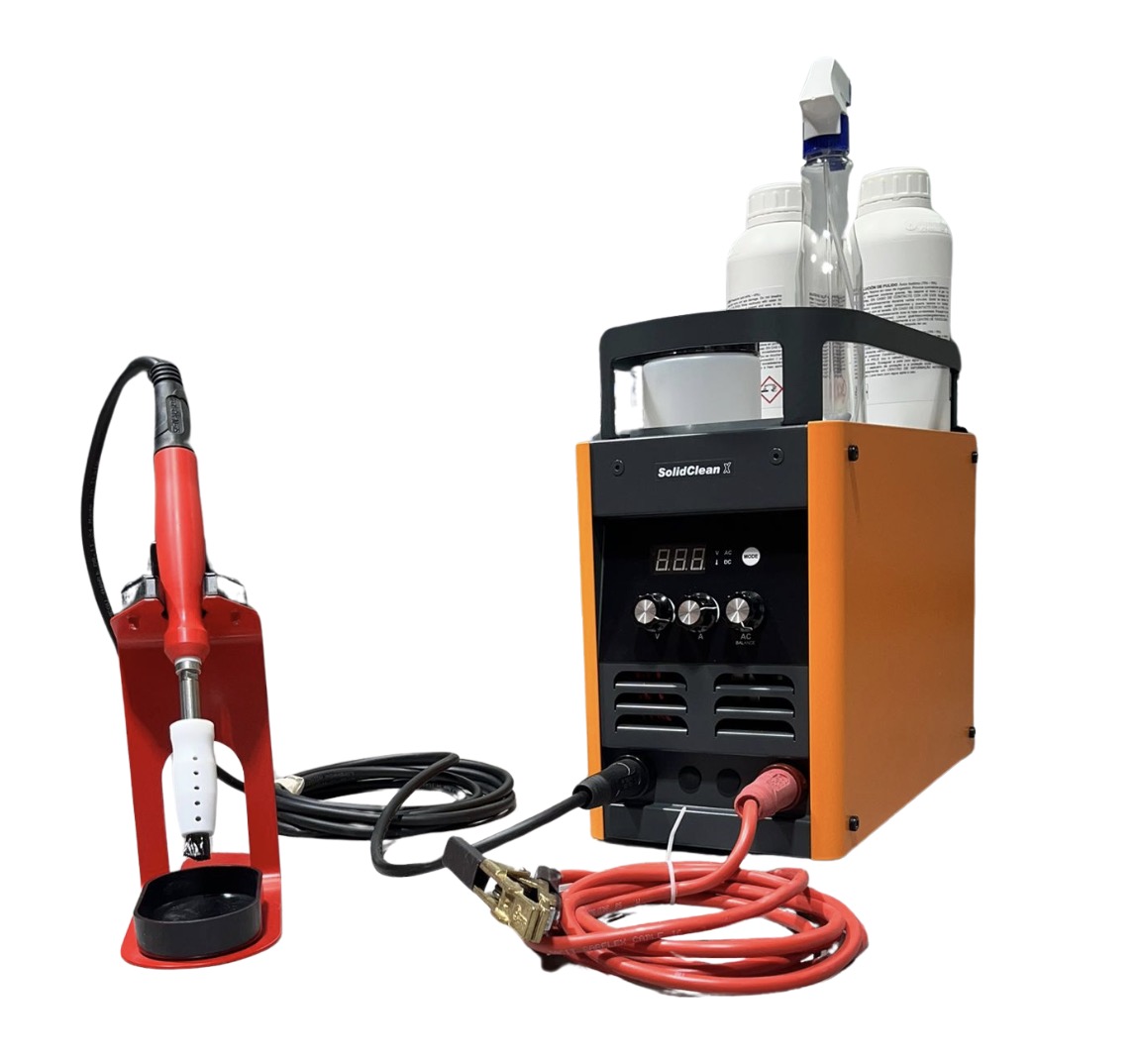

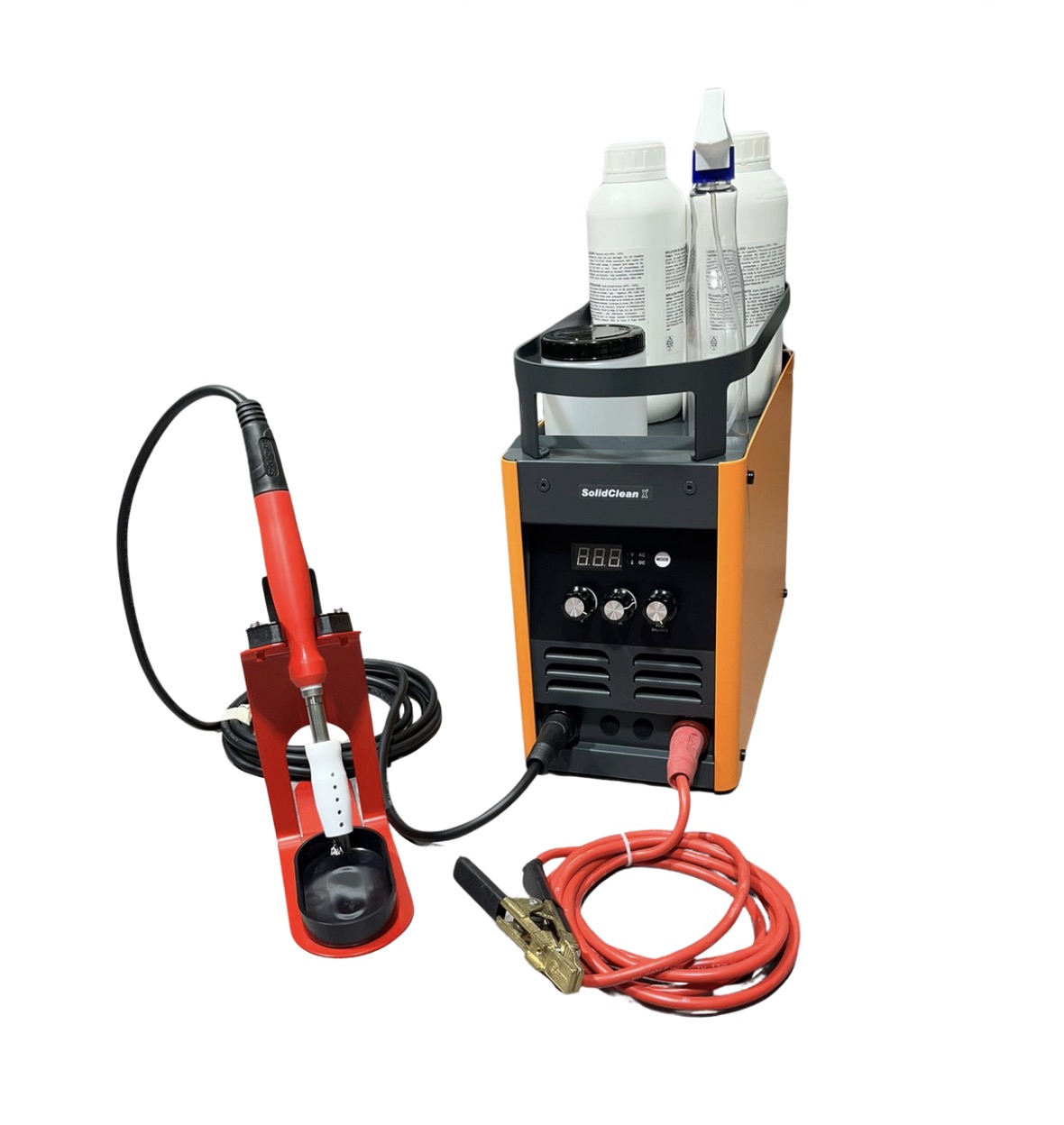

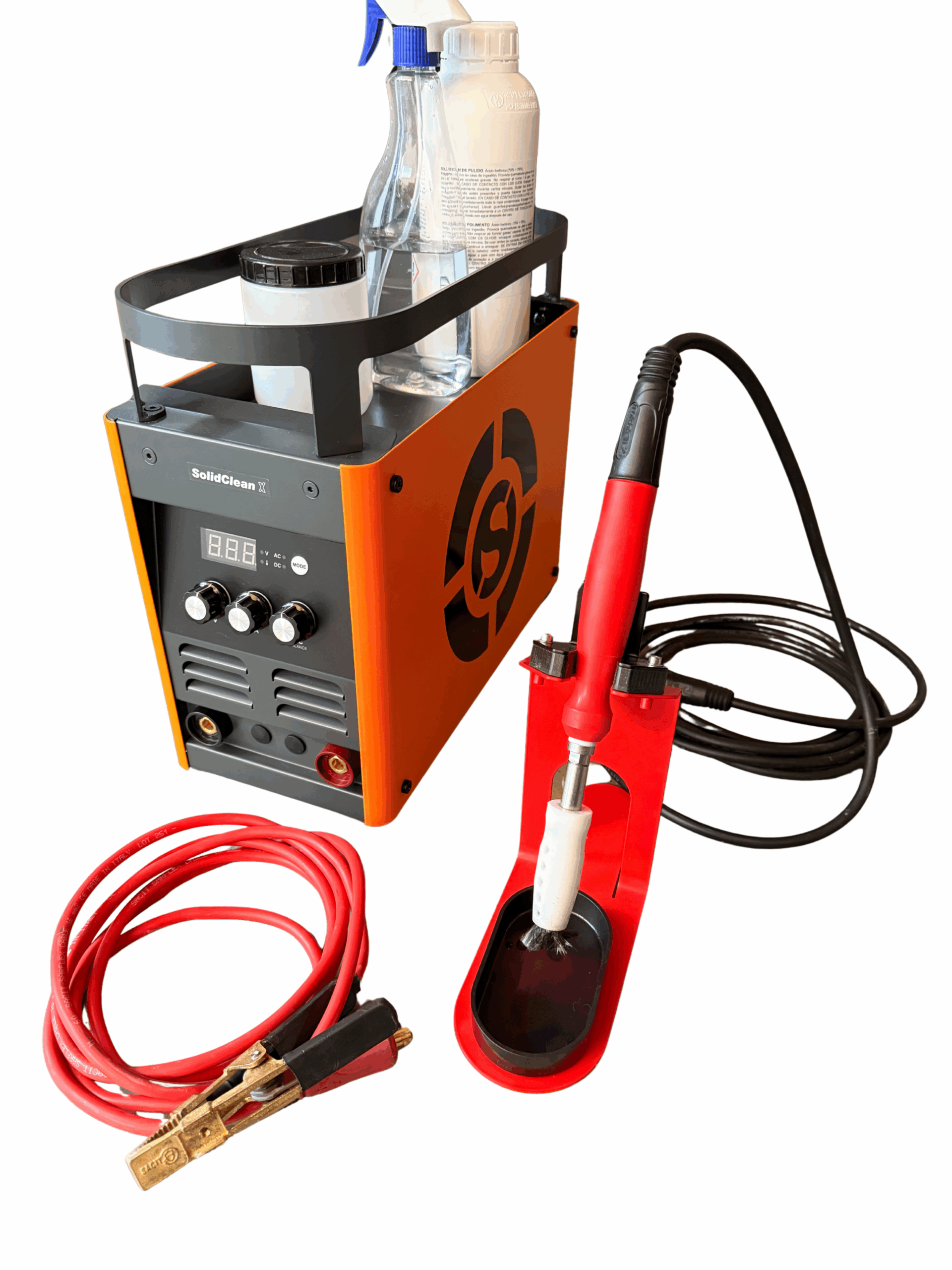

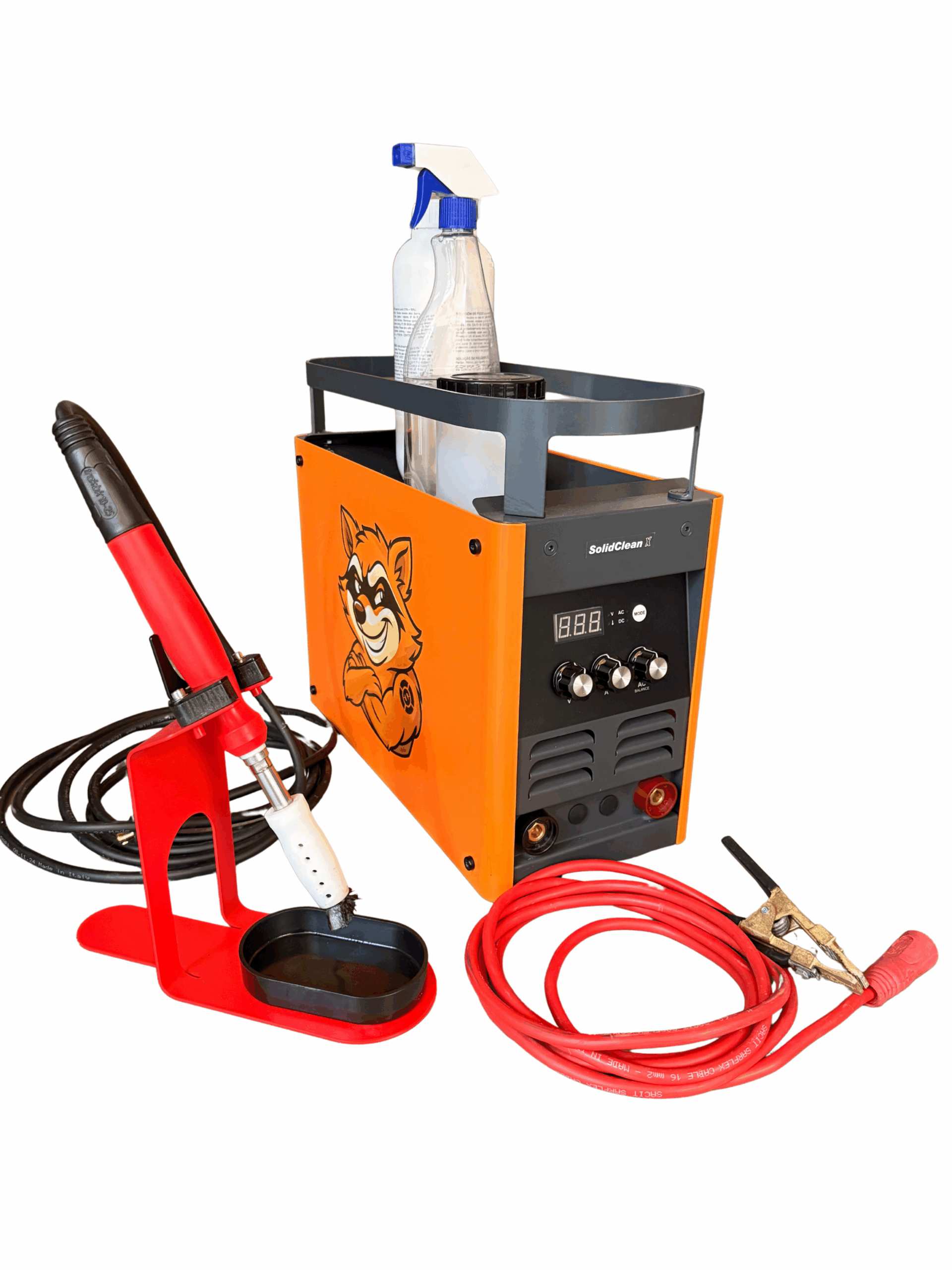

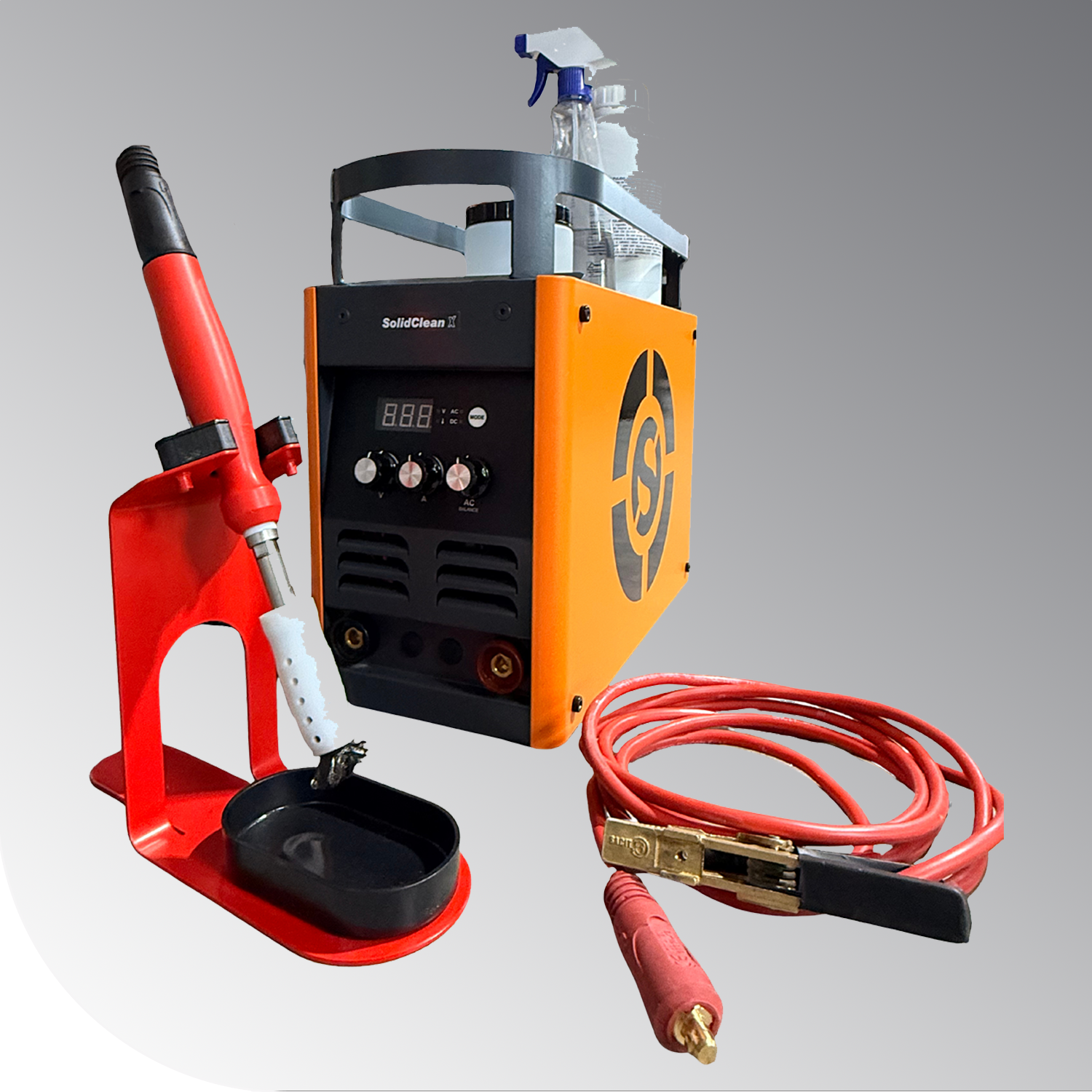

SolidClean X 80, 100, 150 Auto

SolidClean X Series – Faster. Smarter. Stronger.
The SolidClean X 80, 100, and 150 Auto are next-generation weld cleaners for TIG seams. They remove oxide films, polish discoloration in the heat-affected zone (WEZ), and passivate the surface for lasting corrosion protection.
With a more powerful performance unit, the X Series delivers faster and deeper cleaning. The enhanced control system offers precise parameter settings, while the redesigned housing is both robust and modern.
All models are built for professional use with a high duty-cycle. The X 150 Auto also features automatic liquid feeding for maximum efficiency.

  • Quick and environmentally safe electro-chemical cleaning of stainless steel-TIG-welding seams
  • Without use of toxic bating products
  • Compact case
  • High duty-cycle
  • Momentary passivating of the cleaned stainless steel surfaces
  • Outstanding corrosion resistance of the cleaned surfaces
  • No mordant-borders
  • No colour- and structure-changes of the metal surfaces
  • Free from hydrogen fluoride- and nitric-acid
  • DC – AC/DC selection

SolidClean X 80

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 6.5 A
  • Output Power: 1200 W
  • Output Voltage range: 1 to 12 V
  • Output Current range: 100 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Weight: 7,5 kg (16.5 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8”
  • Article number: SolidCleanX80

SolidClean X 100

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 11 A
  • Output Power: 2000 W
  • Output Voltage range: 1 to 24 V
  • Output Current range: 83.3 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Weight: 8,5 kg (18.7 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8”
  • Article number: SolidCleanX100

SolidClean X 150 Auto

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 15 A
  • Output Power: 2500 W
  • Output Voltage range: 1 to 30 V
  • Output Current range: 83.3 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Pump volume: 25 to 75 ml/min (0.85 to 2.54 US fl oz per minute)
  • Adjustment of Pump output volume: front panel potentiometer
  • Liquid Tank: extern
  • Weight: 11,5 kg (25.3 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8”
  • Article number: SolidCleanX150
  • Carbon Brush
  • Adjustable Teflon Sleeve
  • 4 m (13.1 ft) ground cable with 250A clamp (10 mm² / 0.0155 in²)
  • Brush handle with 3 m (9.84 ft) highly flexible cable (10 mm² / 0.0155 in²)
  • Wide-mouth container (500 ml / 16.91 fl oz) for cleaning electrolytes
  • Spray bottle (500 ml / 16.91 fl oz)
  • 1 L Cleaner
  • 1 L Polisher
  • Plastic transport case (60 x 40 x 32 cm / 23.6 x 15.7 x 12.6″)

Consumables

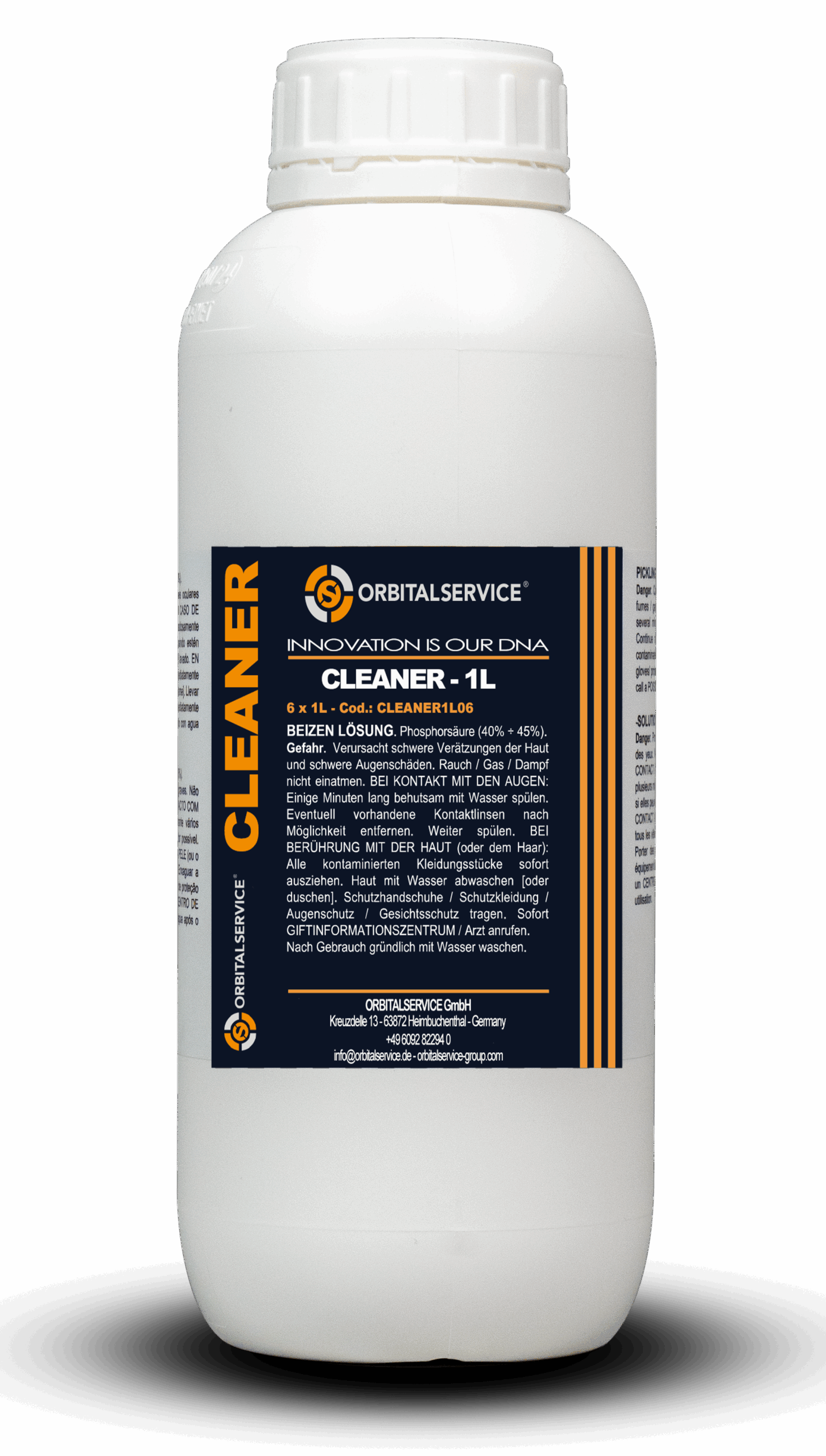

  • Liquid Cleaner 6 x 1L
    • Article number: SCCleaner6
  • Liquid Cleaner 5L
    • Article number: SCCleaner5
  • Liquid Polisher 6 x 1L
    • Article number: SCPolisher6

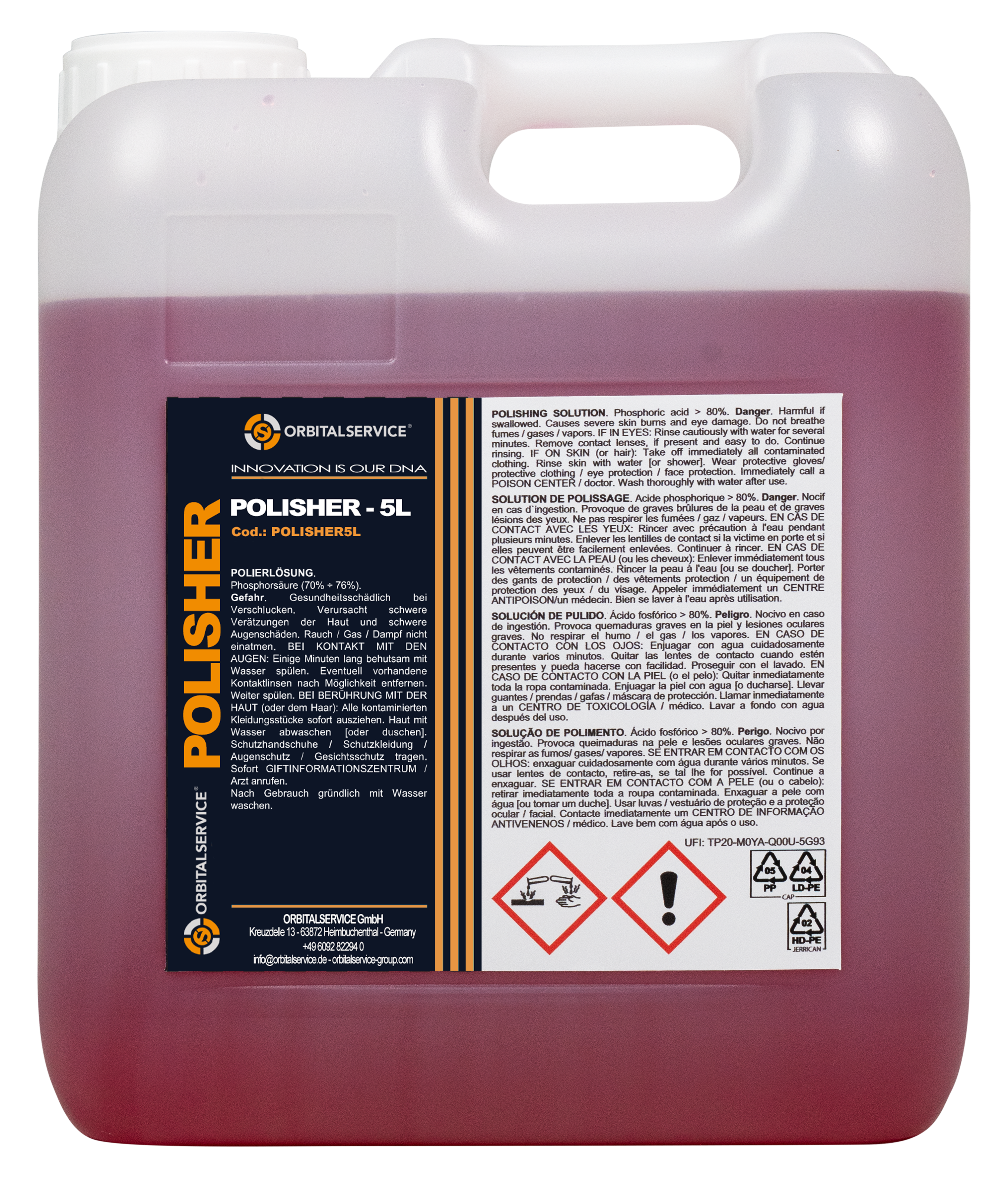

  • Liquid Polisher 5L
    • Article number: SCPolisher5

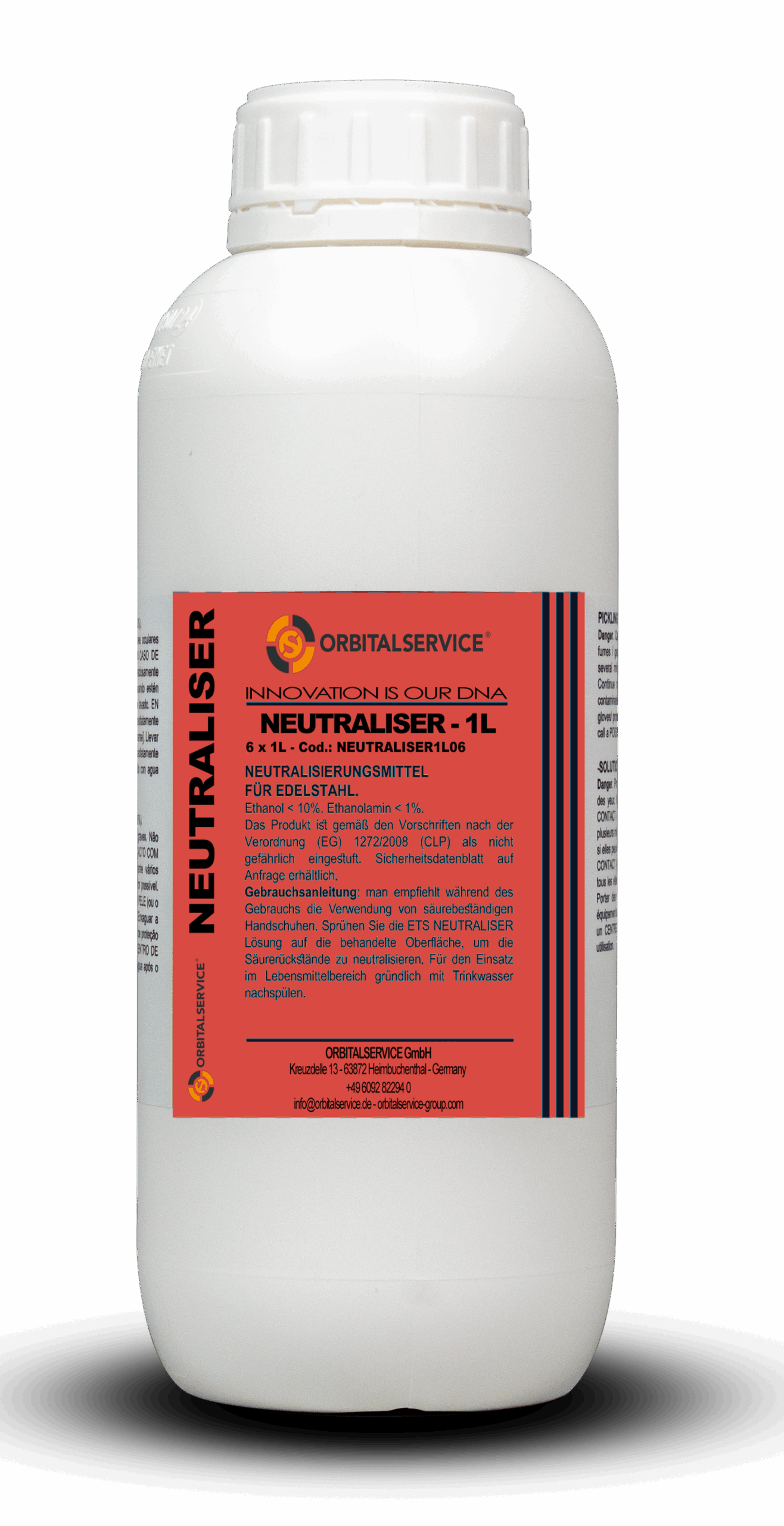

  • Liquid Neutralizer 6 x 1L
    • Article number: SCNeutralizer6

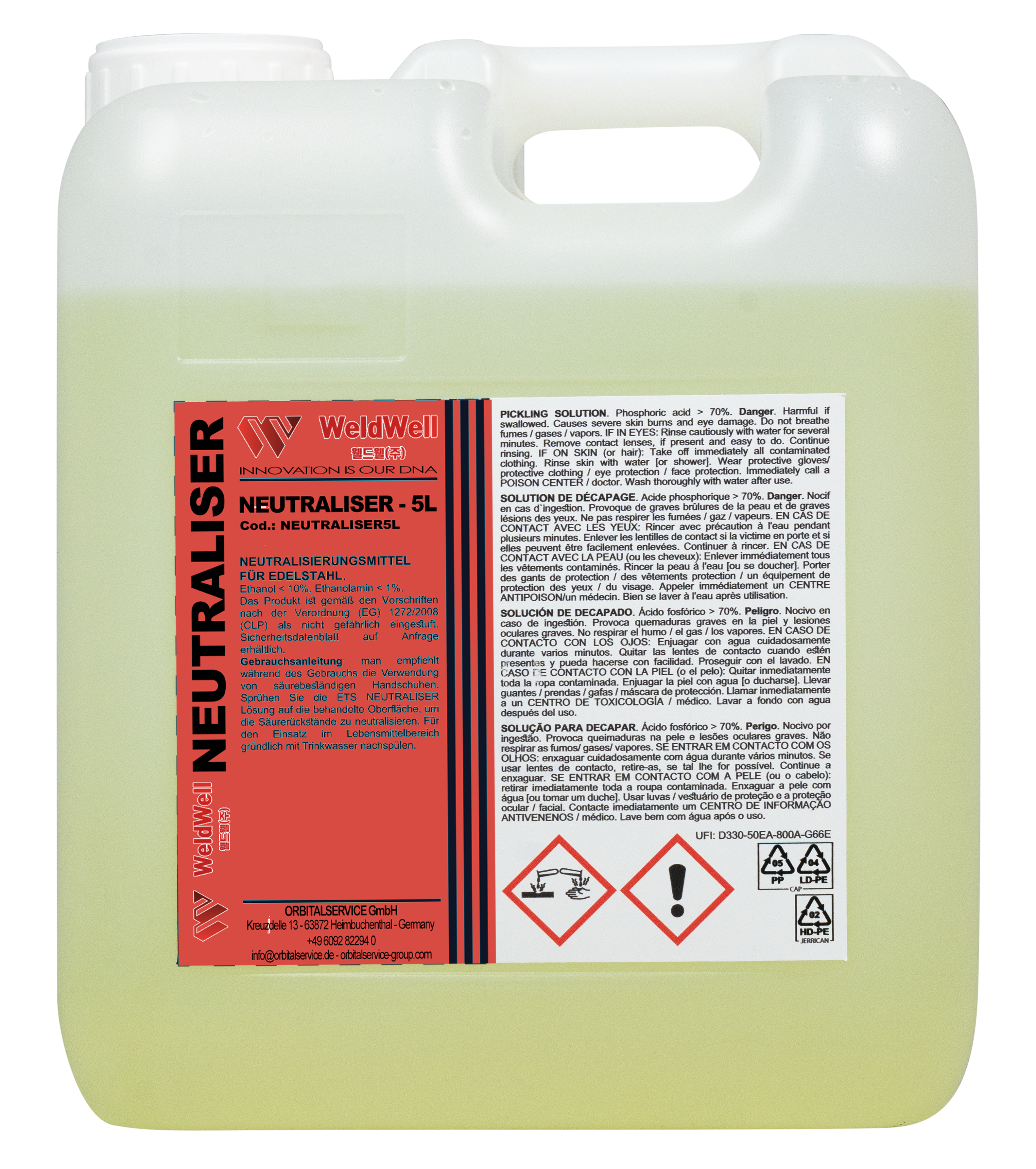

  • Liquid Neutralizer 5L
    • Article number: SCNeutralizer5

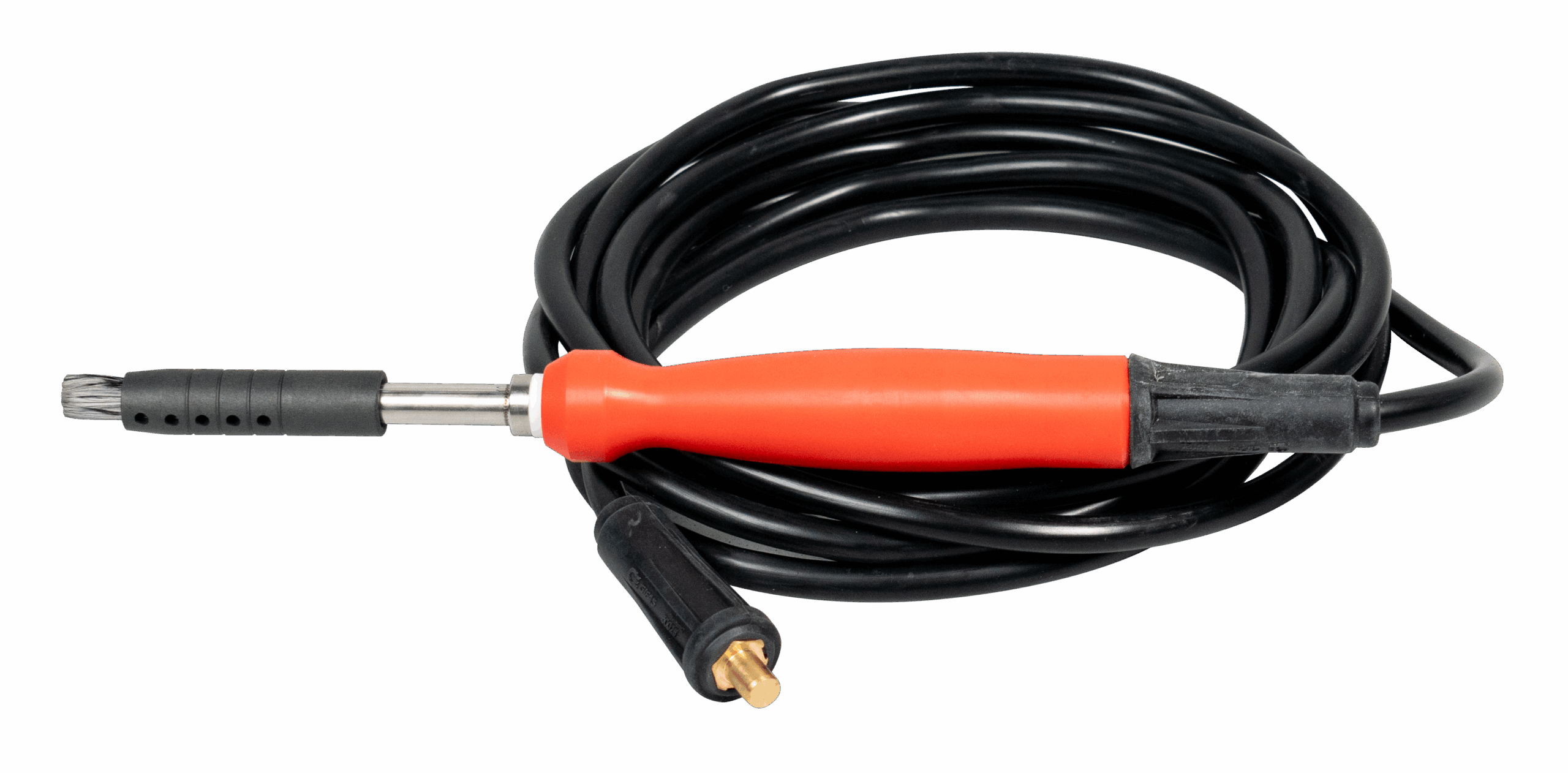

  • Carbon fiber brush 10 mm / 12 mm / 15 mm

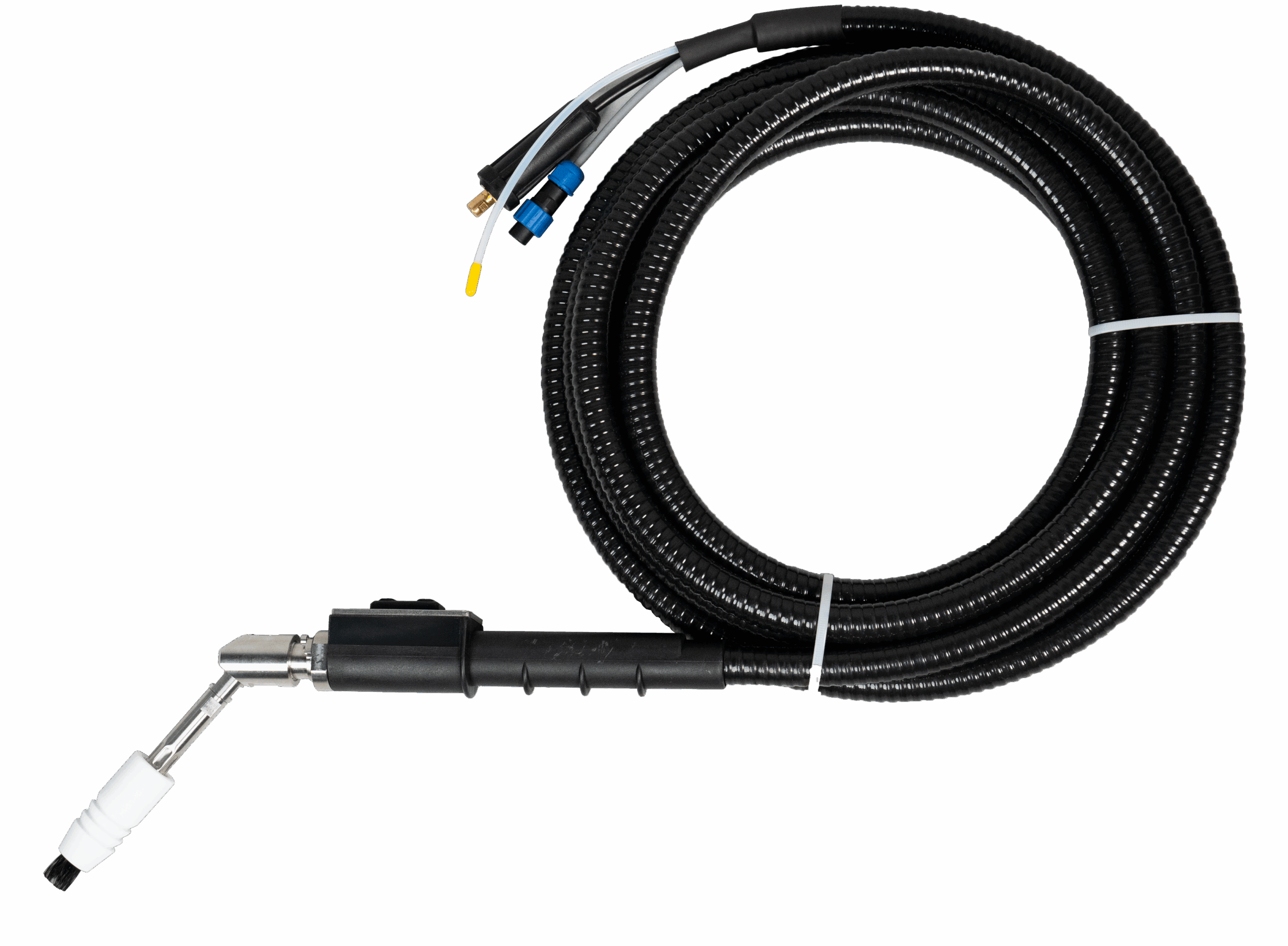

  • Automatic carbon fiber brush

Do you have questions about our products or would you like an individual offer? Please do not hesitate to contact us.

You would like to recommend our products? With pleasure.
