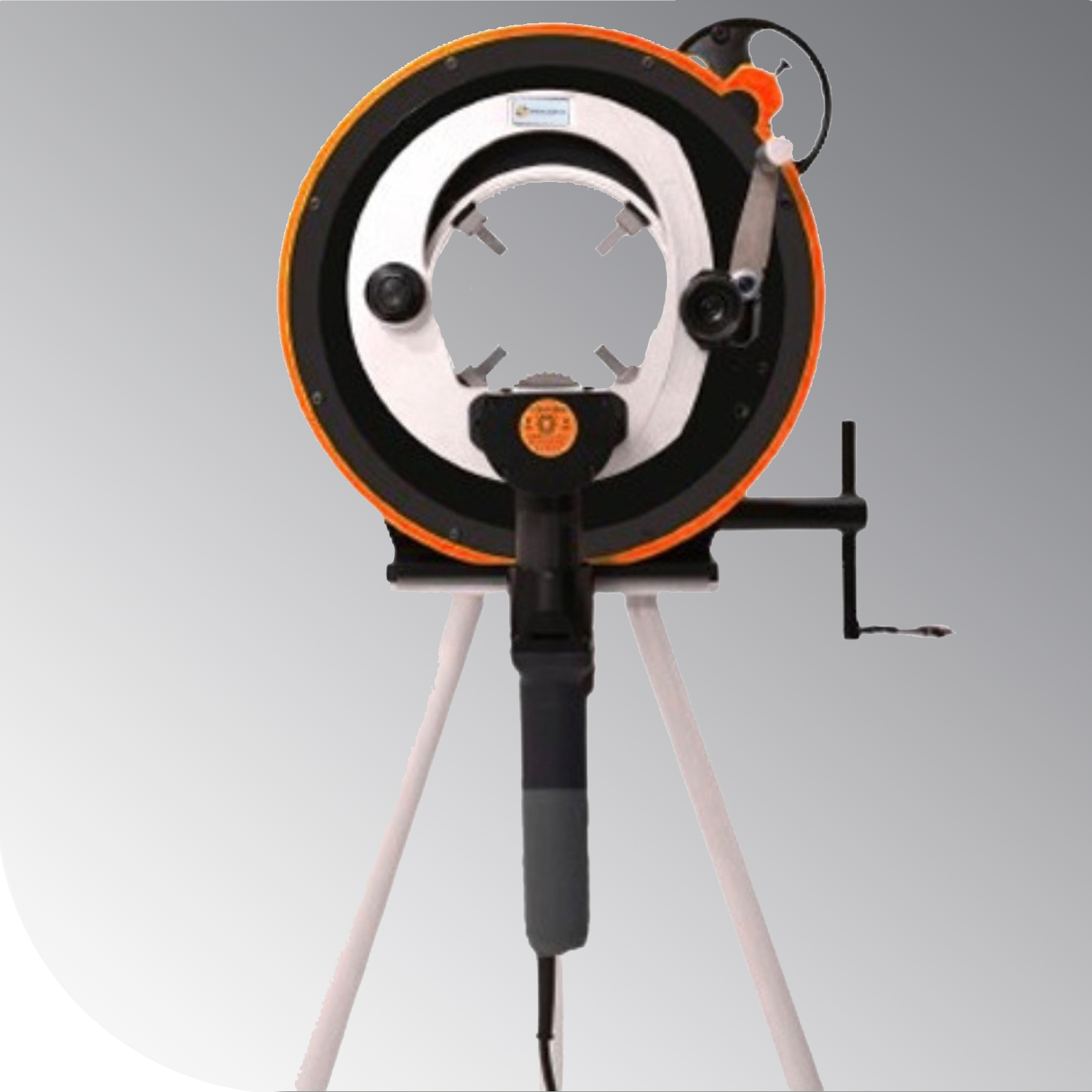

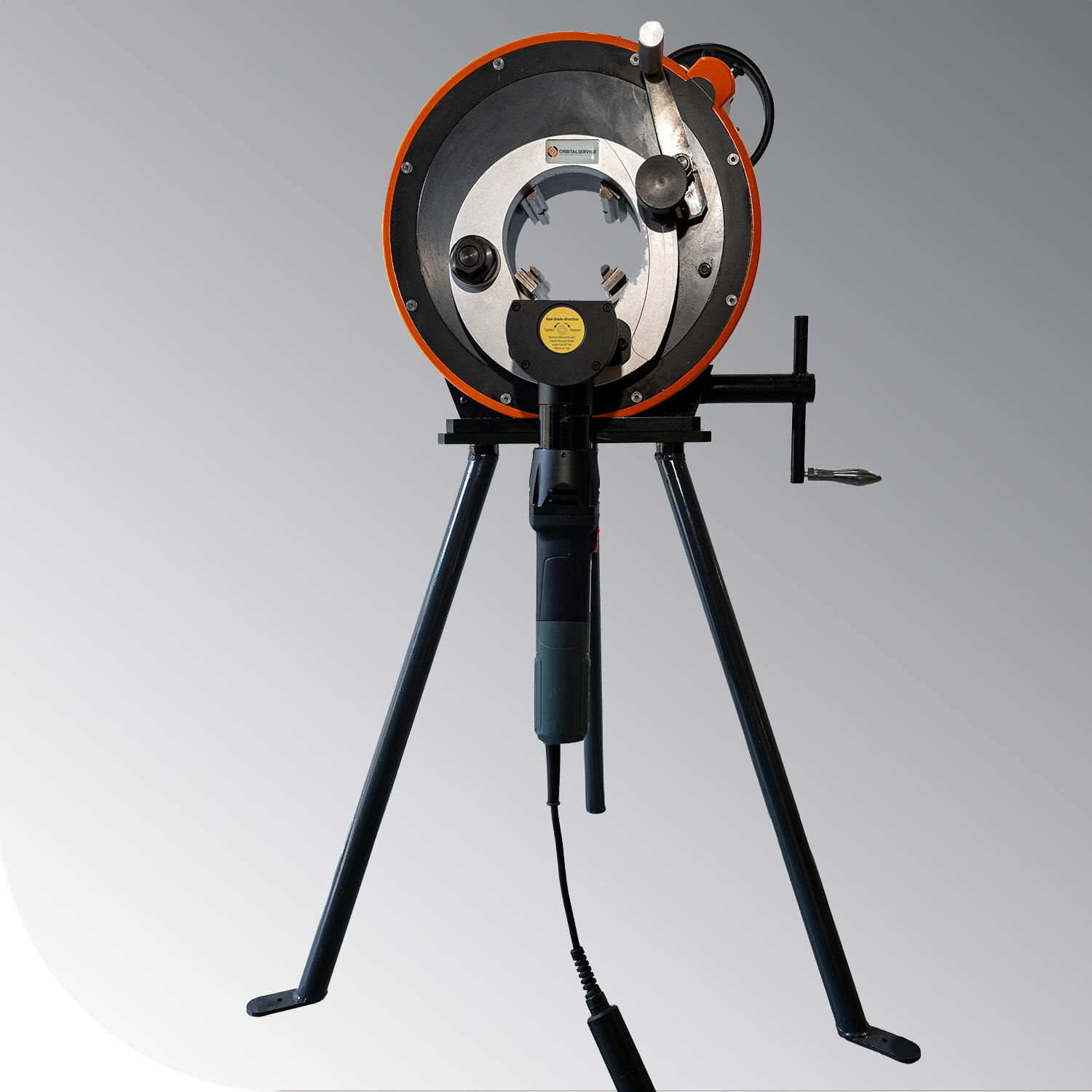

OTS-3-4-6-8-12 Pipe Cutting Machines
Compact and lightweight machines for pipes ranging from Ø 6 to 330 mm (0.236” to 12”).
Fast, burr-free, and precise cutting within 0.25 mm (0.009’’) tolerance. Ergonomic handwheel extends the lifespan of saw blades. Powerful, detachable motor with adjustable speed control.

OTS3
OTS Series

OTS-3

For pipe OD from 6 to 80 mm (0.236″ to 3.149″)

  • Cutting range: 6 to 80 mm / 0.236 to 3.149″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 4
  • Saw motor (optional):
    • 230V / 1300W
      • Article number: OTSM1230
    • 230V / 1500W
      • Article number: OTSM2230
    • 110V / 1500W
      • Article number: OTSM2110
  • Input voltage (depending on the version): 110V – 230V / 50Hz – 60Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 31 kg / 68 lb
  • Article number: OTS3100

Download
OTS-4
OTS Series

OTS-4

For pipe OD from 12 to 120 mm (0.472″ to 4.724″)

  • Cutting range: 12 to 120 mm / 0.472 to 4.724″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 4
  • Saw motor (optional):
    • 230V / 1300W
      • Article number: OTSM1230
    • 230V / 1500W
      • Article number: OTSM2230
    • 110V / 1500W
      • Article number: OTSM2110
  • Input voltage (depending on the version): 110V – 230V / 50Hz – 60Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 40 kg / 88 lb
  • Article number: OTS4100

Download
OTS-6
OTS Series

OTS-6

For pipe OD from 16 to 171 mm (0.63″ to 6.73″)

  • Cutting range: 16 to 171 mm / 0.63 to 6.73″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 4
  • Saw motor (optional):
    • 230V / 1300W
      • Article number: OTSM1230
    • 230V / 1500W
      • Article number: OTSM2230
    • 110V / 1500W
      • Article number: OTSM2110
  • Input voltage (depending on the version): 110V – 230V / 50Hz – 60Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 55 kg / 121 lb
  • Article number: OTS6100

Download
OTS8
Pipe Cutter OTS-8
Pipe Cutter OTS-8
Pipe Cutter OTS-8
Pipe Cutter OTS-8
Pipe Cutter OTS-8
Pipe Cutter OTS-8

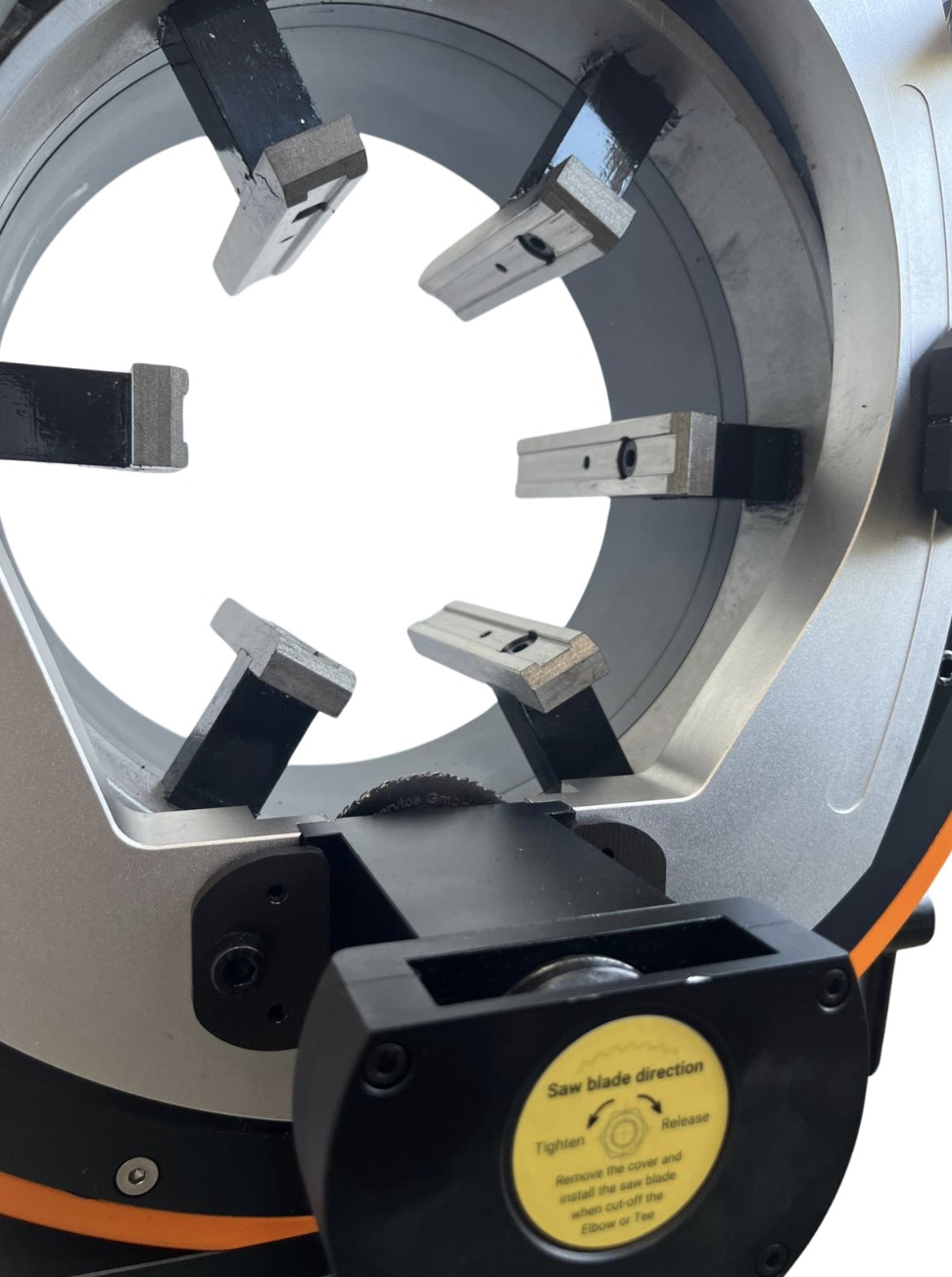

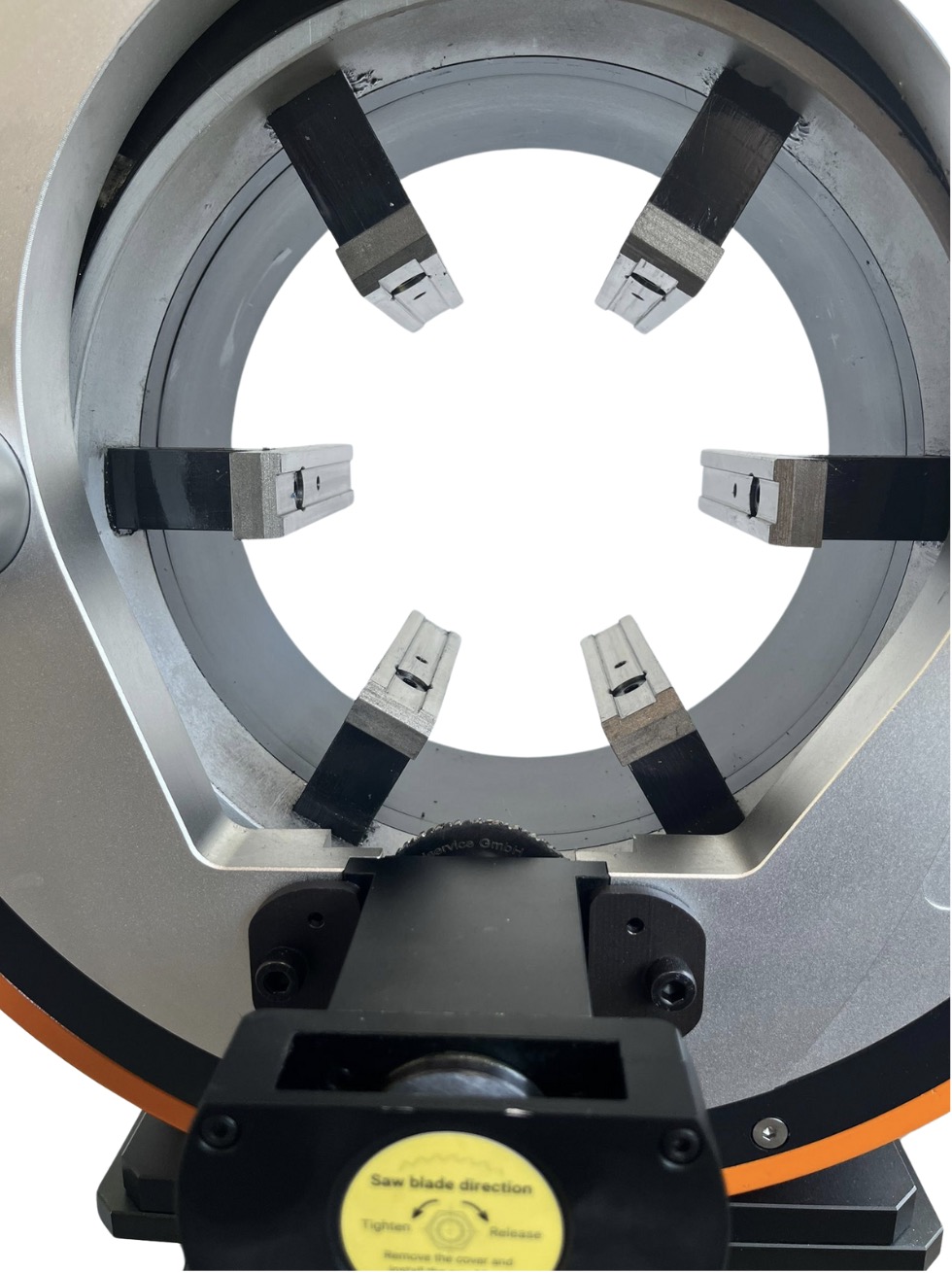

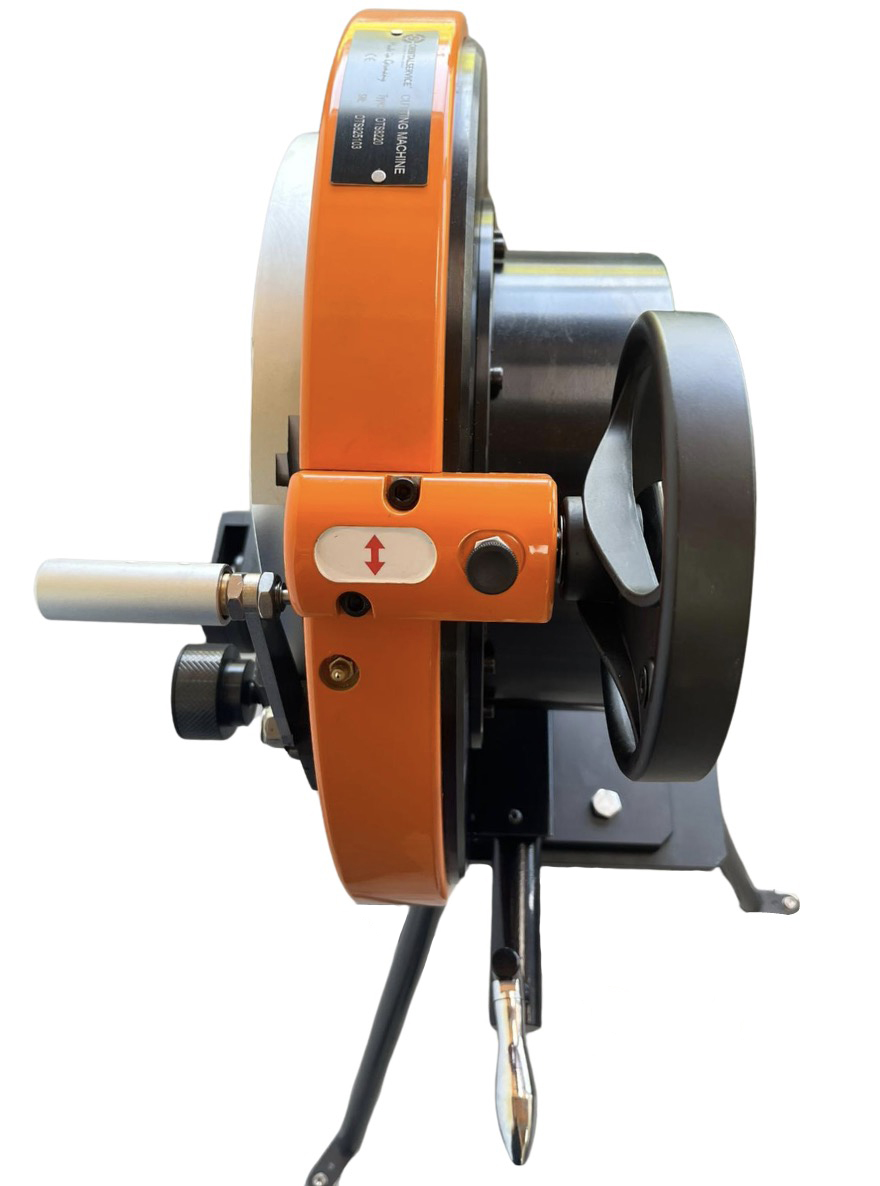

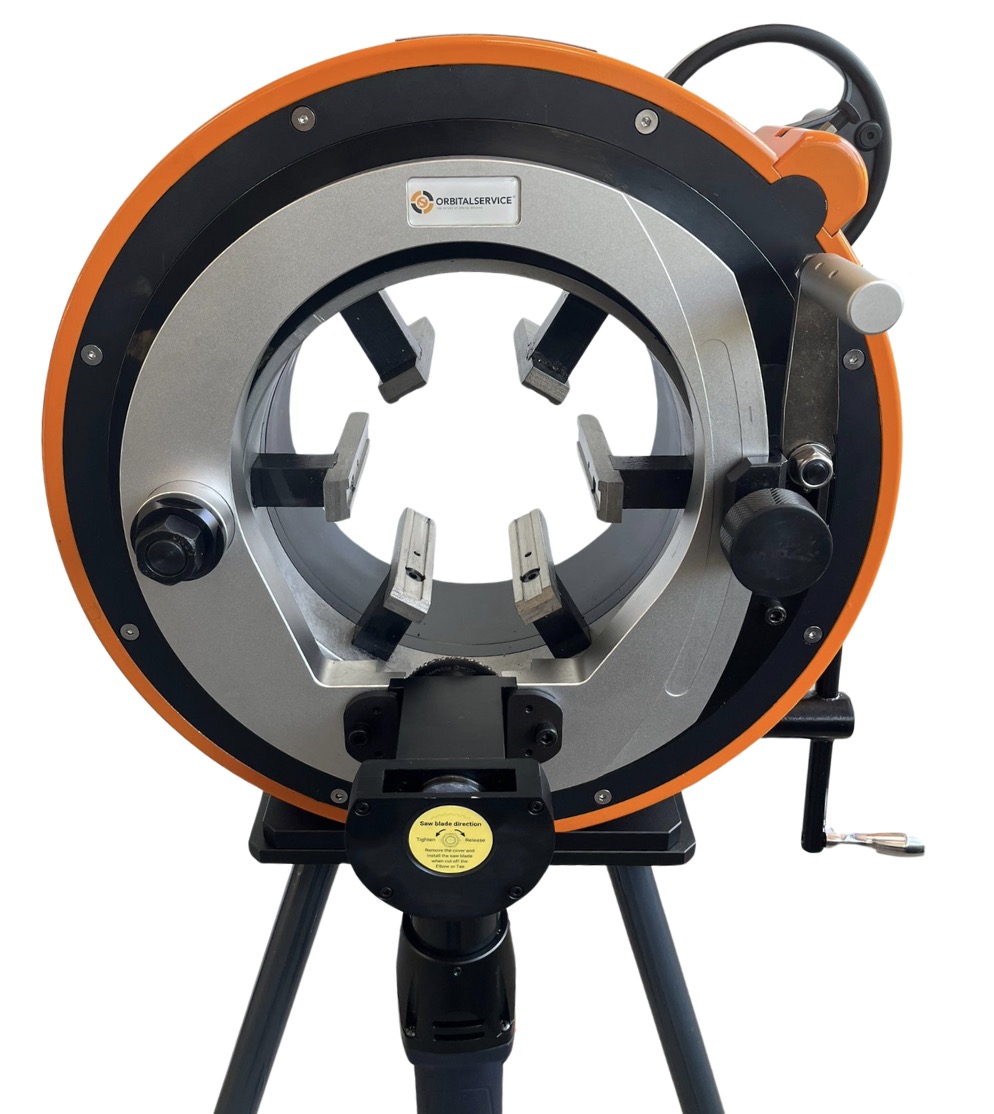

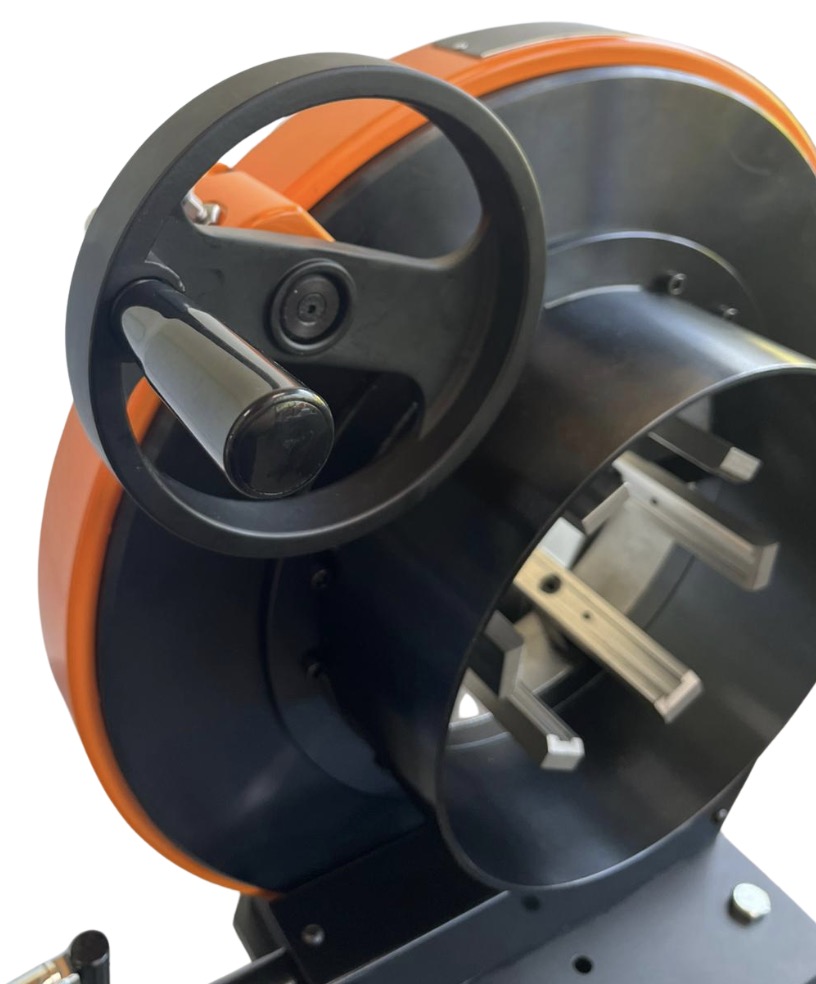

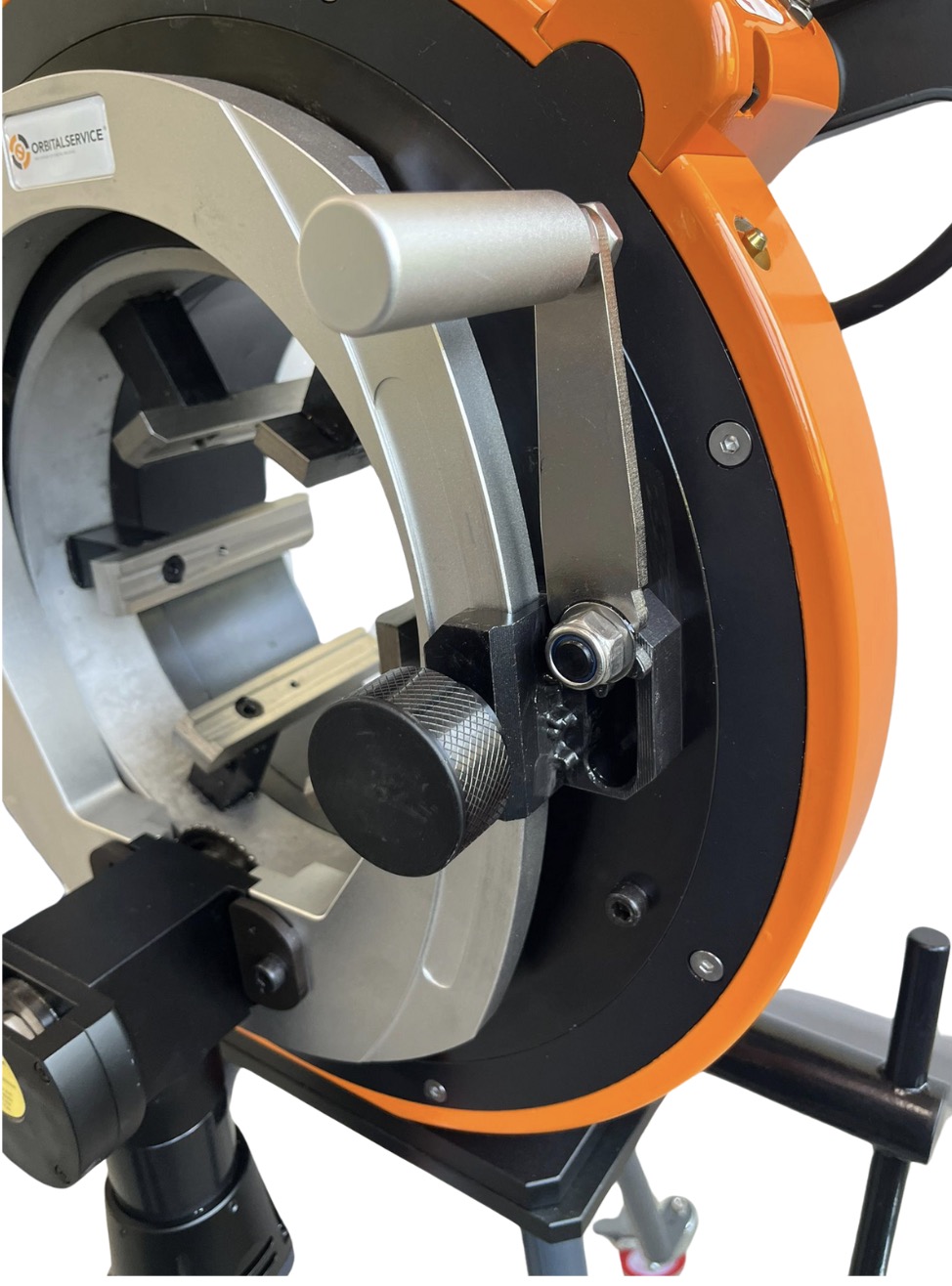

OTS-8

For pipe OD from 55 to 228 mm (2.165″ to 8.976″)

  • Cutting range: 55 to 228 mm / 2.165 to 8.976″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 6
  • Saw motor (optional):
    • 230V / 1300W
      • Article number: OTSM1230
    • 230V / 1500W
      • Article number: OTSM2230
    • 110V / 1500W
      • Article number: OTSM2110
  • Input voltage (depending on the version): 110V – 230V / 50Hz – 60Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 60 kg / 132 lb
  • Article numbers: OTS8100

Download
OTS-12
OTS Series

OTS-12

For pipe OD from 140 to 330 mm (5.512″ to 12.992″)

  • Cutting range: 140 to 330 mm / 5.512 to 12.992″
  • Wall thickness: ⩽ 5 mm / 0.197″
  • Stainless steal clamping jaws: 6
  • Saw motor (optional):
    • 230V / 1300W
      • Article number: OTSM1230
    • 230V / 1500W
      • Article number: OTSM2230
    • 110V / 1500W
      • Article number: OTSM2110
  • Input voltage (depending on the version): 110V – 230V / 50Hz – 60Hz / 1-phase
  • Speed range: 90 – 270 rpm
  • Weight (without stand): 81 kg / 178 lb
  • Article numbers: OTS12100

Download
SB8084 blade
SB8080 blade
SB6872 blade
SB6844 blade
OTS Blade box set
OTSUB30r
OTSUB37.5r

Cutting and bevelling blades

Our cutting and bevelling blades are fully compatible with our OTS Series as well as with all major competitors’ orbital cutting machines, including AXXAIR, Orbitalum, Orbitec, and OWT.

  • Saw blades:

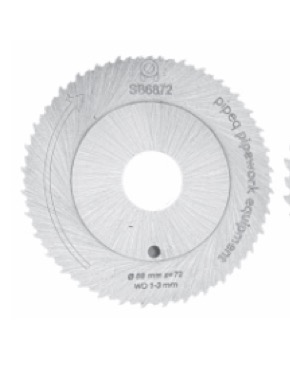

    • Saw Blade diameter 68mm, 72 teeth, 1-3mm wall thickness:
      • Article number: SB6872

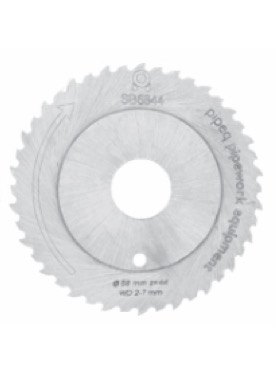

    • Saw Blade diameter 68mm, 44 teeth, 2-7mm wall thickness:
      • Article number: SB6844
    • Saw Blade diameter 80mm, 80 teeth, 1-3mm wall thickness:
      • Article number: SB8080
    • Saw Blade diameter 80mm, 54 teeth, 2-7mm wall thickness:
      • Article number: SB8054
  • Bevelling blades:
    • Chamfering cutter V-seam, chamfering angle 30°, chamfering eyelet max 84mm (0.331”), Ø70mm (2.756″):
      • Article number: OTSUB30R
    • Chamfering cutter V-seam, chamfering angle 37.5°, chamfering eyelet max 8,4mm (0.331′), Ø 70mm (2.756”):
      • Article number: OTSUB37.5R

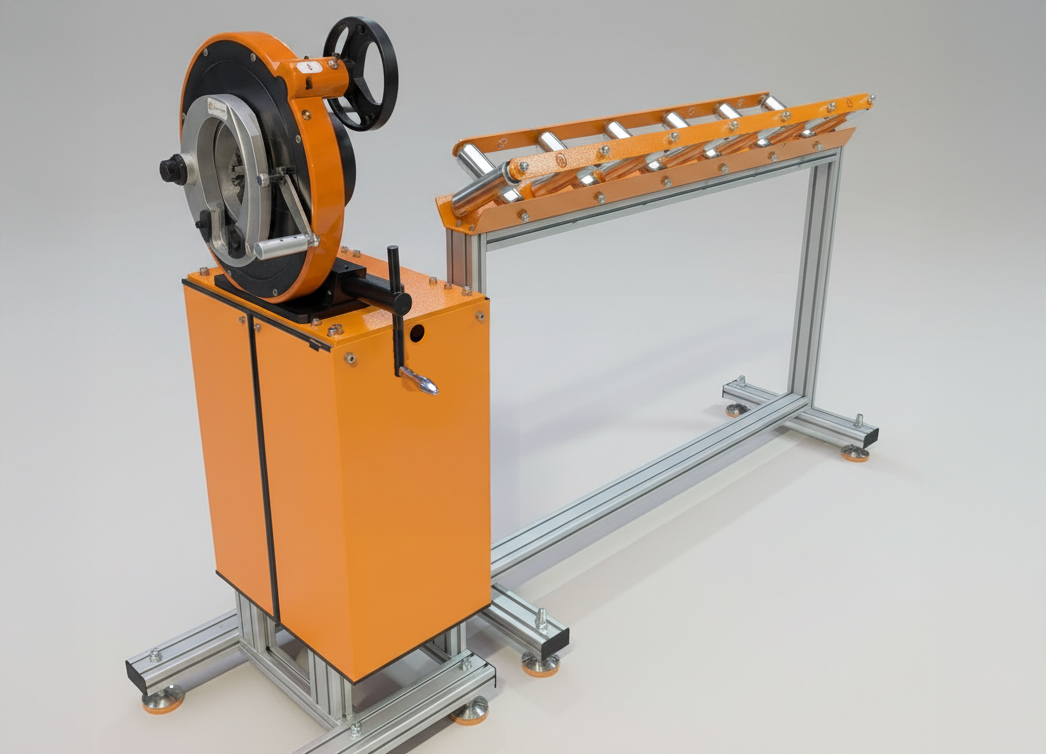

Motorized bench OTS

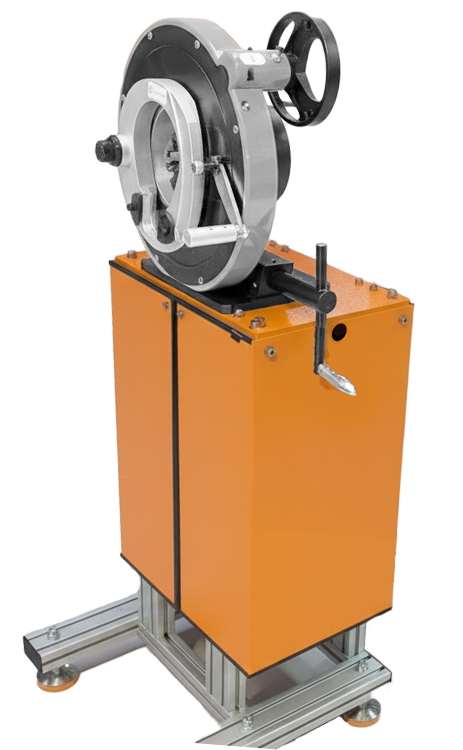

Lifting table with mechanical adjustment
2 benches

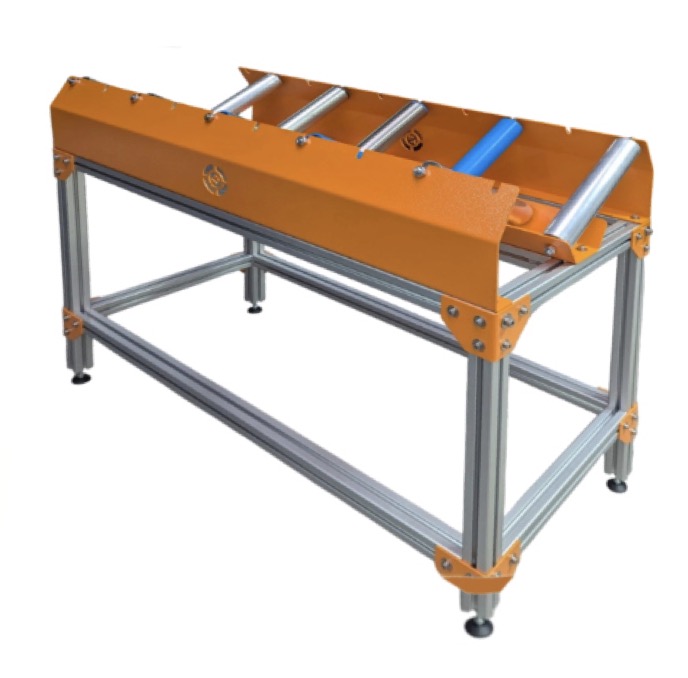

Mechanized bench and extension modules for the OTS pipe cutters

  • Lifting table with mechanical height adjustment plate for tube saw from OTS3 to OTS12 (without bench and saw):
    • Article number: OTSB1
  • 1.1m extension bench:
    • Article number: OTSB2
Accessories OTS - Standing tripod
Accessories OTS - Metal transport box

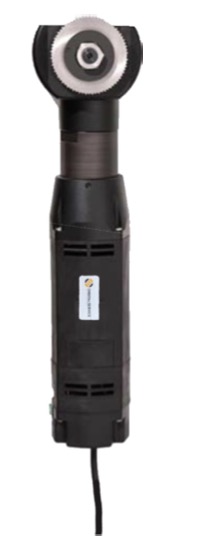

Accessories OTS - Motor 1500W

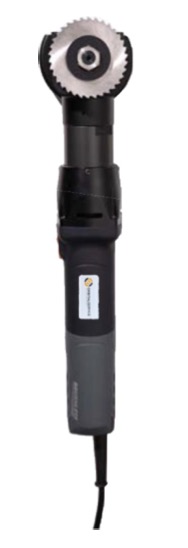

Accessories OTS - Motor 1300W
OTS Motor transport case
OTS Motor transport case
OTS Motor transport case

Accessories for the OTS pipe cutters

  • Tripod (3 legs support) for Orbital Tube Saw:
    • Article number: OTST
  • Motor for Orbital Tube Saw 230V / 1300W:
    • Article number: OTSM1230
  • Motor for Orbital Tube Saw 230V / 1500W:
    • Article number: OTSM2230
  • Motor for Orbital Tube Saw 110V / 1500W:
    • Article number: OTSM2110
  • Aluminium Transport Box for OTS tube saw:
    • Article number: OTSAC
