ORBITALSERVICE®

Orbital Welding Bug

ORBITALSERVICE®

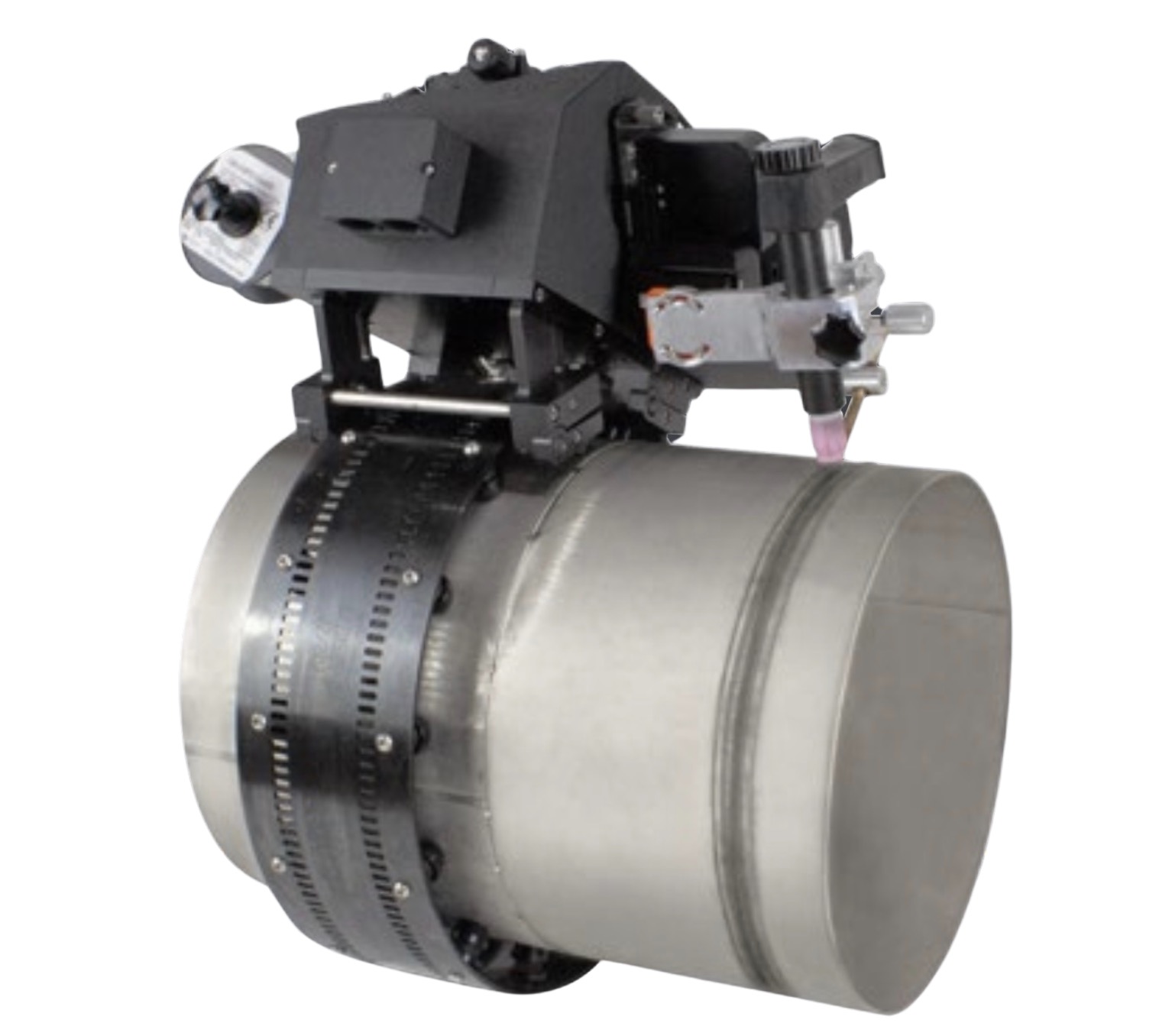

The OrbiBug is a TIG welding robot which is fitted on a ring and drives around a pipe during welding.

Compact design with light weight (15 kg / 33 lbs)
Arc Voltage Control integrated to compensate 25mm/1″ stroke ( + /-12. 5mm, + /- 0.5″)
Oscillator integrated. Capacity of 25mm / 1″ stroke.
Wire feeder integrated with manual adjustment of 3 axes (X, Y and Z)
Possibility to use 1 kg / 2,2 lbs or 5 kg / 11 lbs wire spools
Manual Quick lock and unlock system to move the welding head manually
4 meters / 13 feets water cooled hose package with 90 degrees square automatic torch integrated
Every diameter needs its own ring
The minimum diameter is 200 mm / 7.874″
The maximum diameter is 1219 mm / 48″
Article numbers:
- OrbiBug: Orbbug
- Hose Package 90° water cooled 8m: SchlPa90°8mWasser
- Ring for diameter XX: RingXX
- Transport box OrbiBug: Koff273100

Do you have questions about our products or would you like an individual offer? Please do not hesitate to contact us.
