Innovative Reinigung für saubere Oberflächen

Mit unserer Auswahl an Elektropoliergeräten reinigen Sie Schweissnähte und passivieren gleichzeitig ohne Einsatz von giftigen Beizchemikalien.

Mit den innovativen Hochstromreinigungsgeräten können Schweissnähte blitzschnell von Oxidationen, Anlauffarben und sogar Verzunderungen gereinigt werden ohne Verwendung konventioneller giftiger Beizen.

Millionen kleiner Lichtbögen an den Enden unserer Kohlefaserpinsel entfernen alle Verunreinigungen auf hochlegierten Edelstählen und sogar NE-Metallen wie Kupfer.

Die Reinigungswirkung wird durch einen hohen Strom elektrochemisch in Verbindung mit der Kraft von Lichtbögen erzielt, wodurch wir auf den Einsatz wie Flusssäure oder Schwefelsäure gänzlich verzichten können. Zum Einsatz kommen nur ungiftige Elektrolyte, die auch als Lebensmittelzusatzstoff E338 Verwendung finden, wie z.B. in Cola-Getränken.

SolidClean

SolidClean 80, 100, 150 Auto

Das Reinigungsgerät SolidClean 80 entfernt schnell Anlauffarben und Oxidschichten von WIG-Schweißnähten und poliert Verfärbungen in der WEZ.
Dabei wird die Oberfläche gleichzeitig passiviert und so zuverlässig vor Korrosionsschäden geschützt. Das Gerät ist mit seiner sehr hohen Einschaltdauer für den Profianwender ausgelegt.

  • Quick and environmentally safe electro-chemical cleaning of stainless steel-TIG-welding seams
  • Without use of toxic bating products
  • Compact case
  • High duty-cycle
  • Momentary passivating of the cleaned stainless steel surfaces
  • Outstanding corrosion resistance of the cleaned surfaces
  • No mordant-borders
  • No colour- and structure-changes of the metal surfaces
  • Free from hydrogen fluoride- and nitric-acid
  • DC – AC/DC selection

SolidClean 80

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 6.5 A
  • Output Power: 1200 W
  • Output Voltage range: 1 to 12 V
  • Output Current range: 0 to 100 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Weight: 7,5 kg (16.5 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8“
  • Article number: SolidClean80

SolidClean 100

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 11 A
  • Output Power: 2000 W
  • Output Voltage range: 1 to 24 V
  • Output Current range: 0 to 83.3 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Weight: 7,5 kg (16.5 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8“
  • Article number: SolidClean100

SolidClean 150 Auto

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 15 A
  • Output Power: 2500 W
  • Output Voltage range: 1 to 30 V
  • Output Current range: 0 to 83.3 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Pump volume: 25 to 75 ml/min (0.85 to 2.54 US fl oz per minute)
  • Adjustment of Pump output volume: front panel potentiometer
  • Liquid Tank: extern
  • Weight: 8,5 kg (18.7 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8“
  • Article number: SolidClean150

  • Carbon Brush
  • Adjustable Teflon Sleeve
  • 4 m (13.1 ft) ground cable with 250A clamp (10 mm² / 0.0155 in²)
  • Brush handle with 3 m (9.84 ft) highly flexible cable (10 mm² / 0.0155 in²)
  • Wide-mouth container (500 ml / 16.91 fl oz) for cleaning electrolytes
  • Spray bottle (500 ml / 16.91 fl oz)
  • 1 L Cleaner
  • 1 L Polisher
  • Plastic transport case (60 x 40 x 32 cm / 23.6 x 15.7 x 12.6″)

Download
SolidClean X
SolidClean X

SolidClean X 80, 100, 150 Auto

SolidClean X Series – Faster. Smarter. Stronger.
The SolidClean X 80, 100, and 150 Auto are next-generation weld cleaners for TIG seams. They remove oxide films, polish discoloration in the heat-affected zone (WEZ), and passivate the surface for lasting corrosion protection.
With a more powerful performance unit, the X Series delivers faster and deeper cleaning. The enhanced control system offers precise parameter settings, while the redesigned housing is both robust and modern.
All models are built for professional use with a high duty-cycle. The X 150 Auto also features automatic liquid feeding for maximum efficiency.

  • Quick and environmentally safe electro-chemical cleaning of stainless steel-TIG-welding seams
  • Without use of toxic bating products
  • Compact case
  • High duty-cycle
  • Momentary passivating of the cleaned stainless steel surfaces
  • Outstanding corrosion resistance of the cleaned surfaces
  • No mordant-borders
  • No colour- and structure-changes of the metal surfaces
  • Free from hydrogen fluoride- and nitric-acid
  • DC – AC/DC selection

SolidClean X 80

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 6.5 A
  • Output Power: 1200 W
  • Output Voltage range: 1 to 12 V
  • Output Current range: 100 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Weight: 7,5 kg (16.5 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8“
  • Article number: SolidCleanX80

SolidClean X 100

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 11 A
  • Output Power: 2000 W
  • Output Voltage range: 1 to 24 V
  • Output Current range: 83.3 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Weight: 8,5 kg (18.7 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8“
  • Article number: SolidCleanX100

SolidClean X 150 Auto

  • Input Voltage: 200-250 VAC / 50-60 Hz / Single Phase
  • Input Current (230V): 15 A
  • Output Power: 2500 W
  • Output Voltage range: 1 to 30 V
  • Output Current range: 83.3 A
  • Operating Temperature: -10 to +40°C (14°F to 104°F)
  • Cooling: forced air
  • Pump volume: 25 to 75 ml/min (0.85 to 2.54 US fl oz per minute)
  • Adjustment of Pump output volume: front panel potentiometer
  • Liquid Tank: extern
  • Weight: 11,5 kg (25.3 lbs)
  • Dimensions: 40 x 18 x 30 cm / 15.7 x 7.1 x 11.8“
  • Article number: SolidCleanX150

  • Carbon Brush
  • Adjustable Teflon Sleeve
  • 4 m (13.1 ft) ground cable with 250A clamp (10 mm² / 0.0155 in²)
  • Brush handle with 3 m (9.84 ft) highly flexible cable (10 mm² / 0.0155 in²)
  • Wide-mouth container (500 ml / 16.91 fl oz) for cleaning electrolytes
  • Spray bottle (500 ml / 16.91 fl oz)
  • 1 L Cleaner
  • 1 L Polisher
  • Plastic transport case (60 x 40 x 32 cm / 23.6 x 15.7 x 12.6″)

Download
Cleaner-5L
Polisher-1L
Polisher-5L
Netraliser-1L
Neutraliser-5L

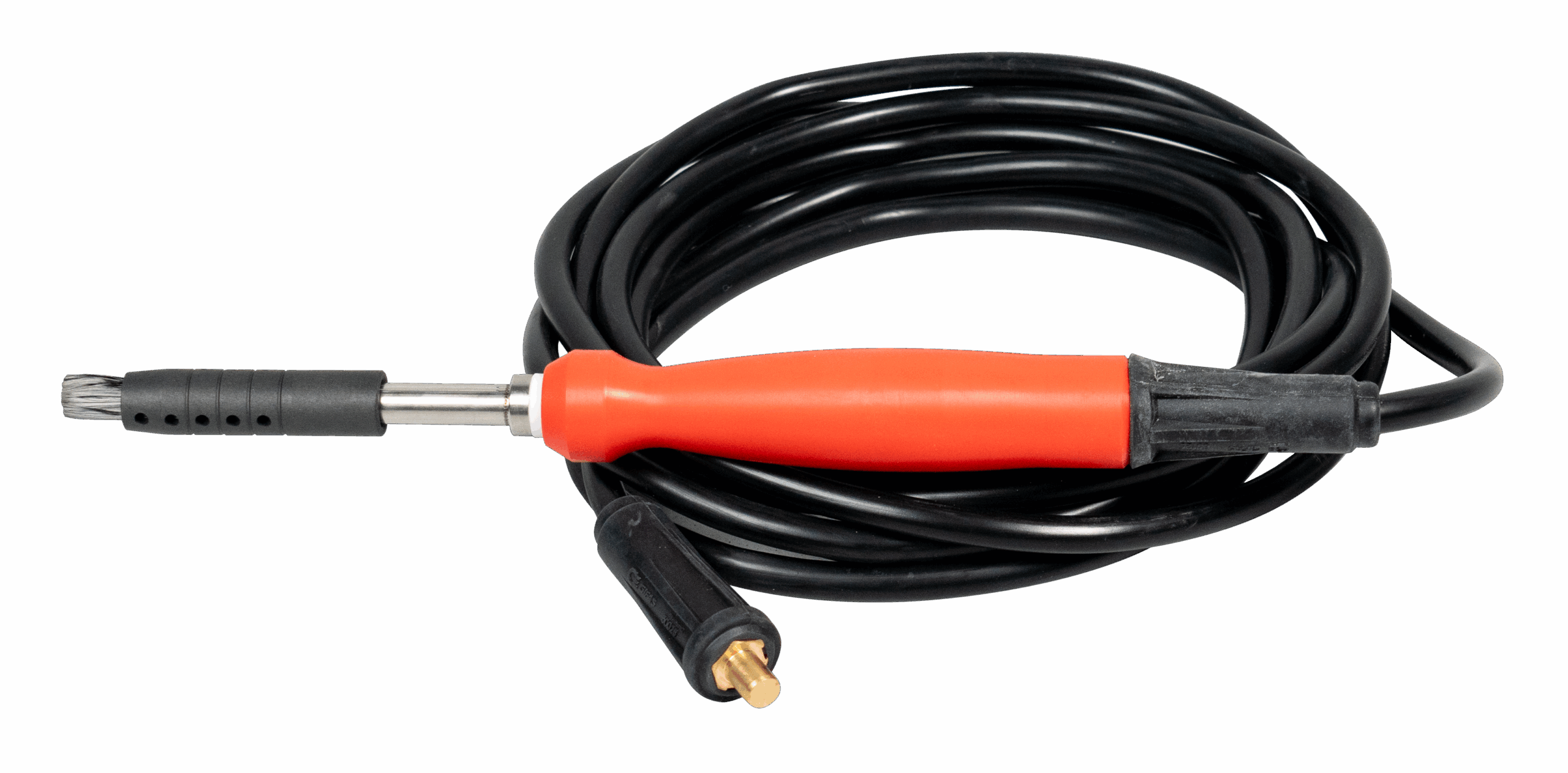

Carbon fiber brush

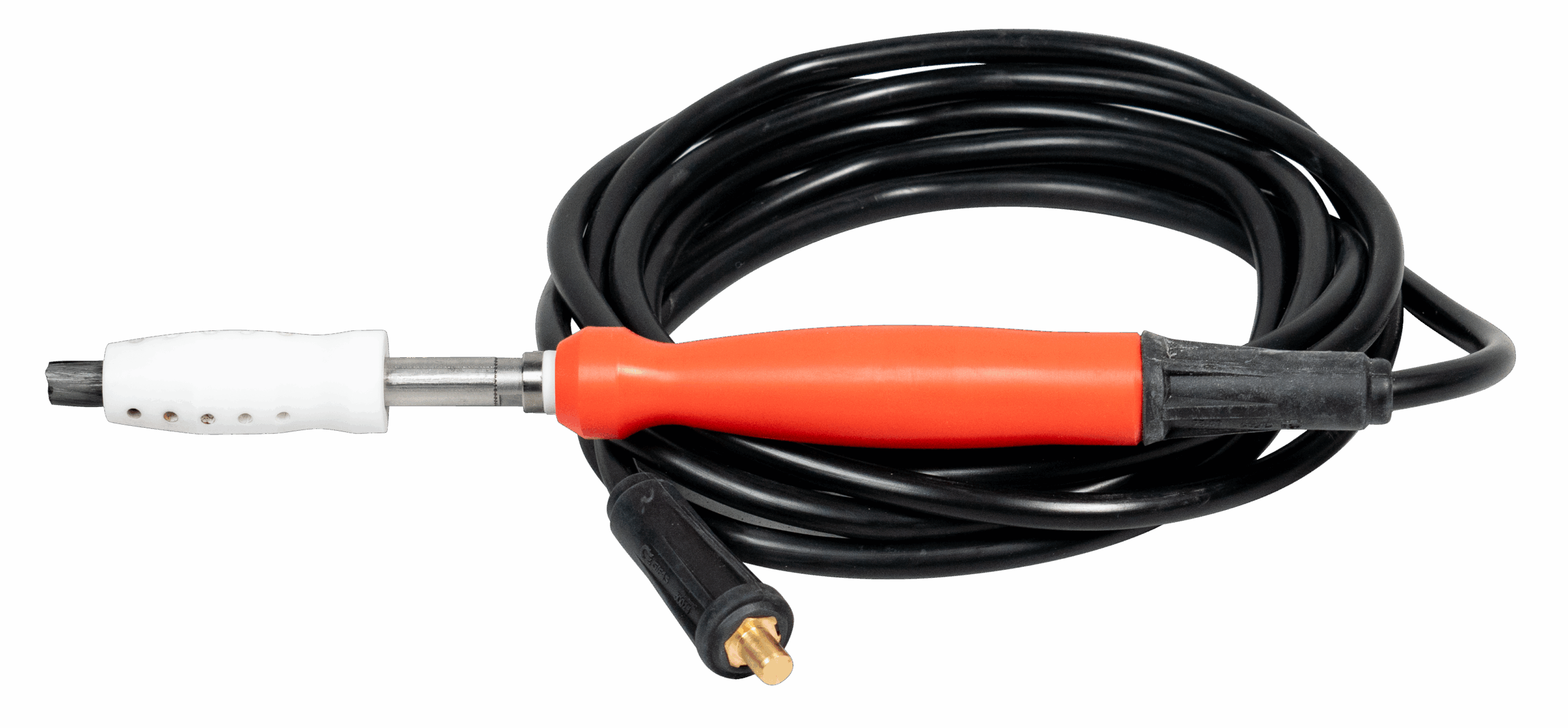

Carbon fiber brush Pro

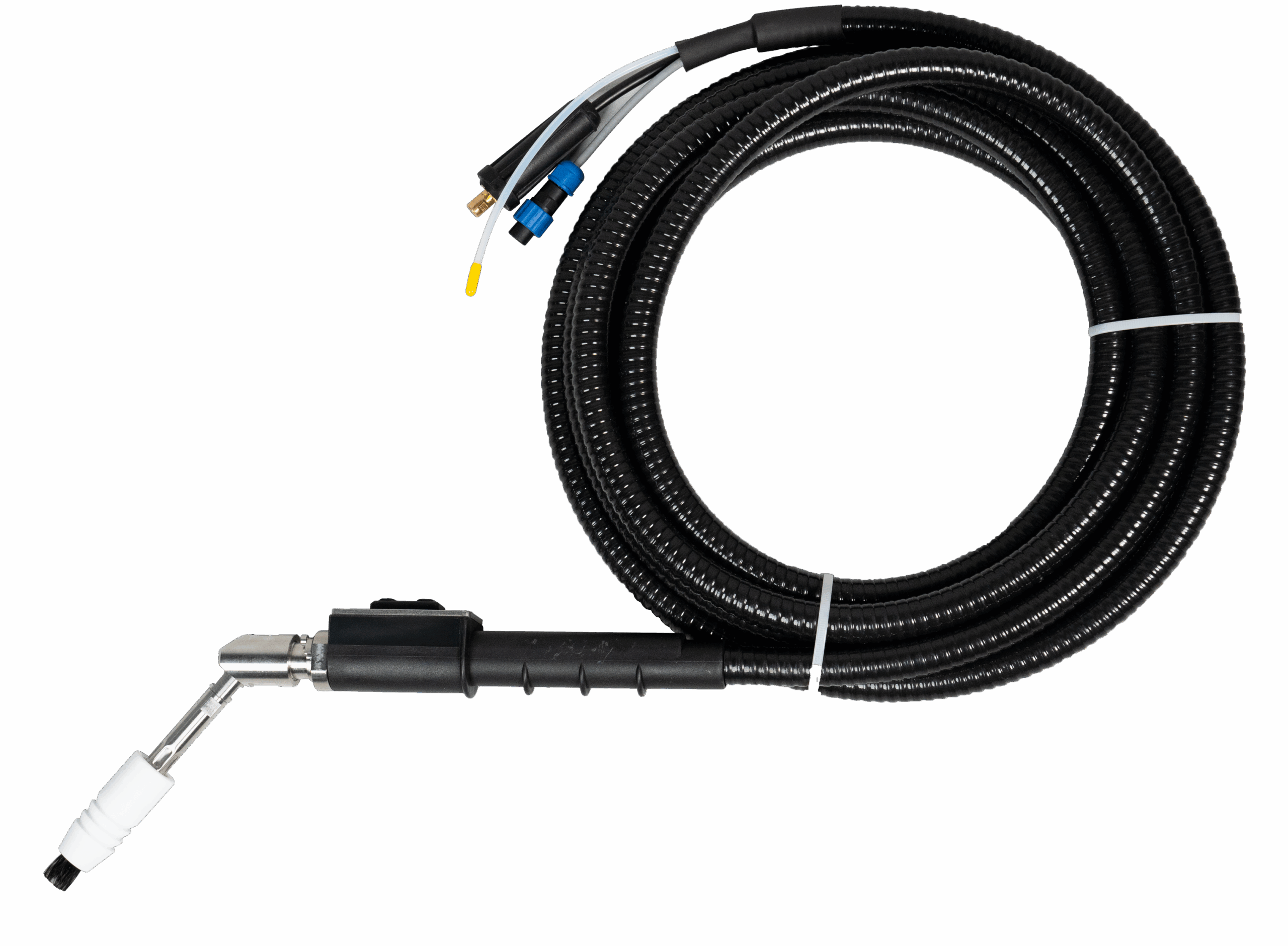

Automatic brush

Consumables

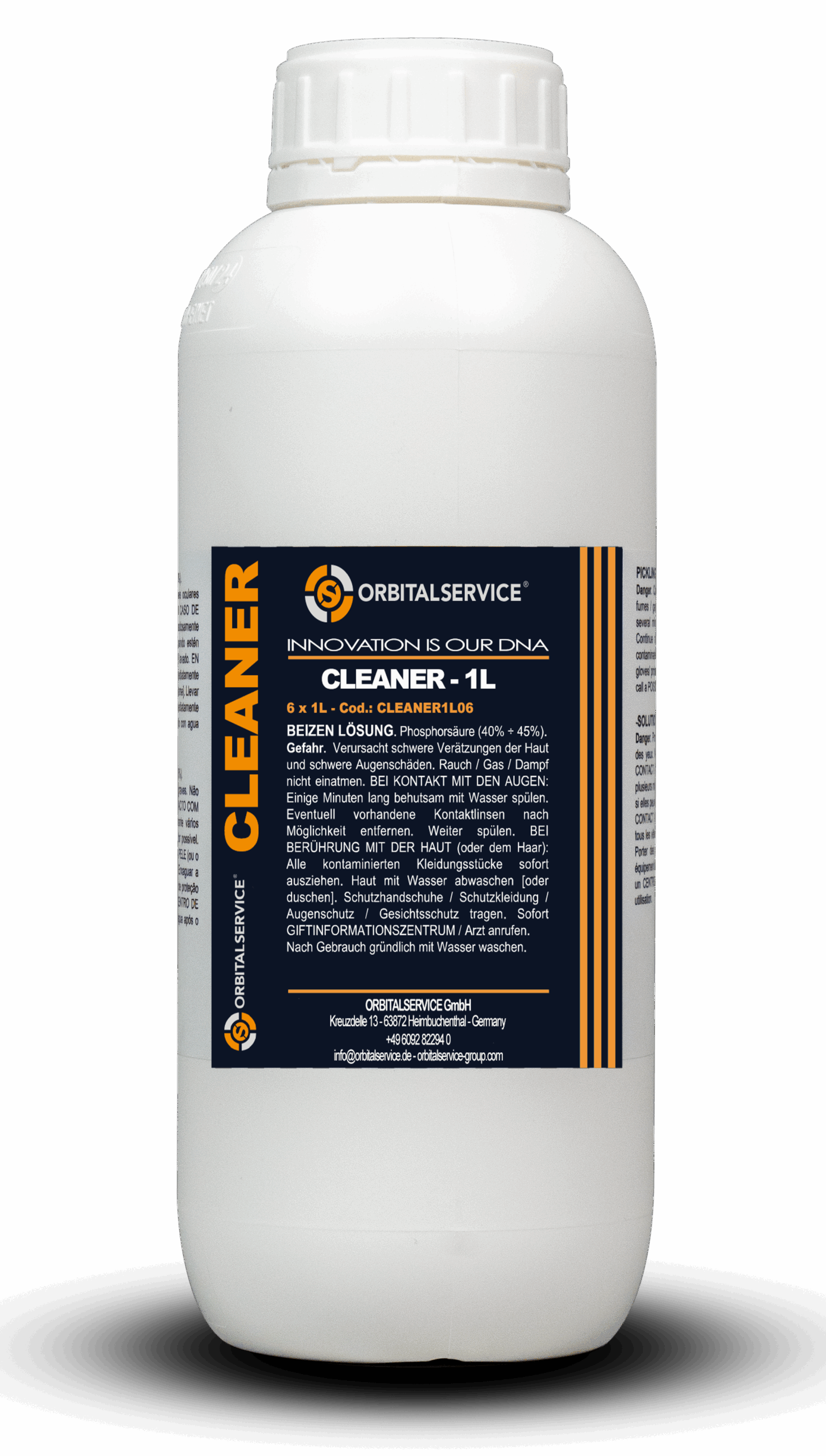

  • Liquid Cleaner 6 x 1L
    • Article number: SCCleaner6
  • Liquid Cleaner 5L
    • Article number: SCCleaner5
  • Liquid Polisher 6 x 1L
    • Article number: SCPolisher6
  • Liquid Polisher 5L
    • Article number: SCPolisher5
  • Liquid Neutralizer 6 x 1L
    • Article number: SCNeutralizer6
  • Liquid Neutralizer 5L
    • Article number: SCNeutralizer5
  • Carbon fiber brush 10 mm / 12 mm / 15 mm
  • Automatic carbon fiber brush

Do you have questions about our products or would you like an individual offer? Please do not hesitate to contact us.
